DTC U0001 Can Communication Malfunction
>>
Signal Waveform And Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform And Data

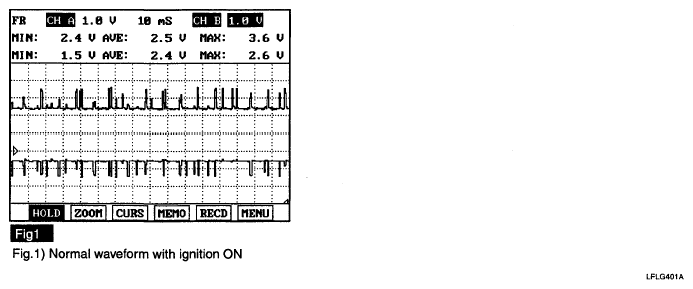

Fig 1: Signal Waveform With Ignition ON
Courtesy of HYUNDAI MOTOR CO.
