Signal Waveform And Data
DTC P0101 SIGNAL WAVEFORM AND DATA REFERENCE
| Test Condition | MASS AIR FLOW (V) | Scan Tool Screen |
|---|---|---|
| Normal value with ignition "ON" & Engine "OFF" | Approx. 0.1 | - |
| Normal value with idle after warm up | Approx. 0.9~1.3 | - |
| 2000RPM without load | Approx. 1.6~2.0 | - |

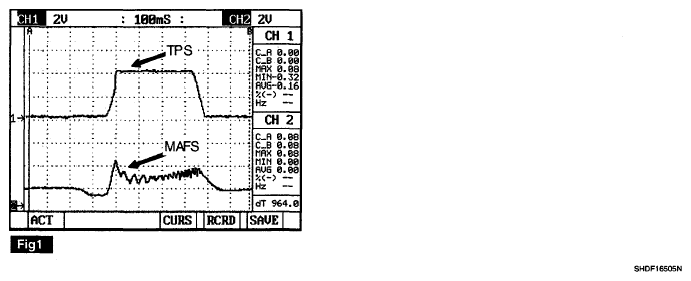

| Normal value with accelerating and decelerating after starting | The MAFS and TPS signals increase at the same time with accelerating and decrease with releasing accelerator or pedal | Fig 1 |
