Windshield Washer Motor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

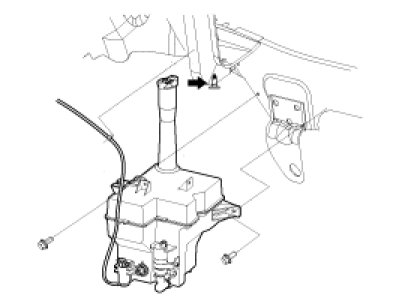

3. Remove the washer hose and the washer motor connector (A).
4. Remove the 3 bolts.




5. Push the washer reservoir to the direction of arrow on the picture.
6. Installation is the reverse of removal.

NOTE:
- Before installing the pump motor, check the filter for foreign material or contamination. If necessary, clean the filter into the pump motor with water.
