Intake Manifold

Intake Manifold

Install intake manifold and new gasket on the cylinder head.

Tightening torque
1st 3.9 - 5.9 Nm (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
2st 18.62 - 23.52 Nm (1.9 - 2.4 kgf.m, 13.74 - 17.36 lb-ft)
3st Repeat 2nd step twice or move.

NOTE:
Be careful of the installation direction.

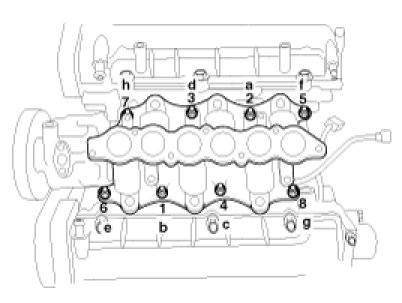

a - h : 1st step order
1 - 8 : 2nd step order
