Engine Control Module





Powertrain Control Module (PCM)

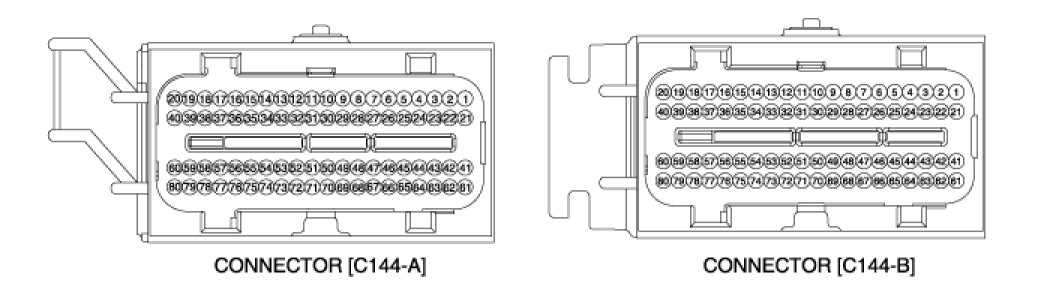

1. PCM Harness Connector

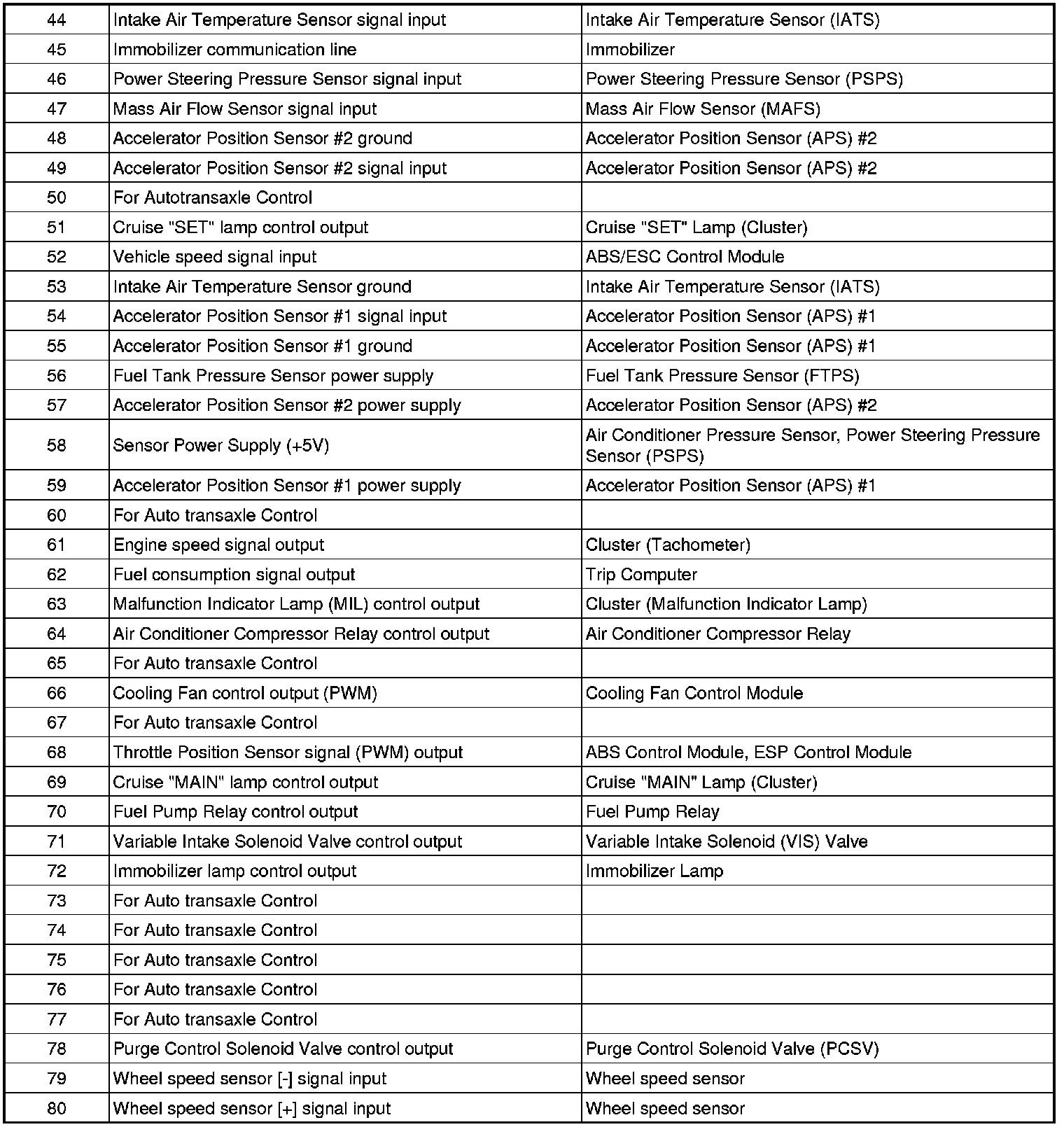

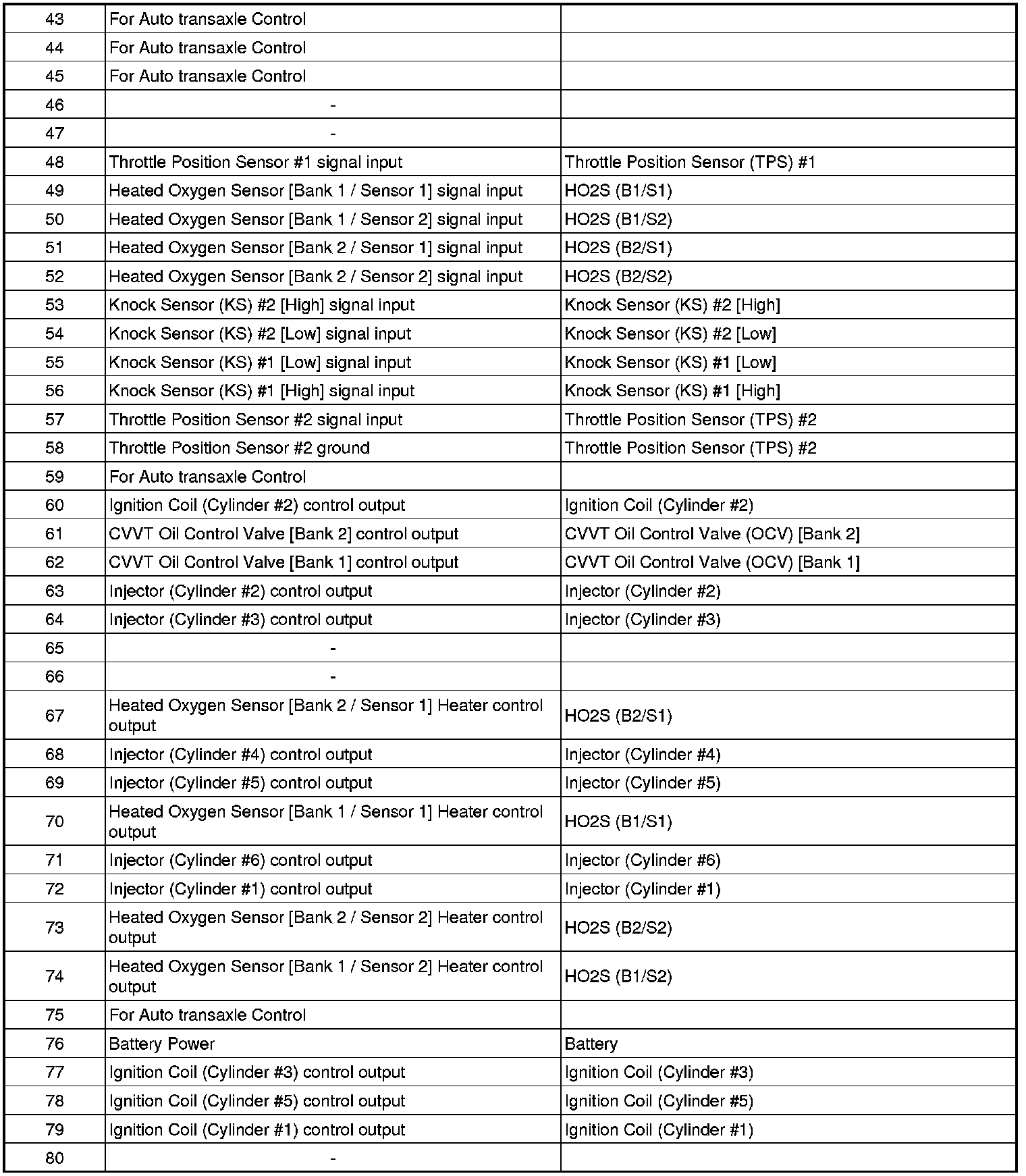

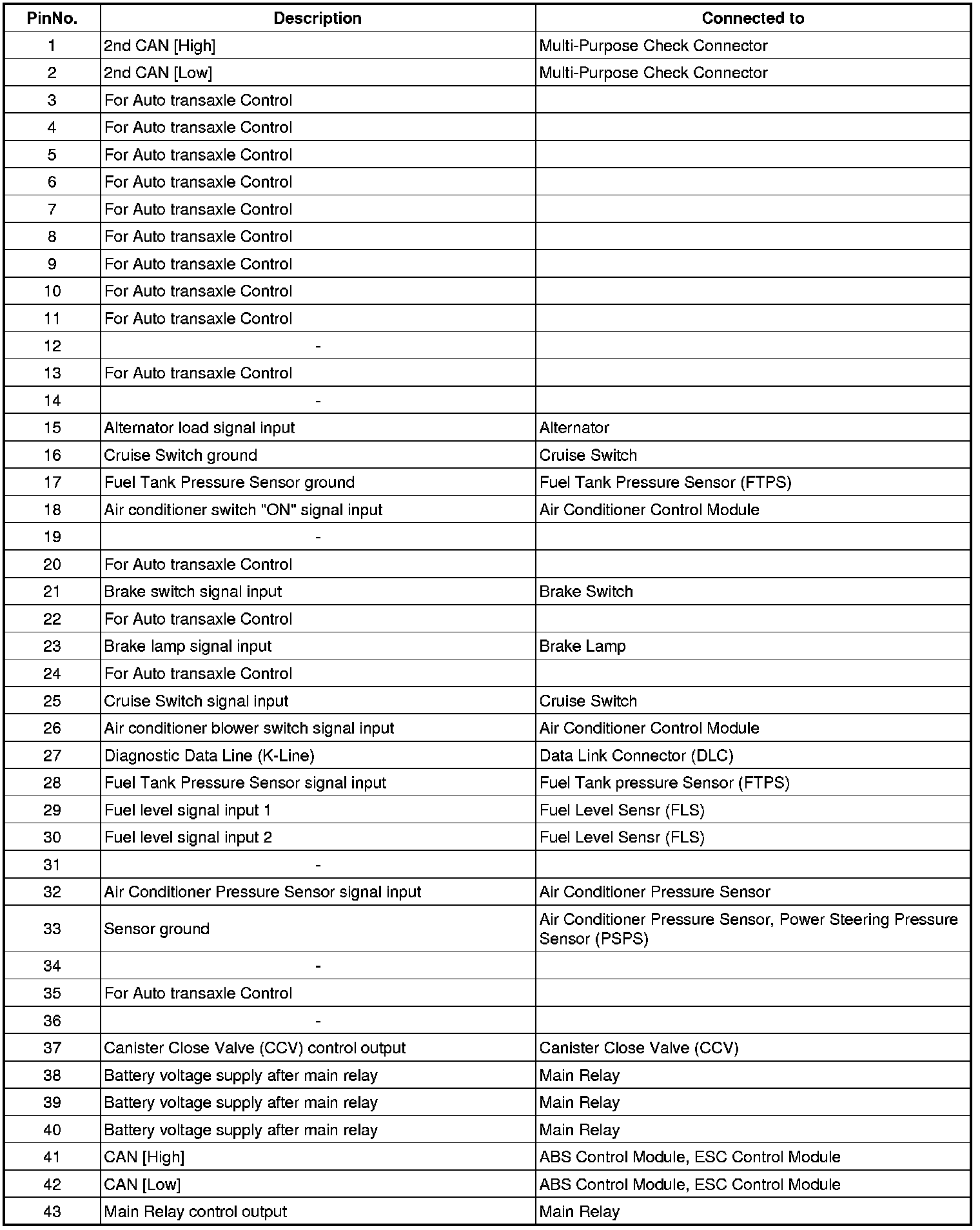

2. PCM Terminal Function
Connector [C144-A]









Connector [C144-B]

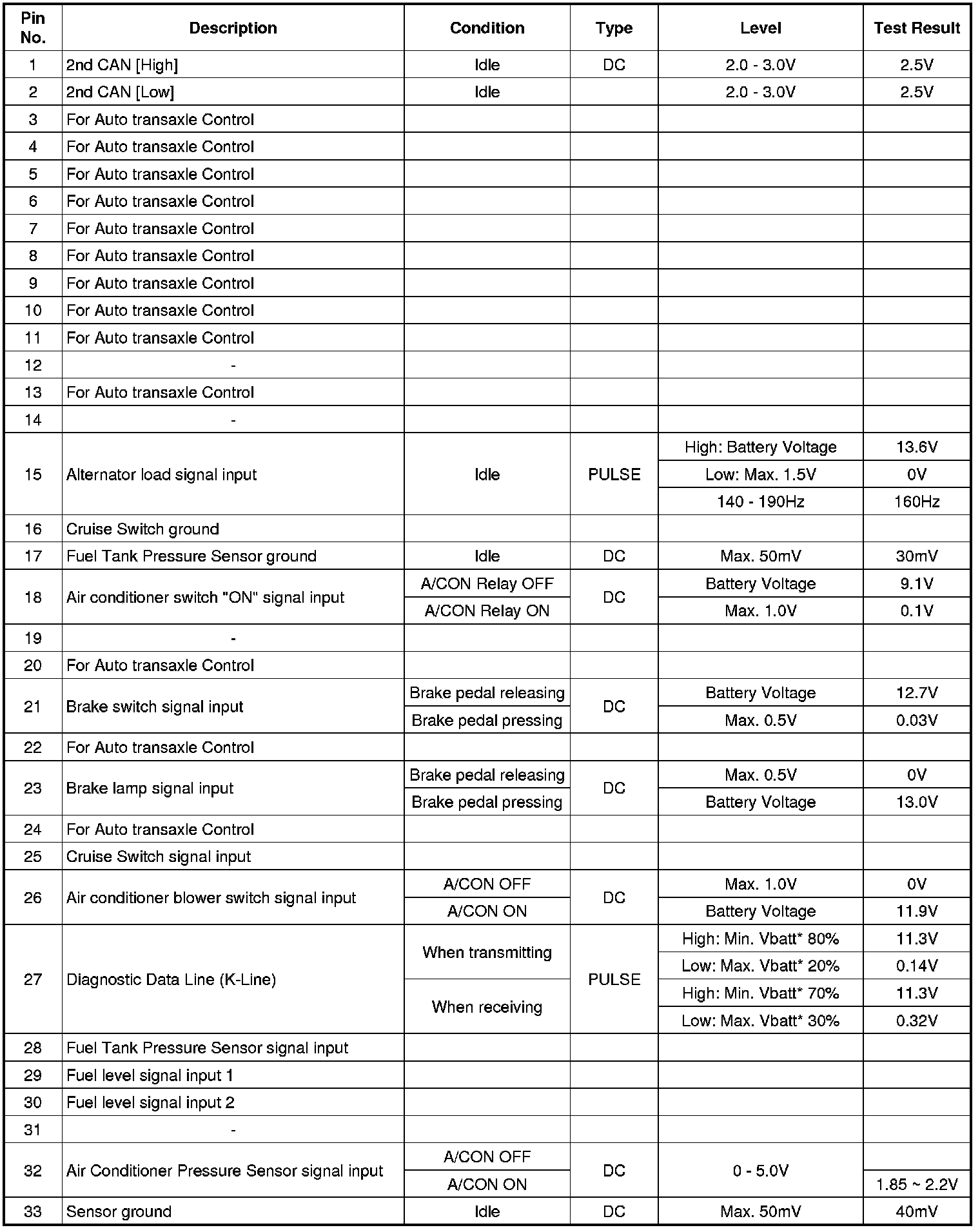

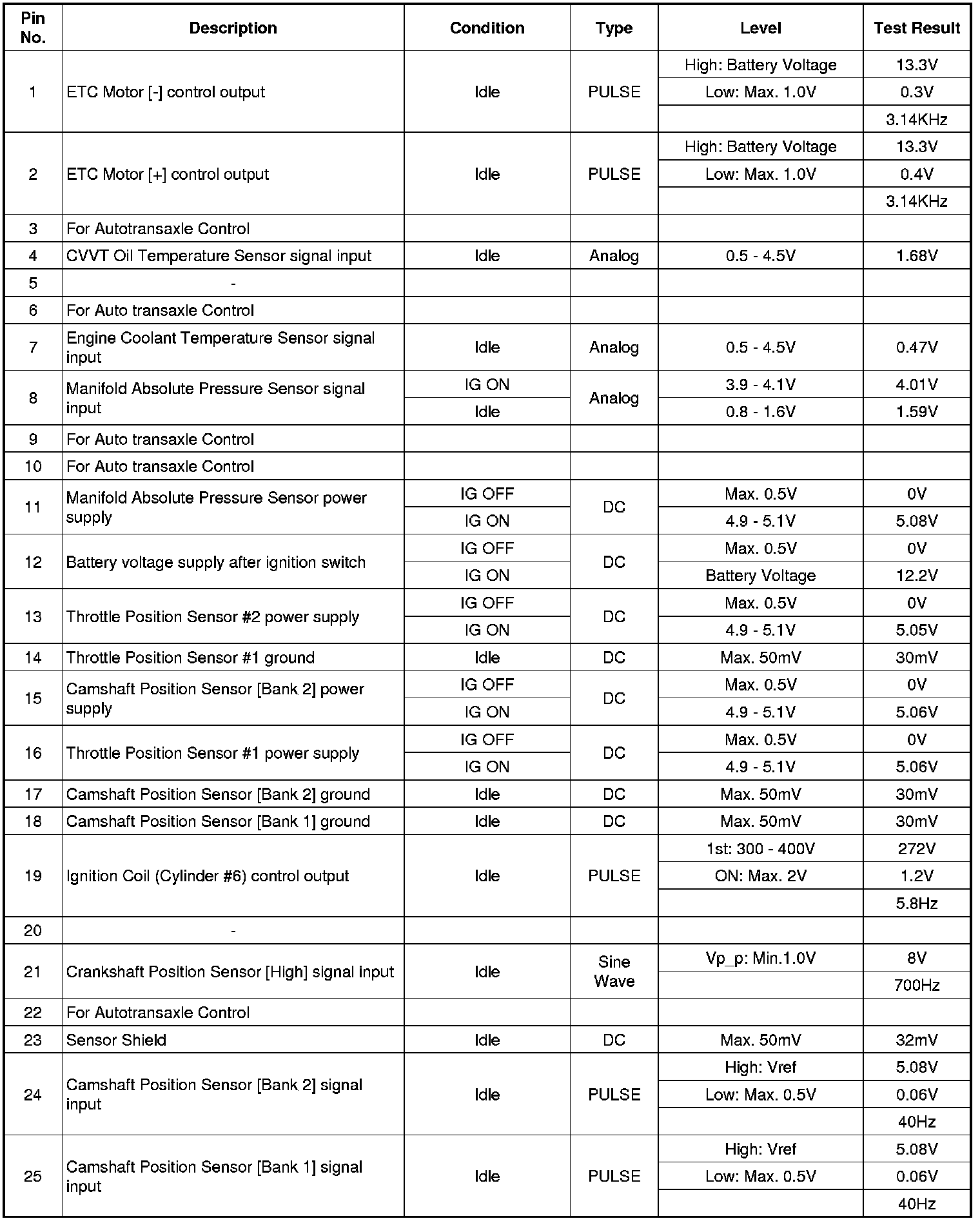

3. PCM Terminal Input/output Signal

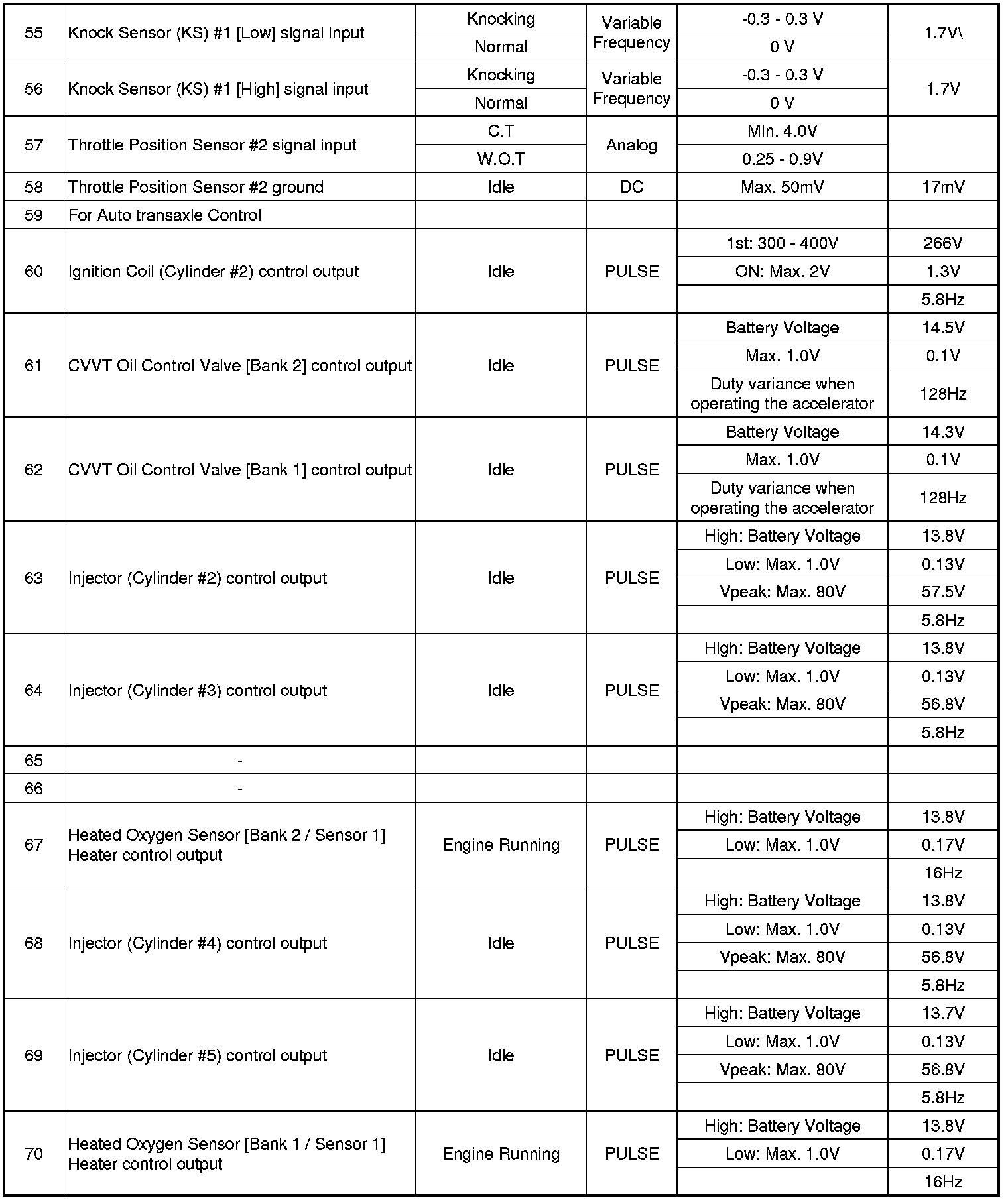

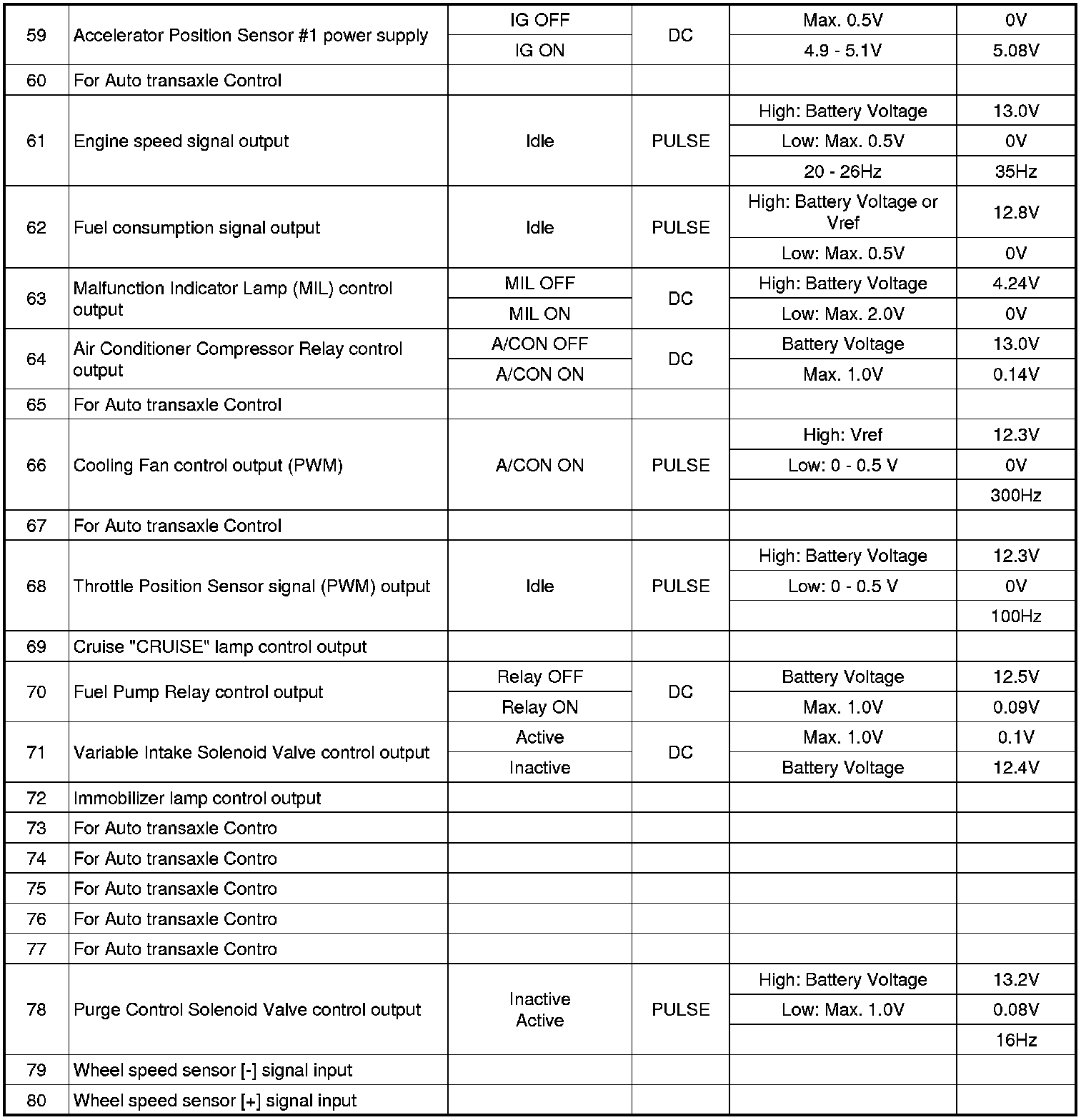

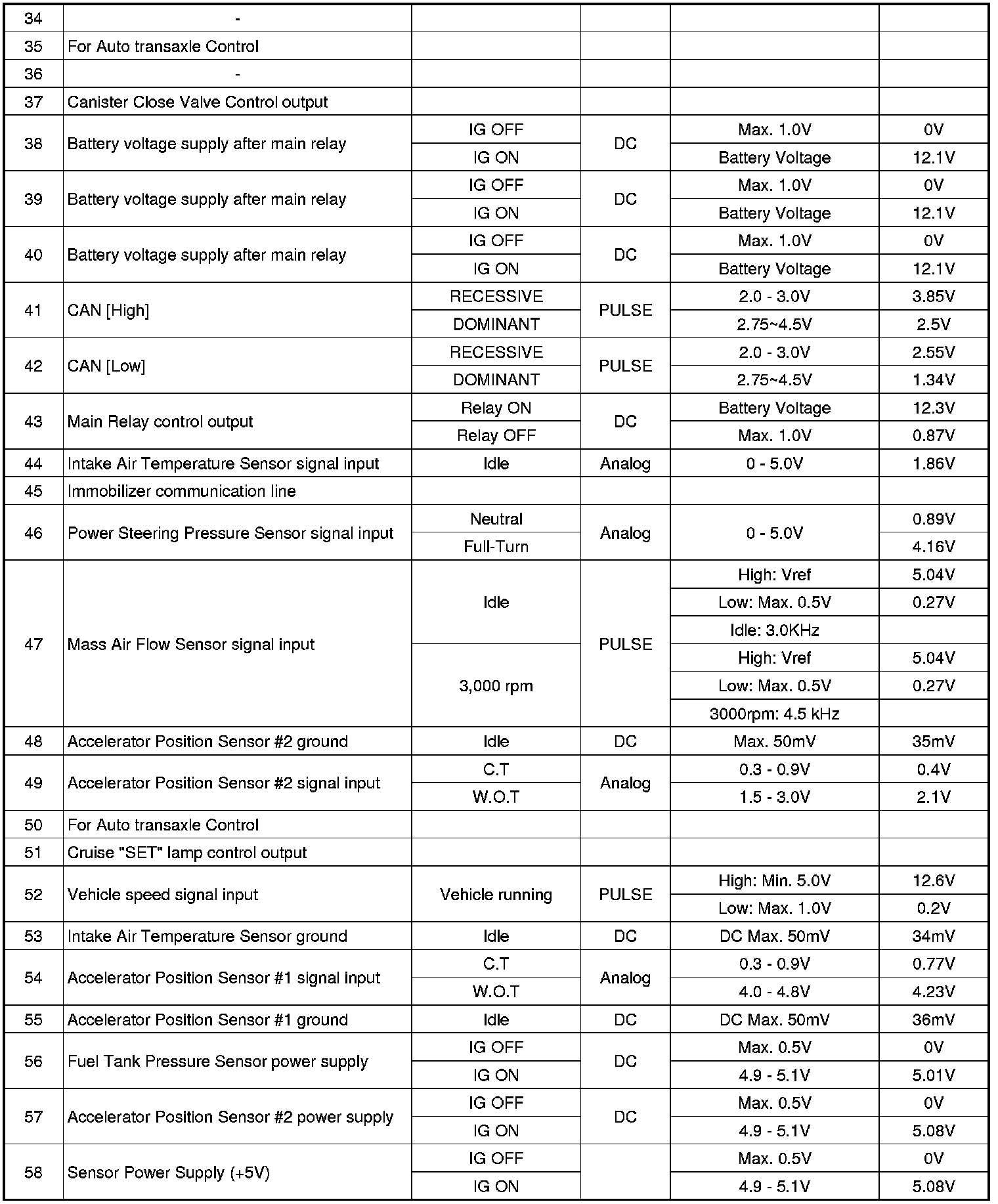

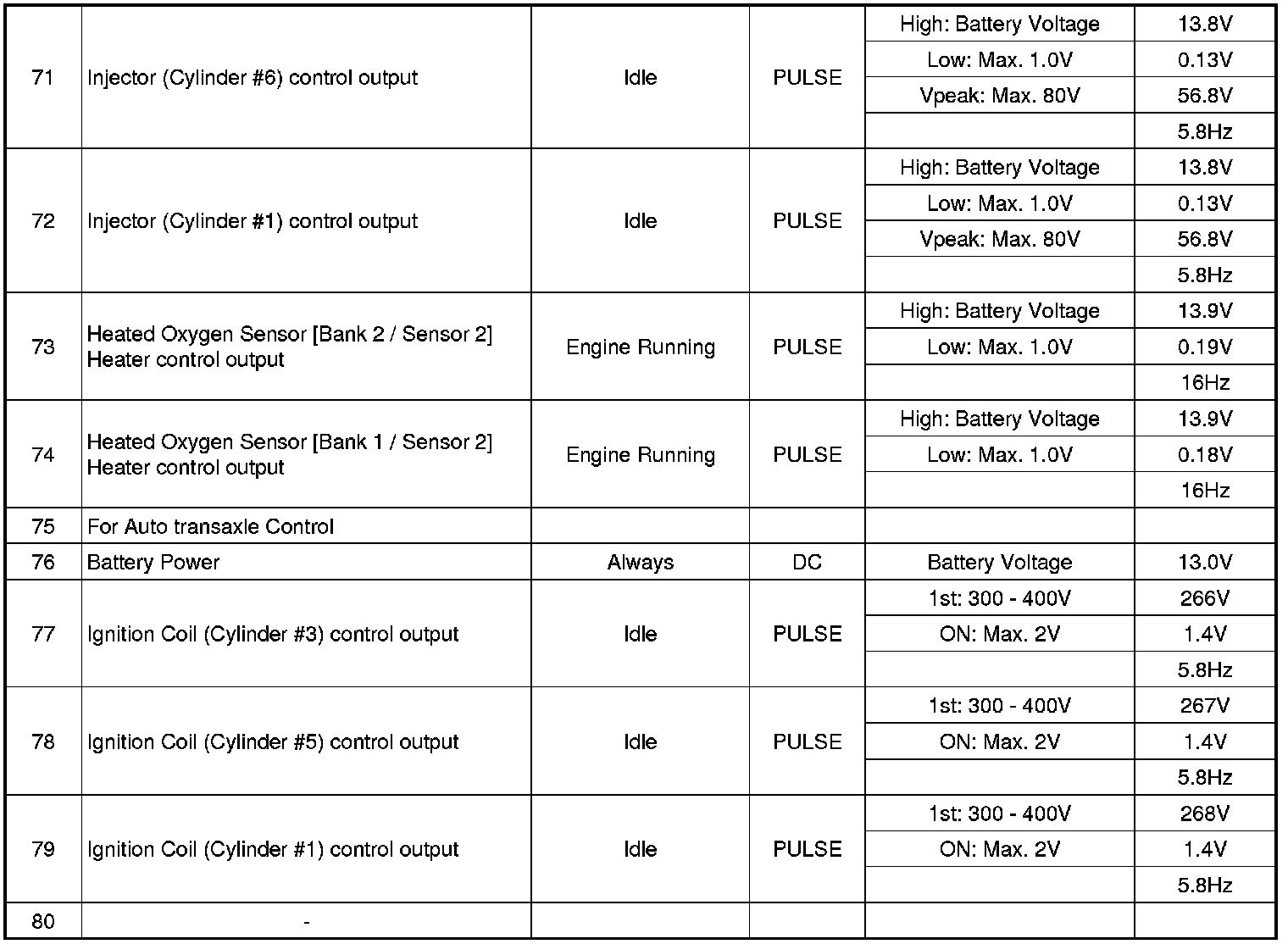

Connector [C144-A]

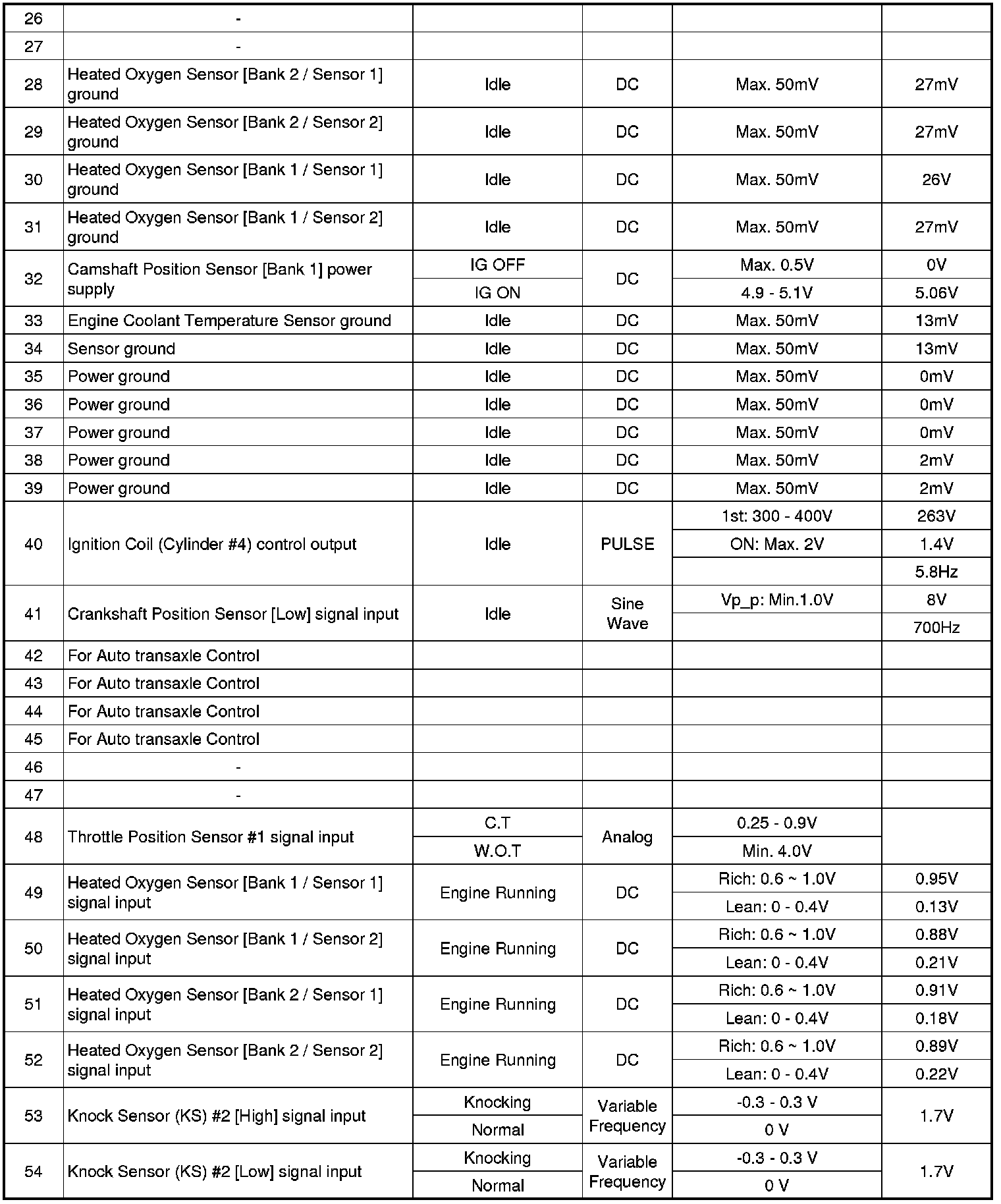

CONNECTOR [C144-B]

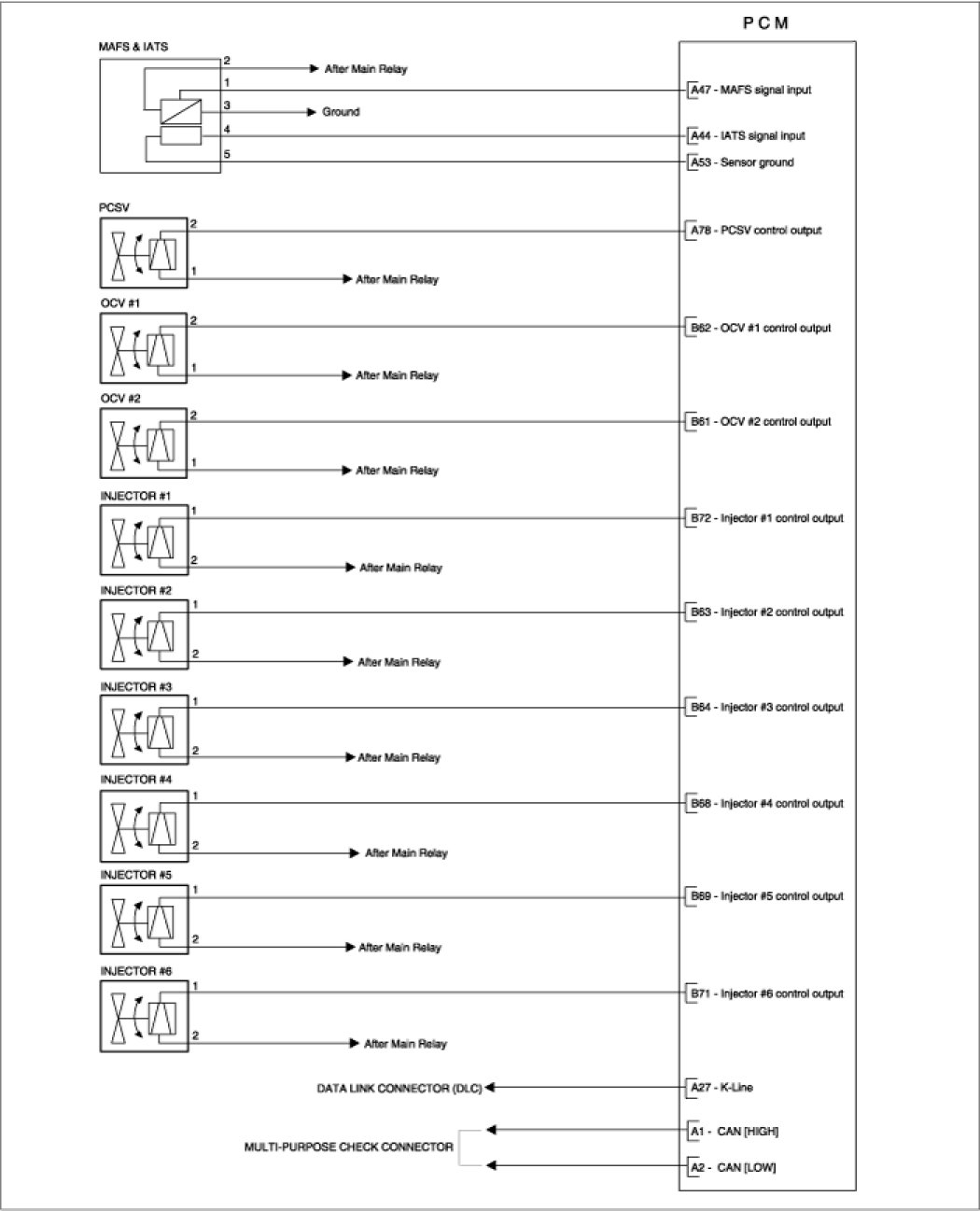

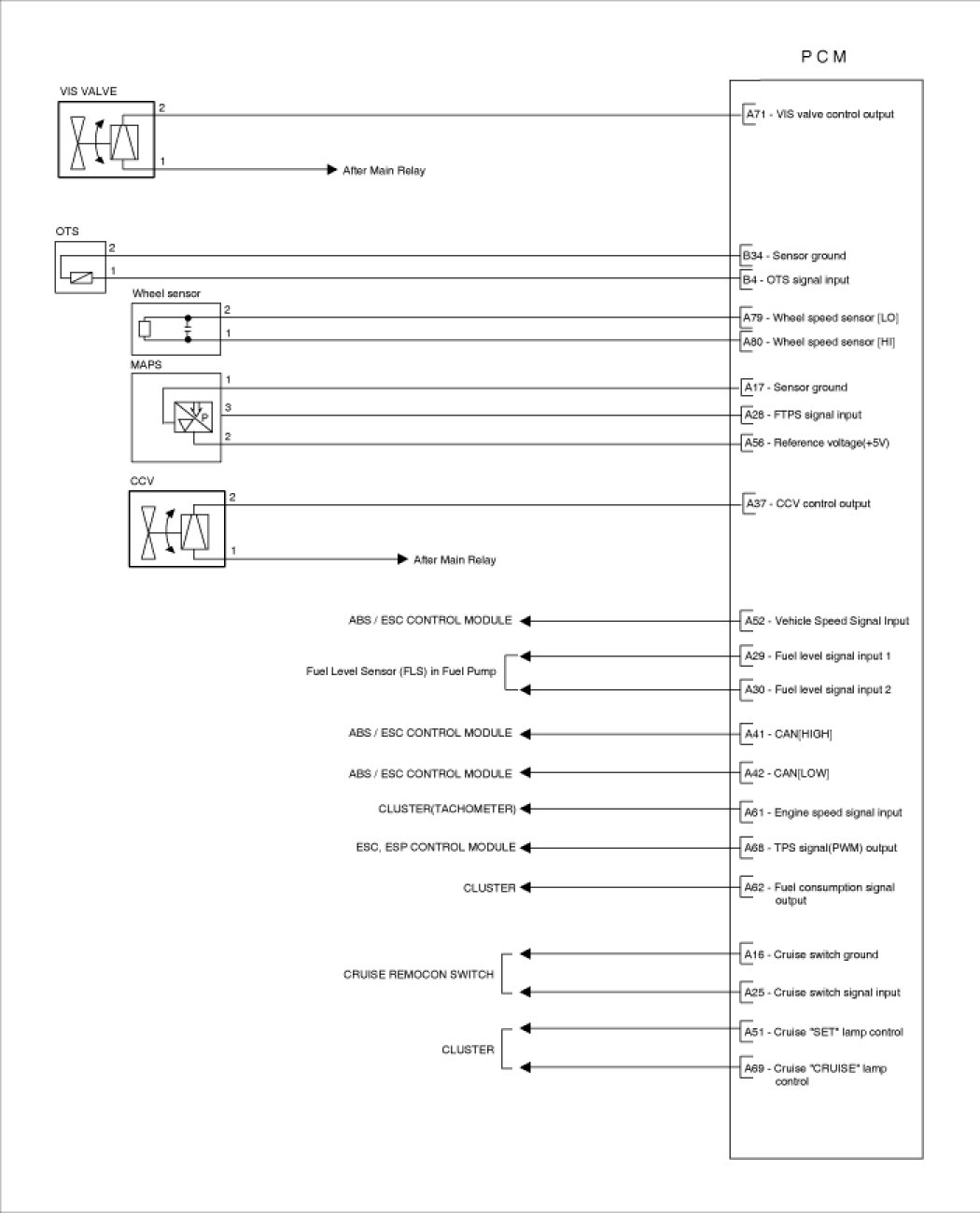

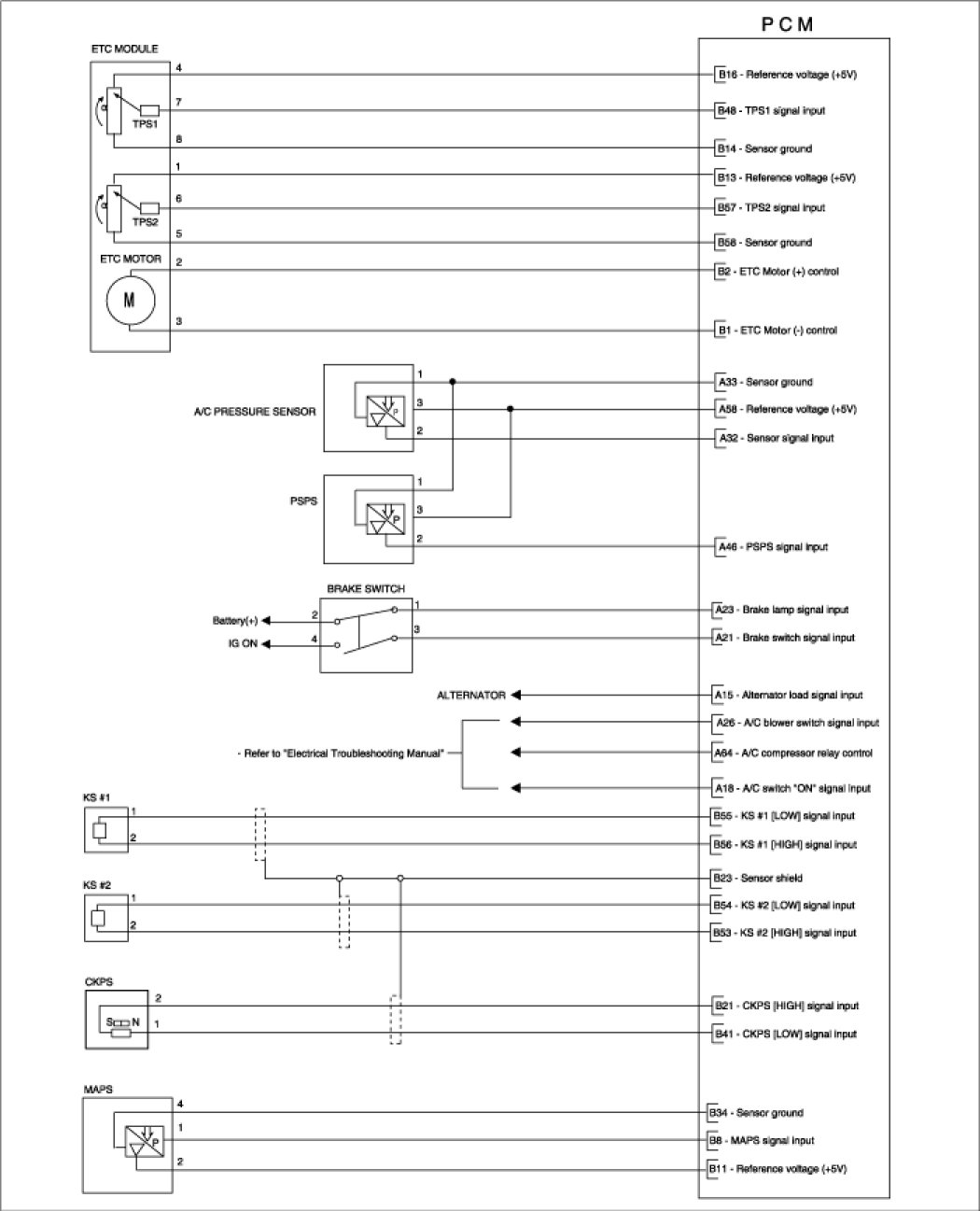

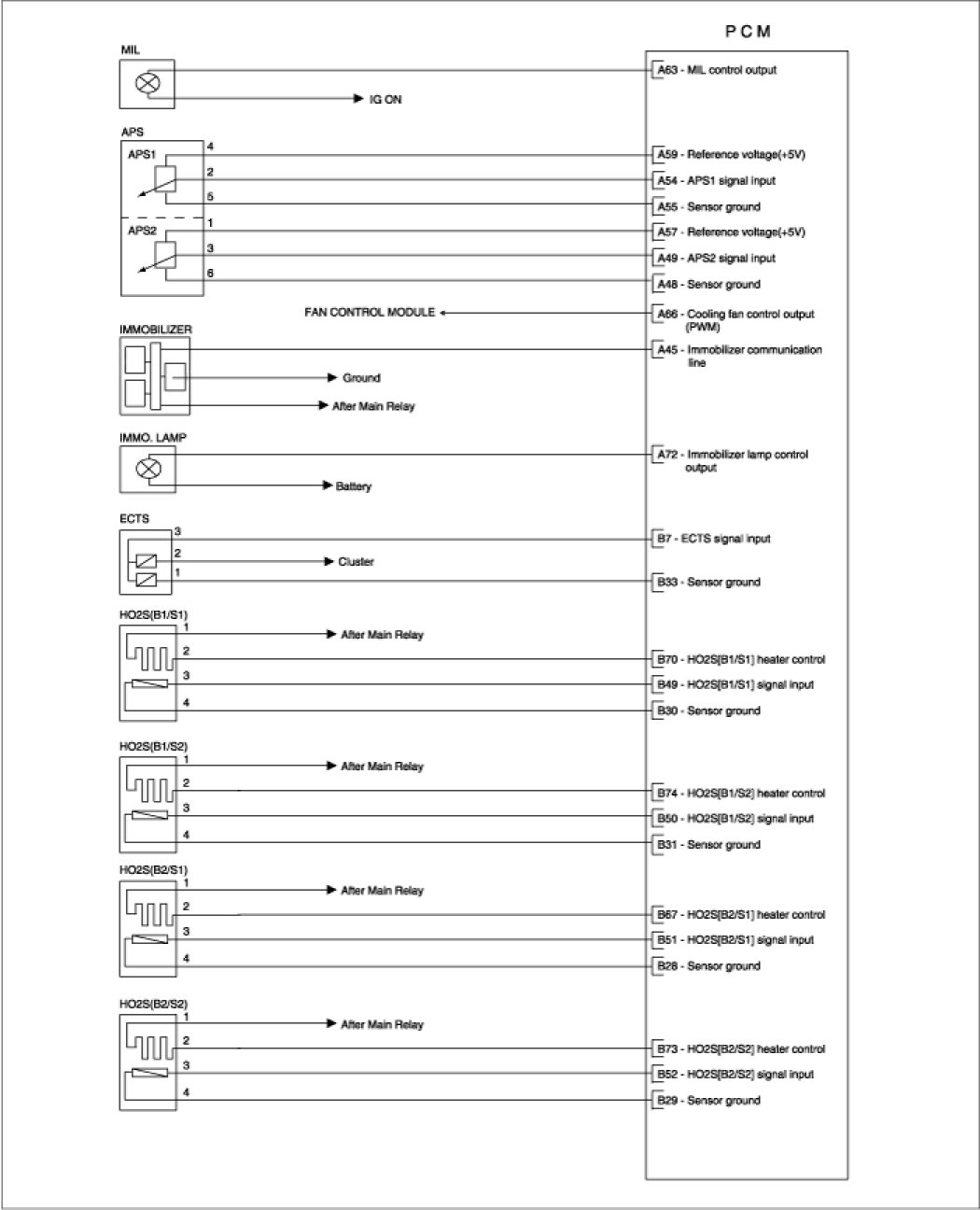

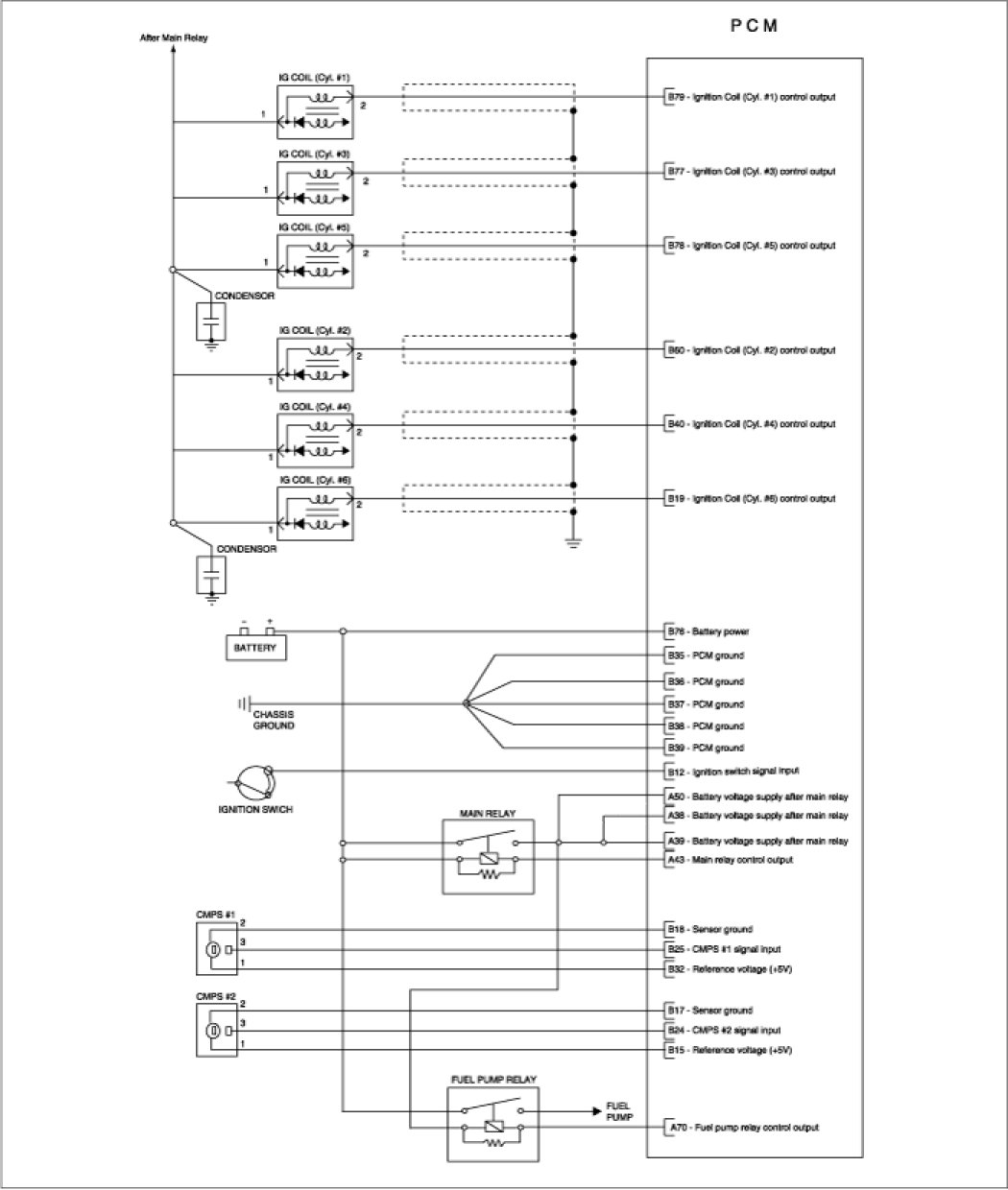

Circuit Diagram
