Hi-Scan (Pro) Check





HI-scan (Pro) Check
1. Turn the ignition switch OFF.

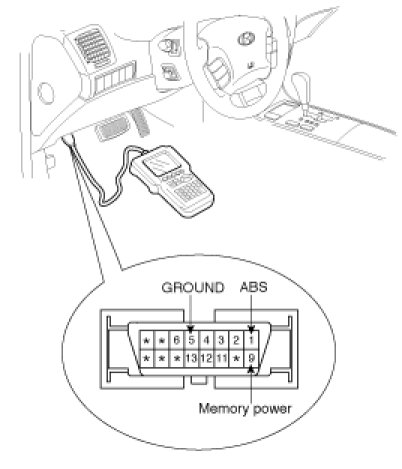

2. Connector the Hi-scan(pro) to the 16P data link connector located the driver's side kick panel.




3. Turn the ignition switch ON.
4. Check for diagnostic trouble code using the Hi-scan (pro)
5. After completion trouble of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-scan(pro).
6. Disconnect the Hi-scan(pro) from the 16P data link connector.
