Engine Control Module: Diagrams





Powertrain Control Module (PCM)

1. PCM Harness Connector




2. PCM Terminal Function

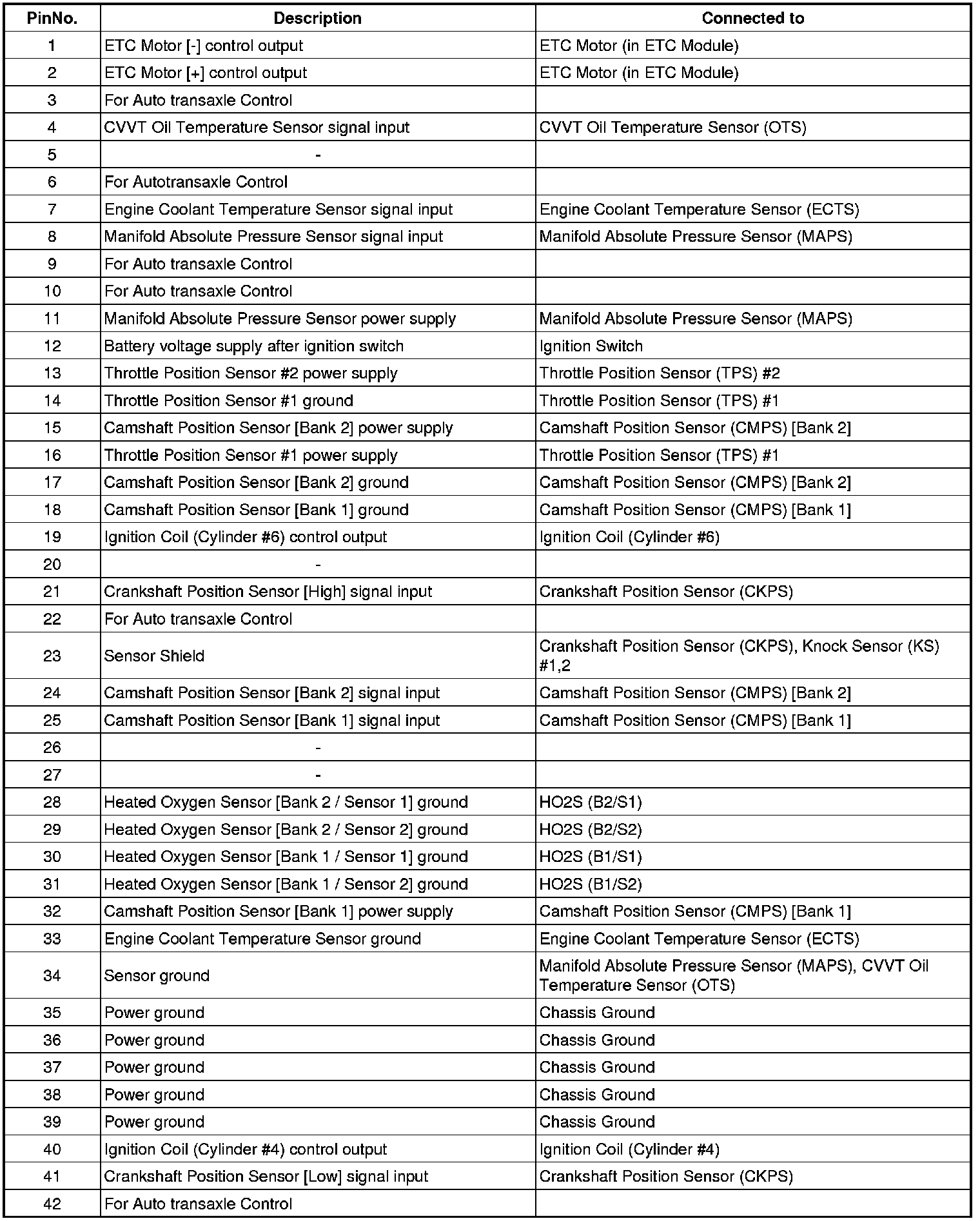

Connector [C144-A]

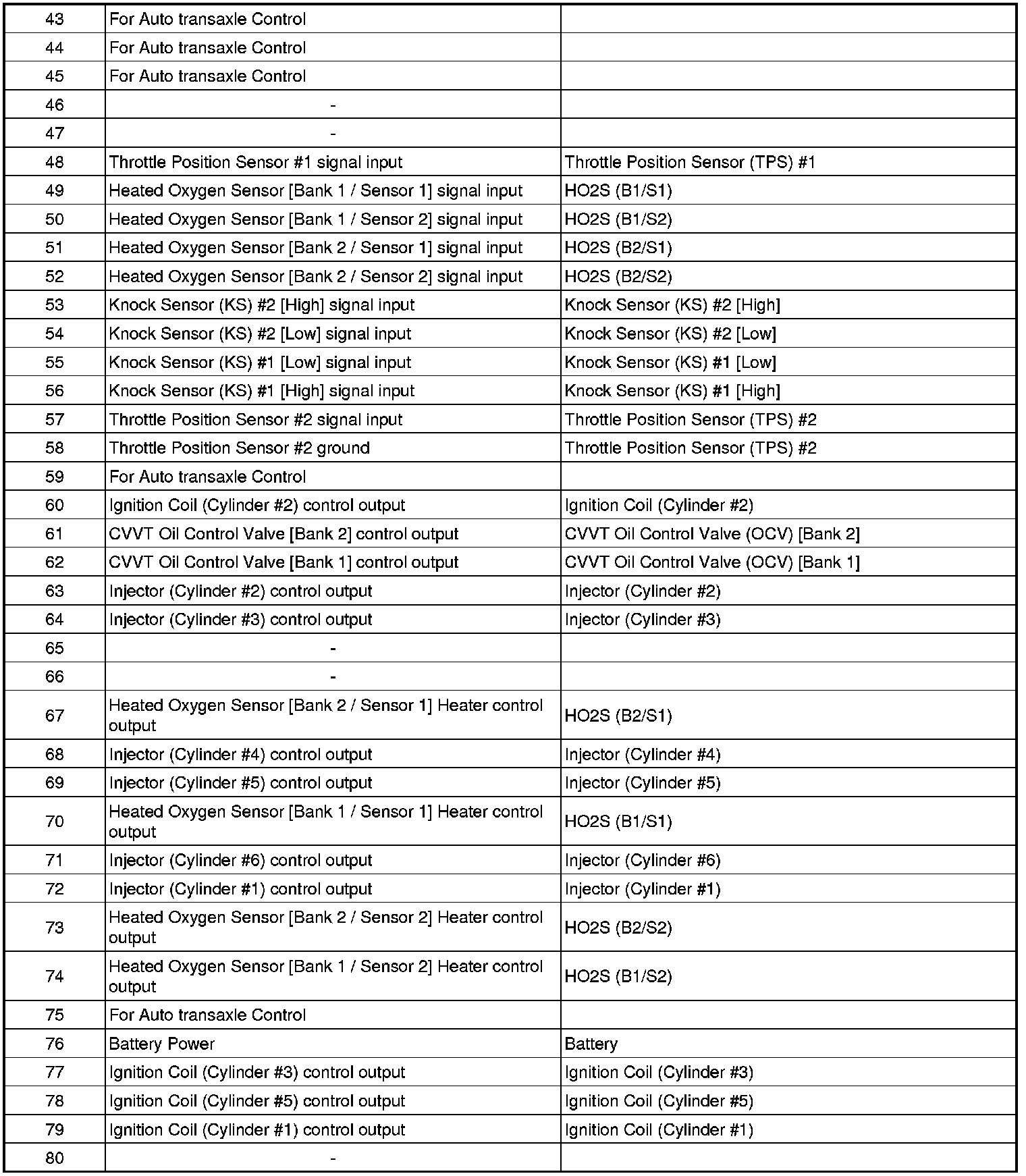

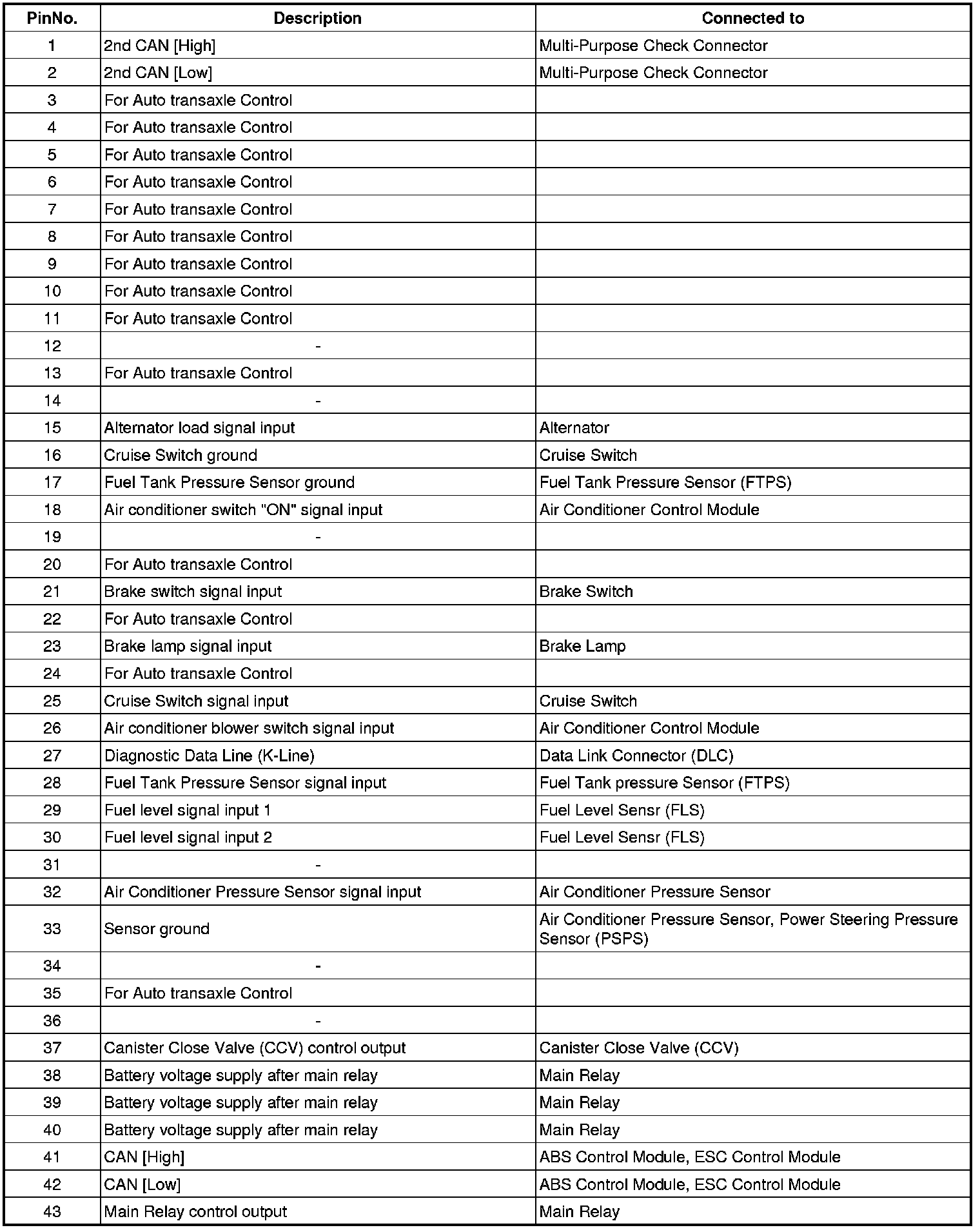

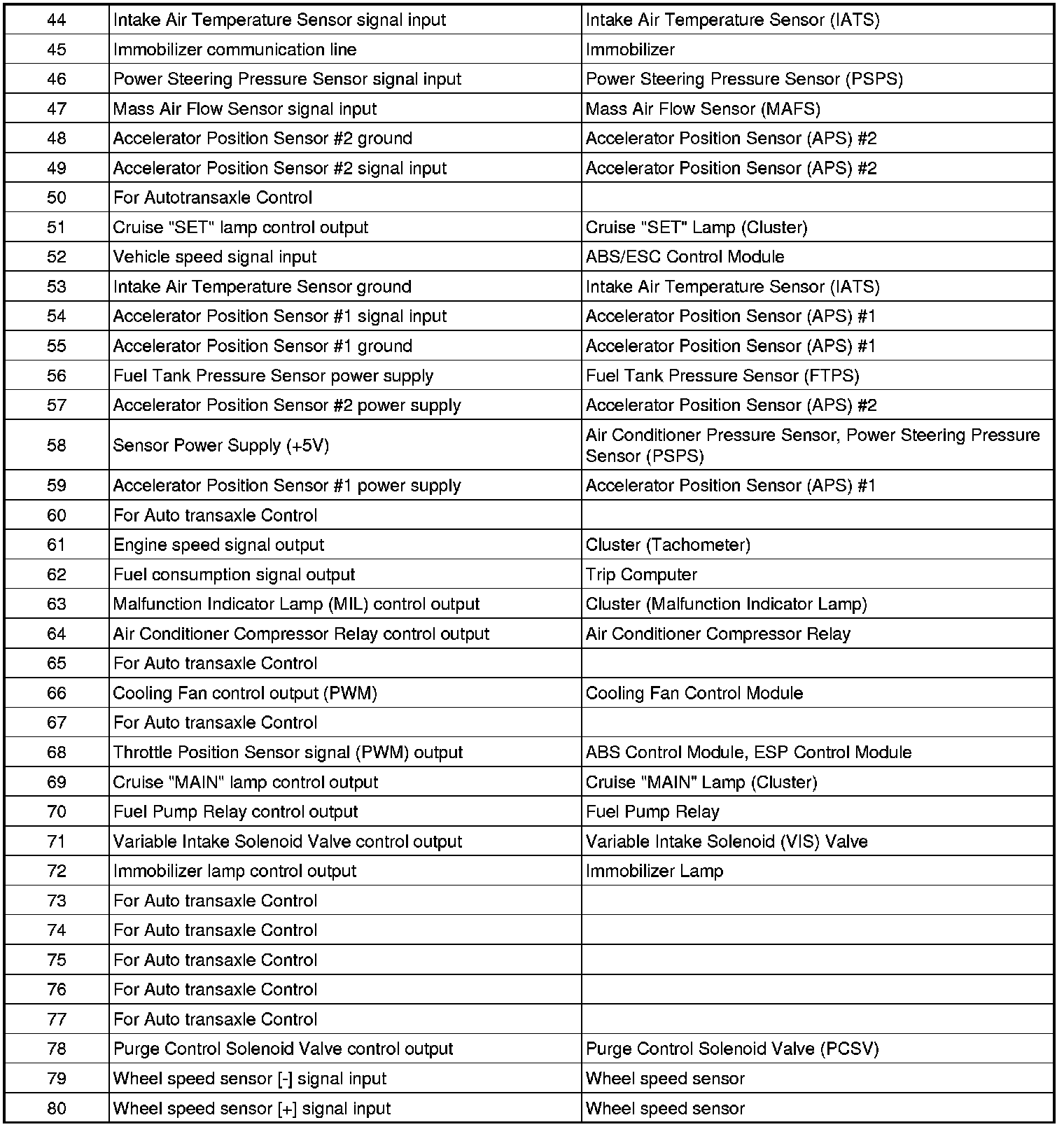

Connector [C144-B]









3. PCM Terminal Input/output Signal

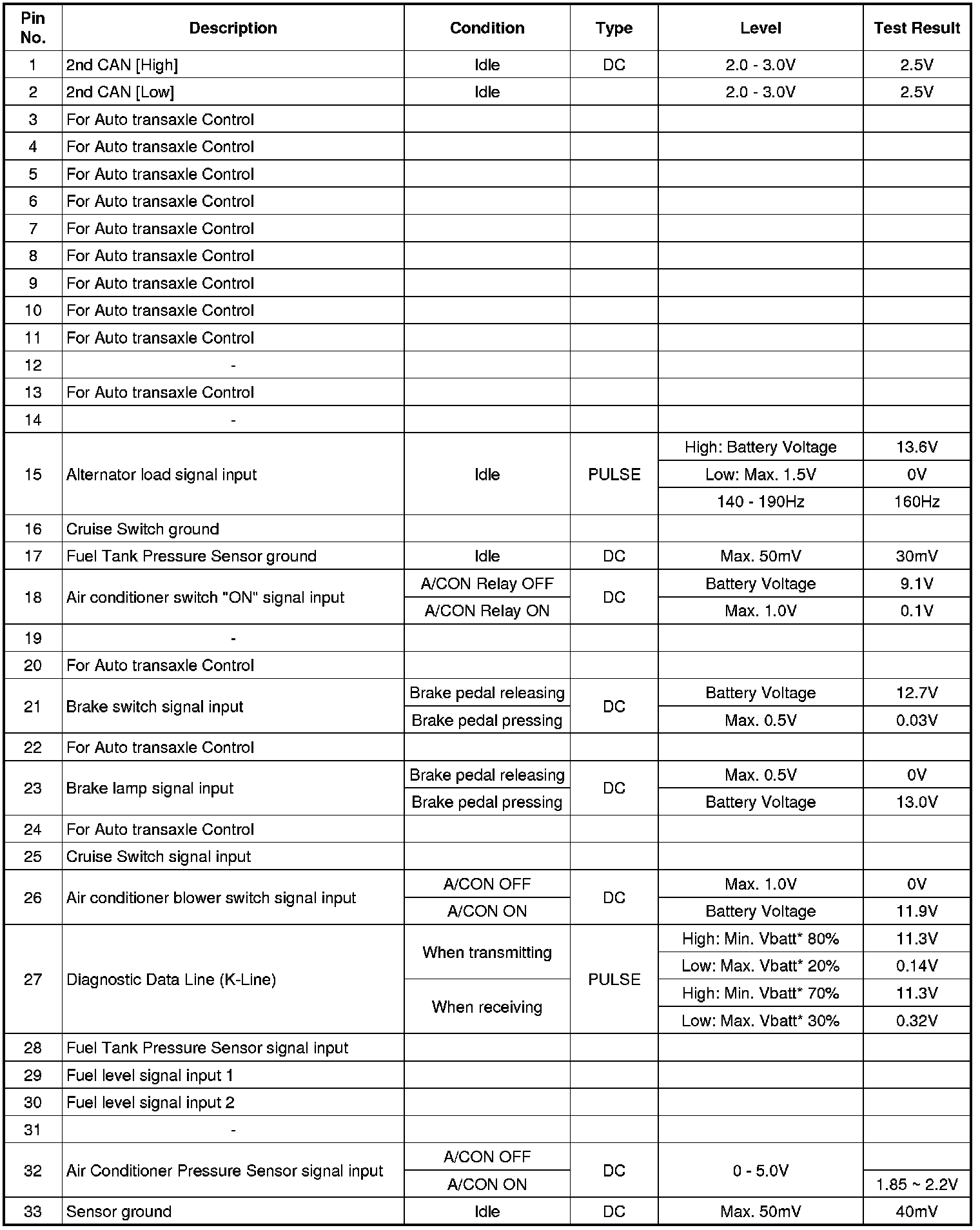

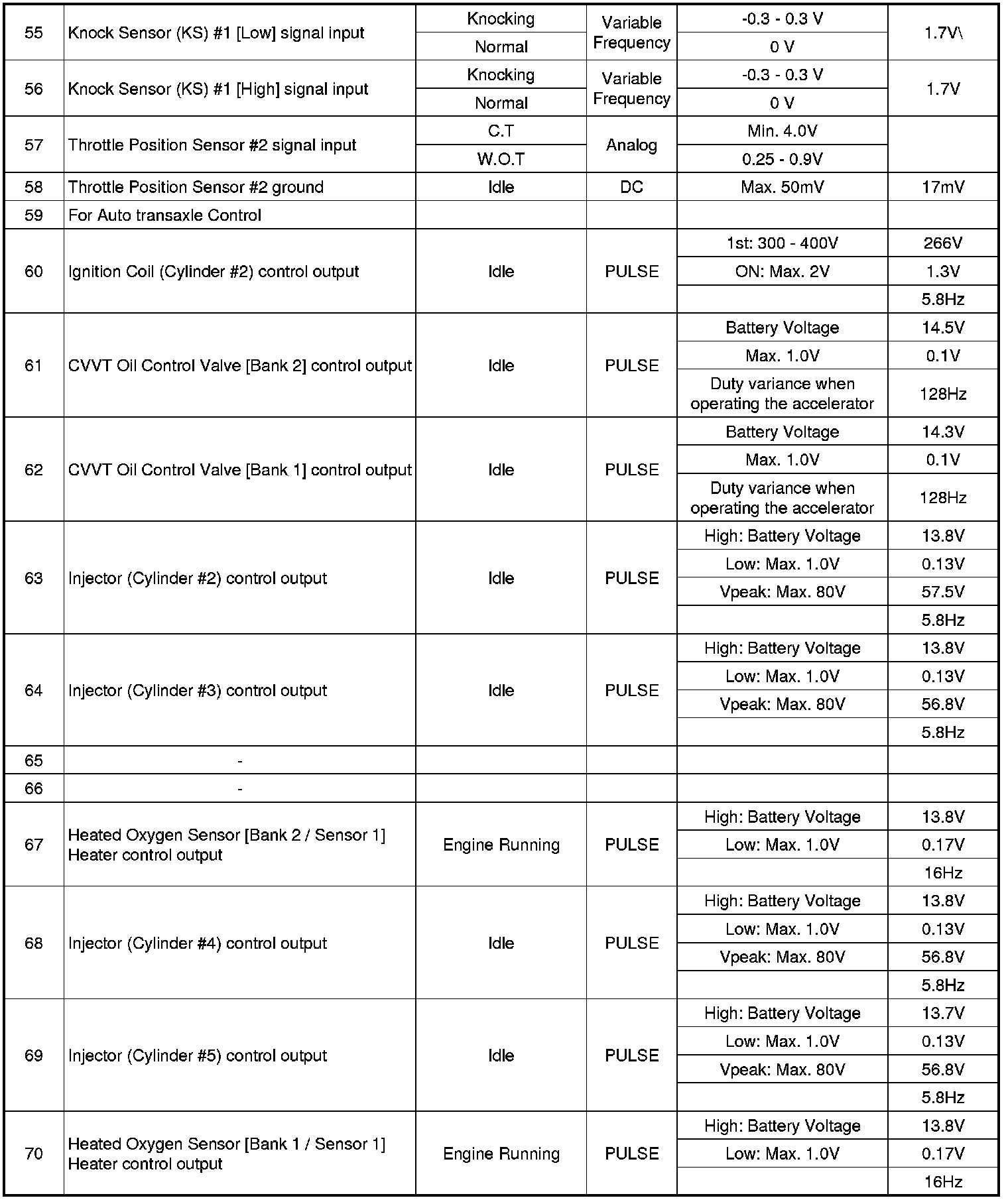

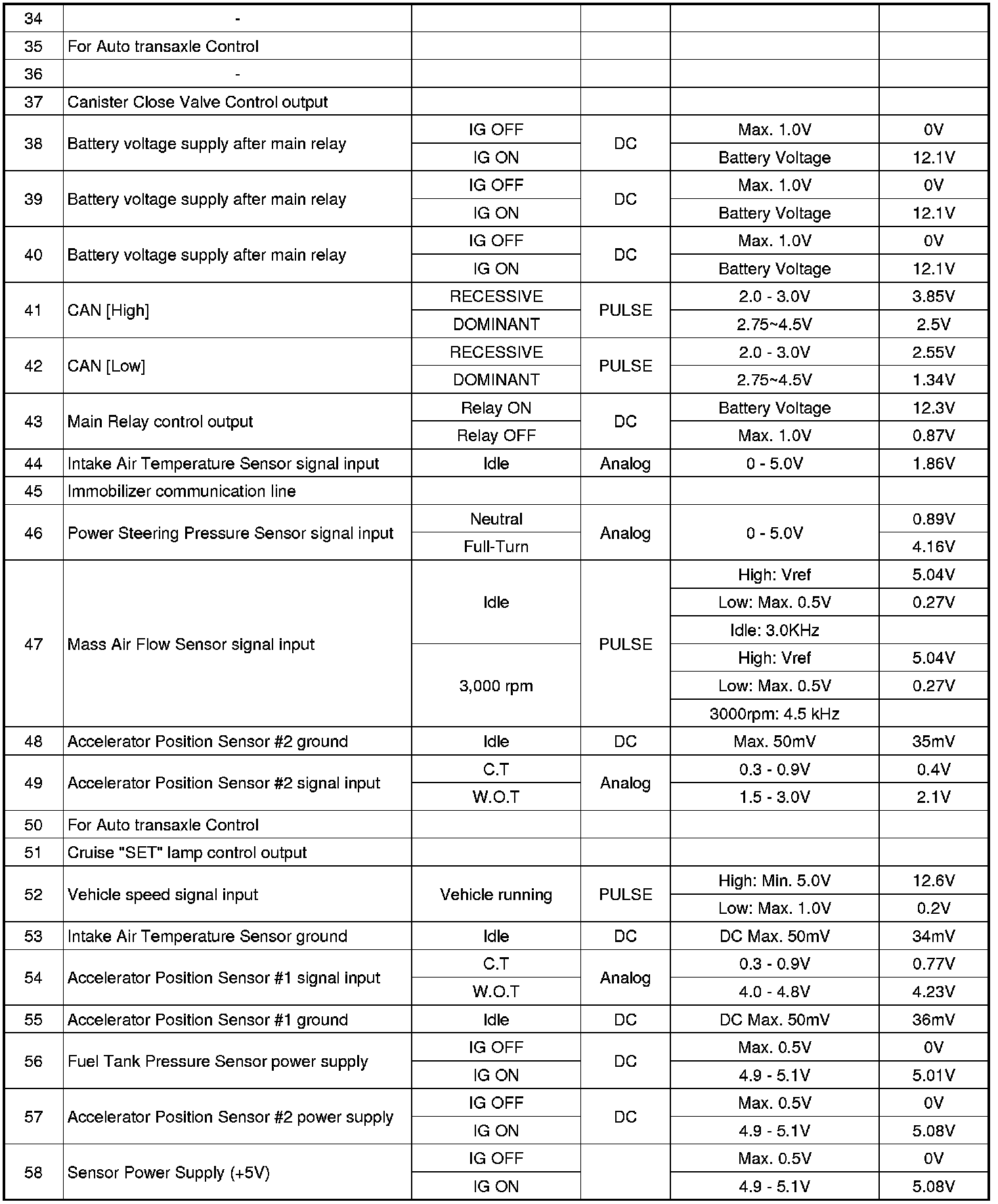

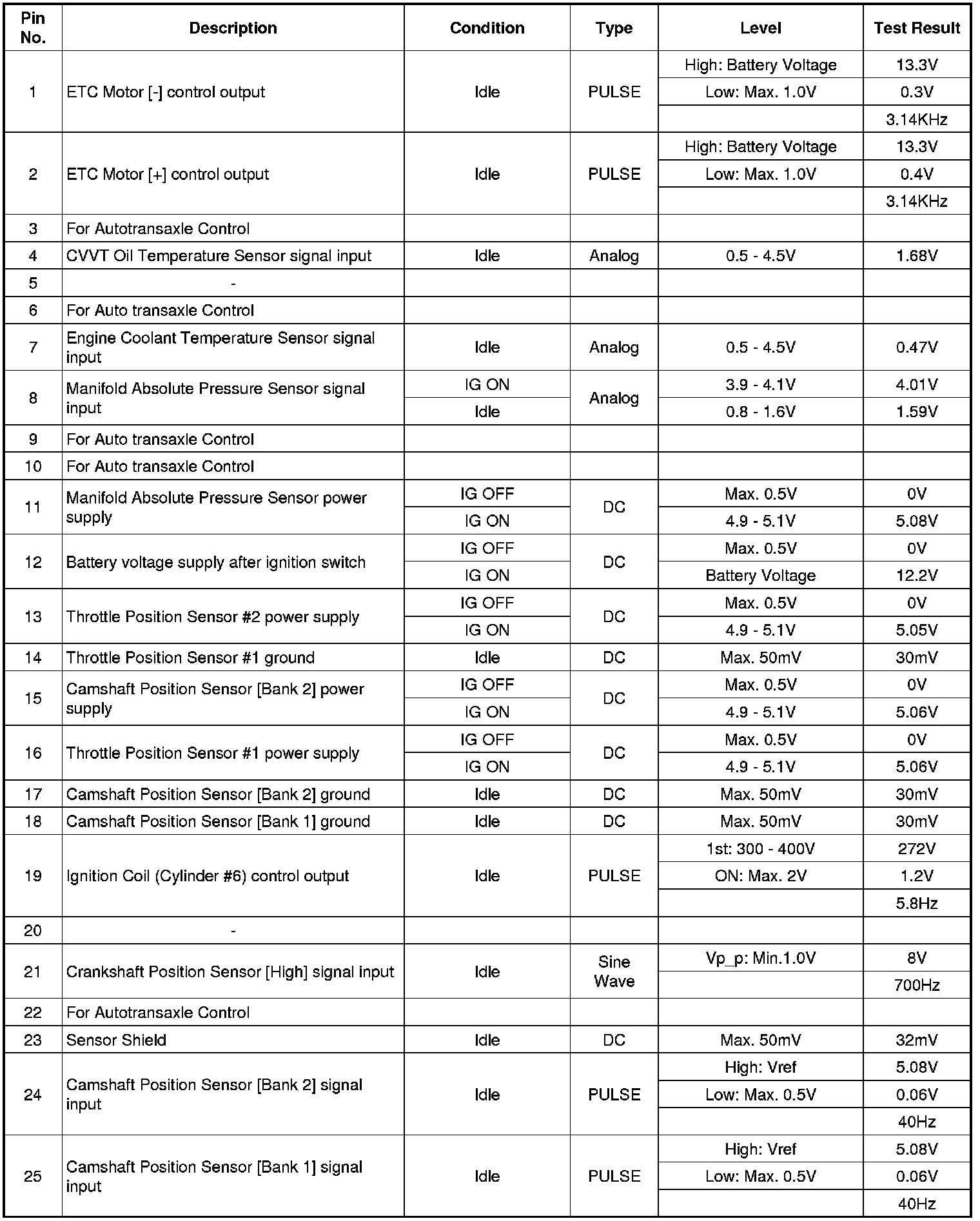

Connector [C144-A]

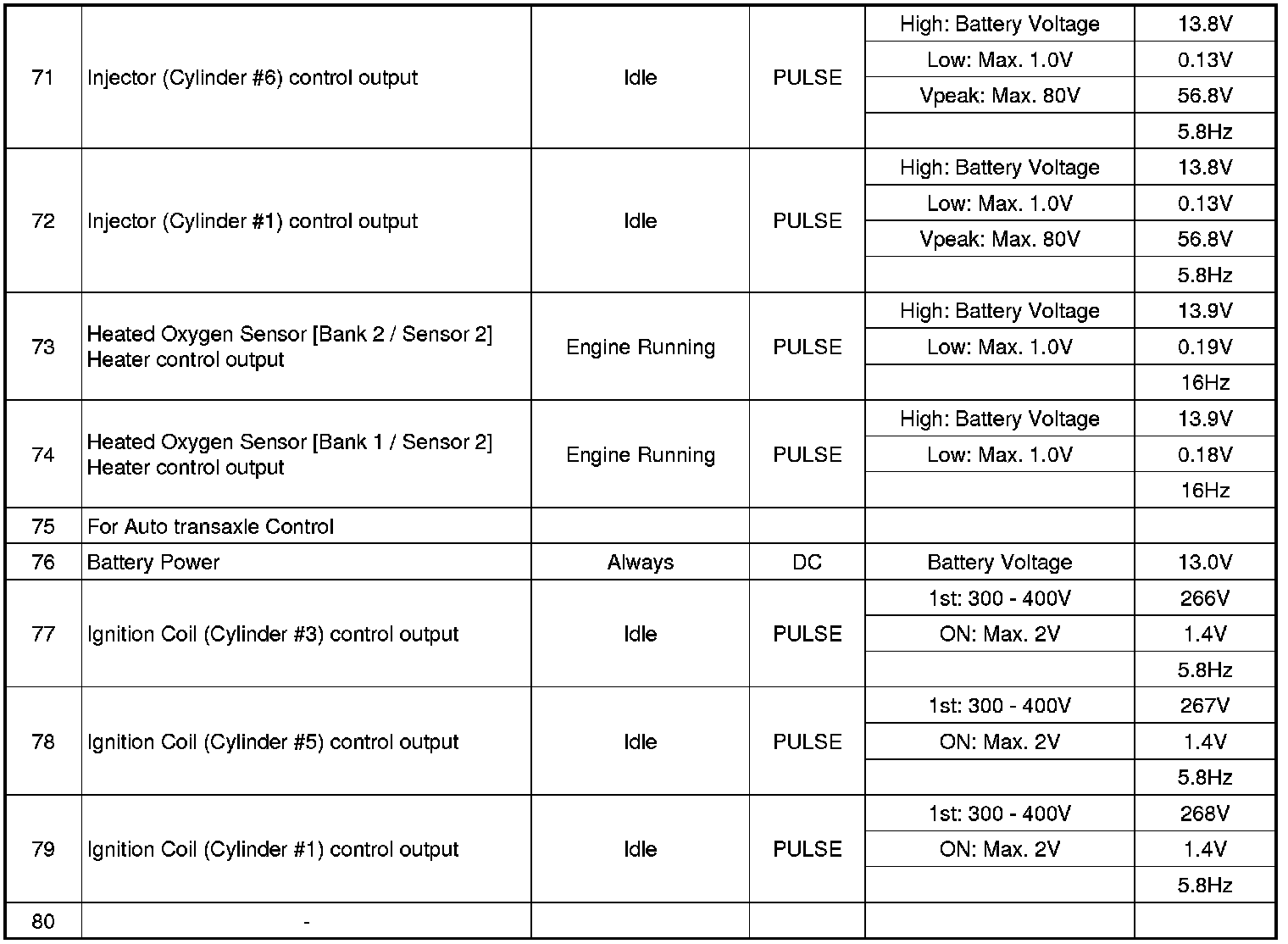

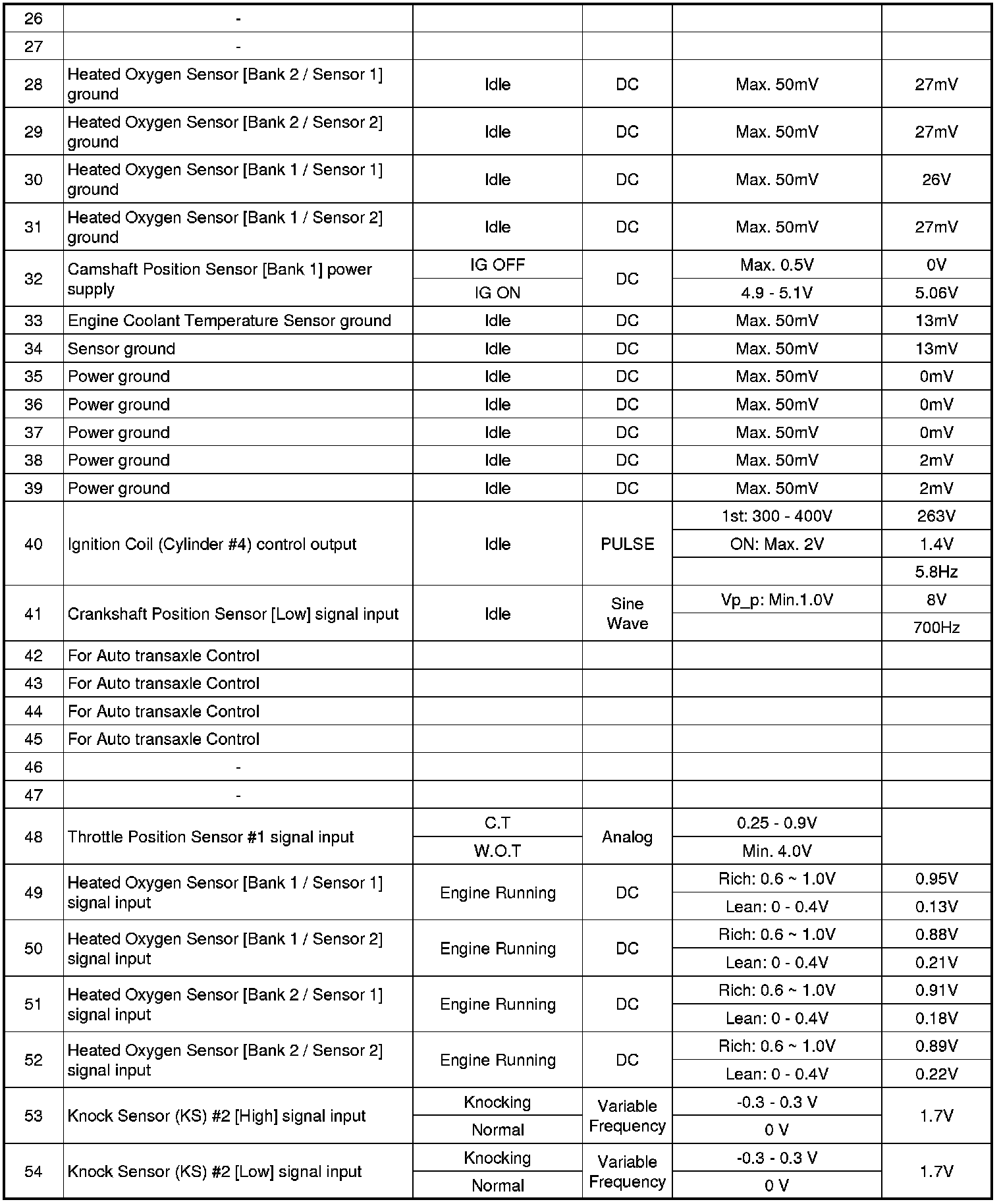

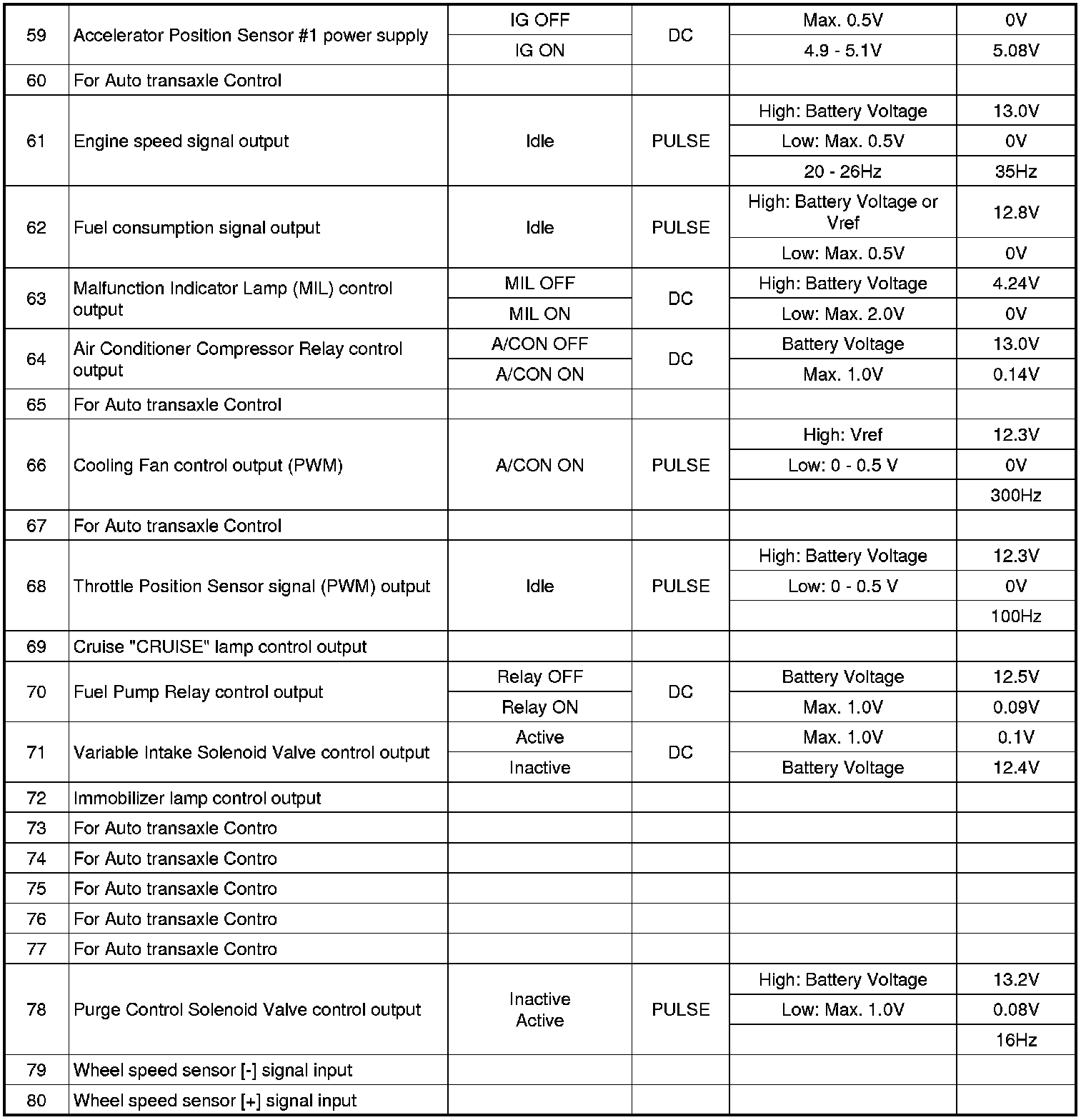

CONNECTOR [C144-B]


















Circuit Diagram
