Front Door Window Regulator: Service and Repair

Replacement

Door Regulator Replacement
1. Remove the door trim.
2. Remove the door trim seal.
3. Remove the window glass.

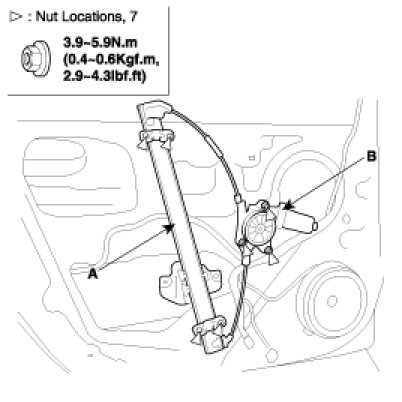

4. After disconnecting window motor connector(B), loosen the door regulator mounting nuts and window motor mounting nuts, remove the door regulator(A).




5. Installation is the reverse of removal.

NOTE:
- If the door trim seal is damaged, it must be replaced.
