Water Pump





Water Pump

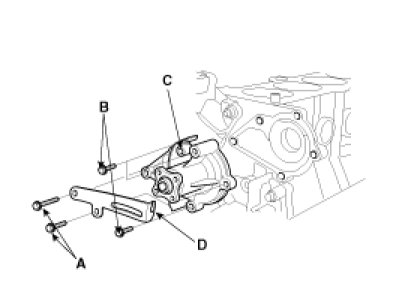

Install the water pump(C) and a new gasket with the 3 bolts(B).

Tightening torque 11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)
