Cylinder Head





NOTE: Head Bolts are reusable.

Cylinder Head

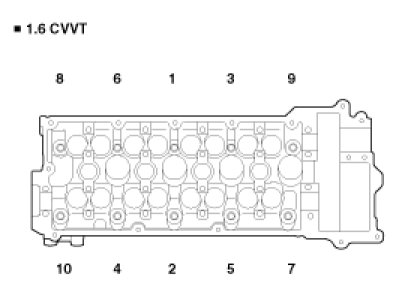

Using 8mm and 10mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 90° -> Release all bolts -> 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 90°
