Cylinder Head

NOTE: Head Bolts are reusable.

Cylinder Head

Using 8mm and 10mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 90° -> Release all bolts -> 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 90°

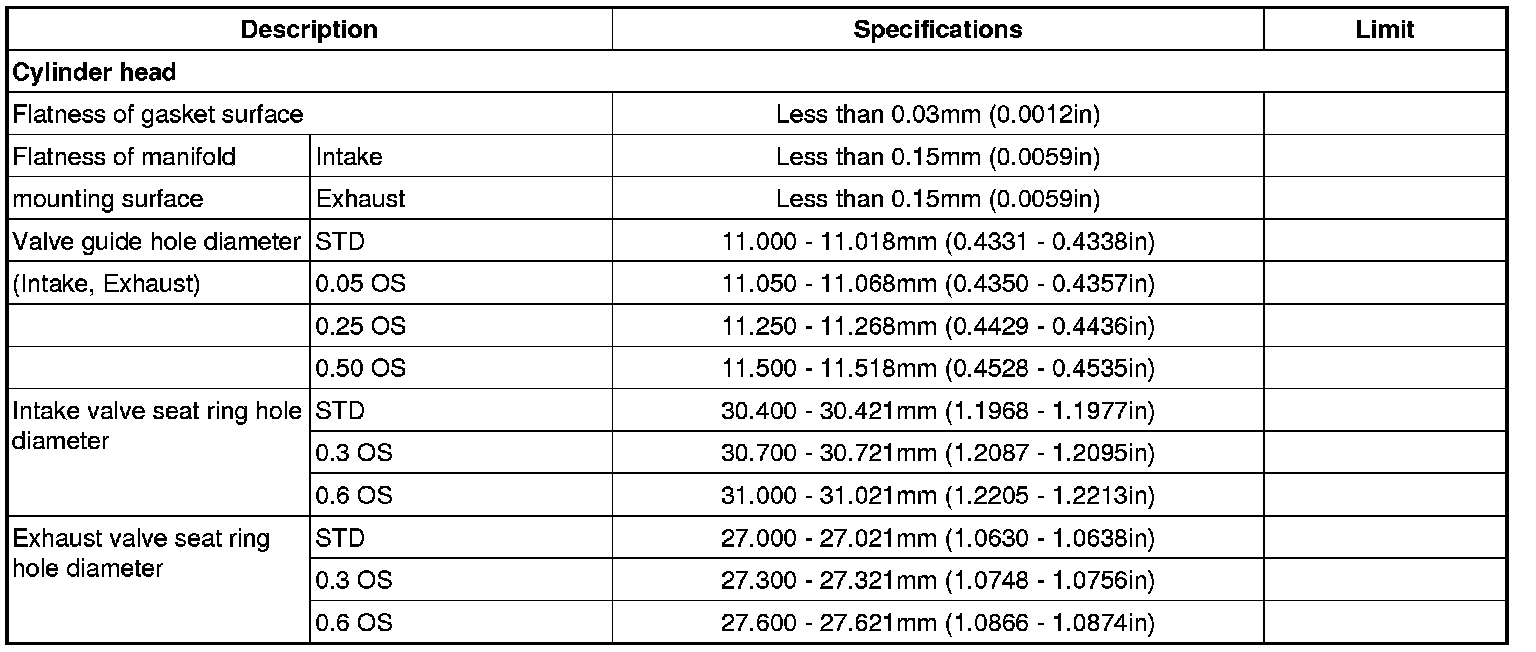

Cylinder Head Surface Variation






Flatness of cylinder head gasket surface

Standard Less than 0.03 mm (0.0012 in)
Limit 0.05 mm (0.0020 in)
