Hyundai
>>
2008
>>
Tucson GLS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4GC - GSL 2.0)
>>
Fuel Delivery System
>>
Fuel Pressure Test
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Pressure Test

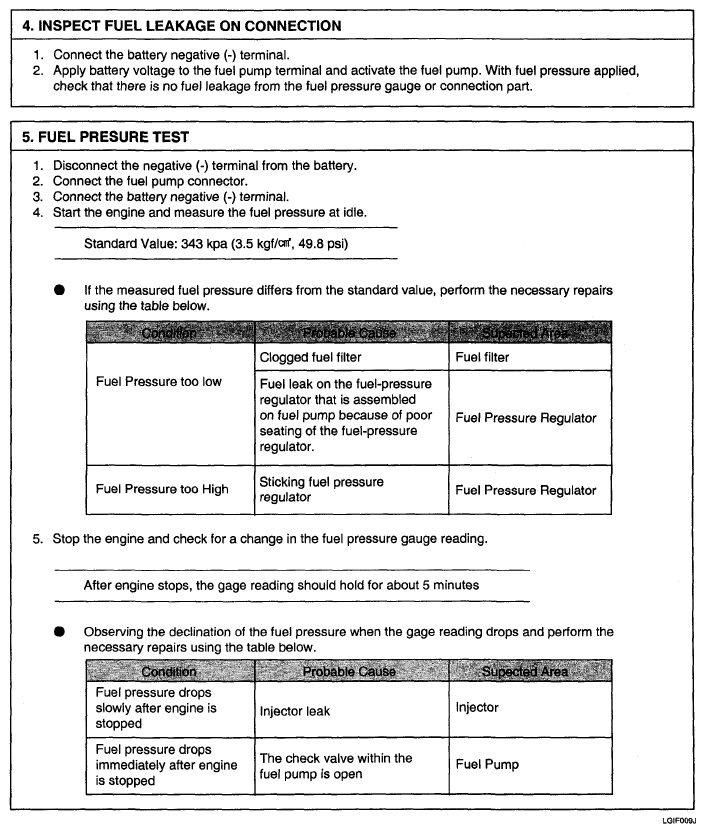

Fig 1: Fuel Pressure Test Procedure (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

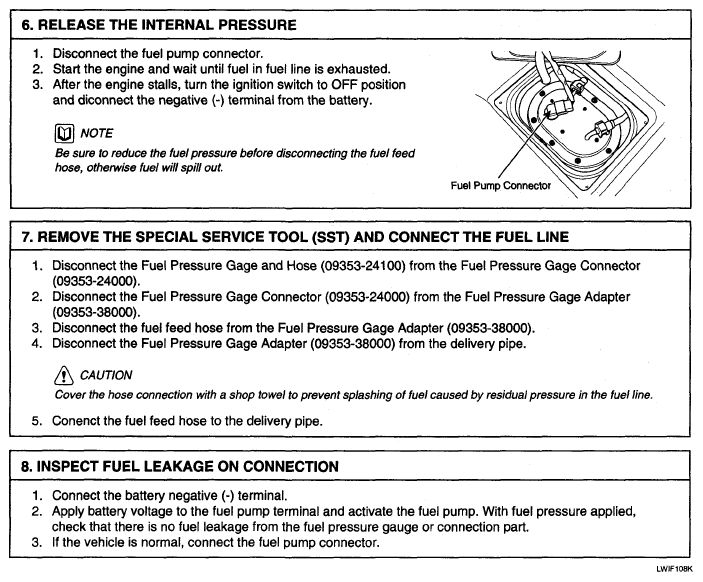

Fig 2: Fuel Leakage Test System Diagram
Courtesy of HYUNDAI MOTOR CO.

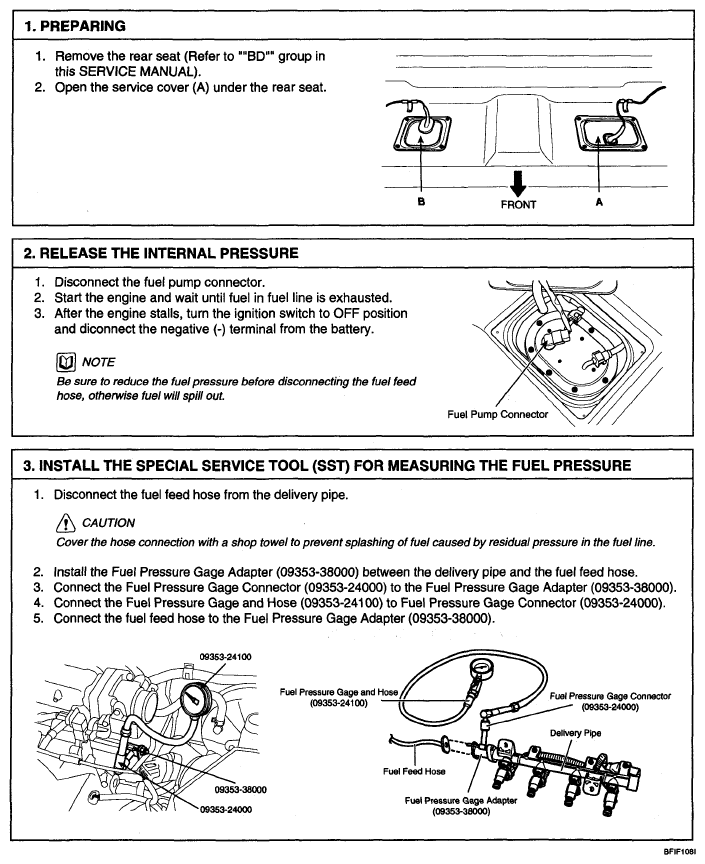

Fig 3: Identifying Fuel Pump Connector System Diagram
Courtesy of HYUNDAI MOTOR CO.
