Schematic Diagram

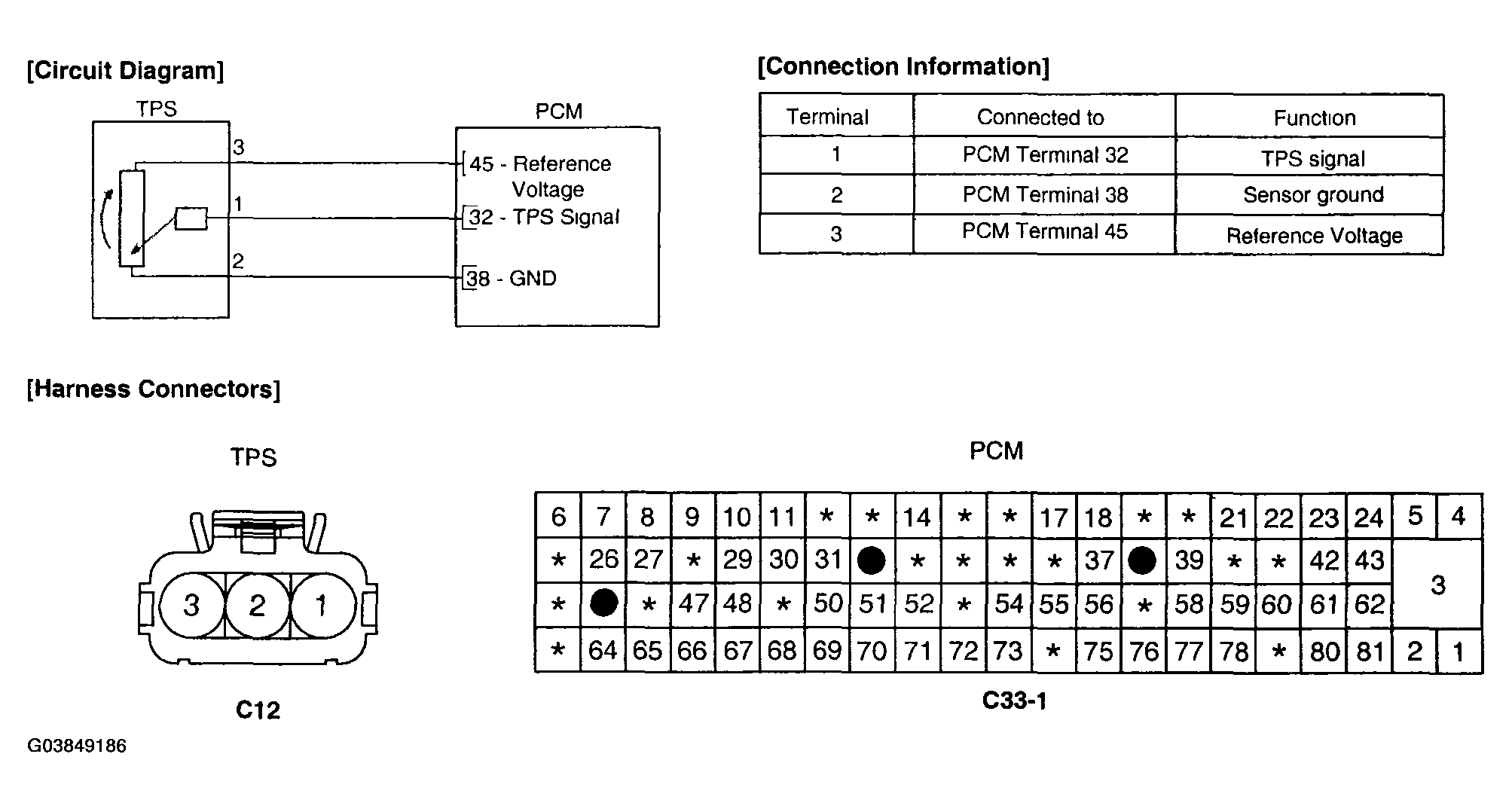

Fig 1: Schematic Diagram - Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance
