Fuse: Locations

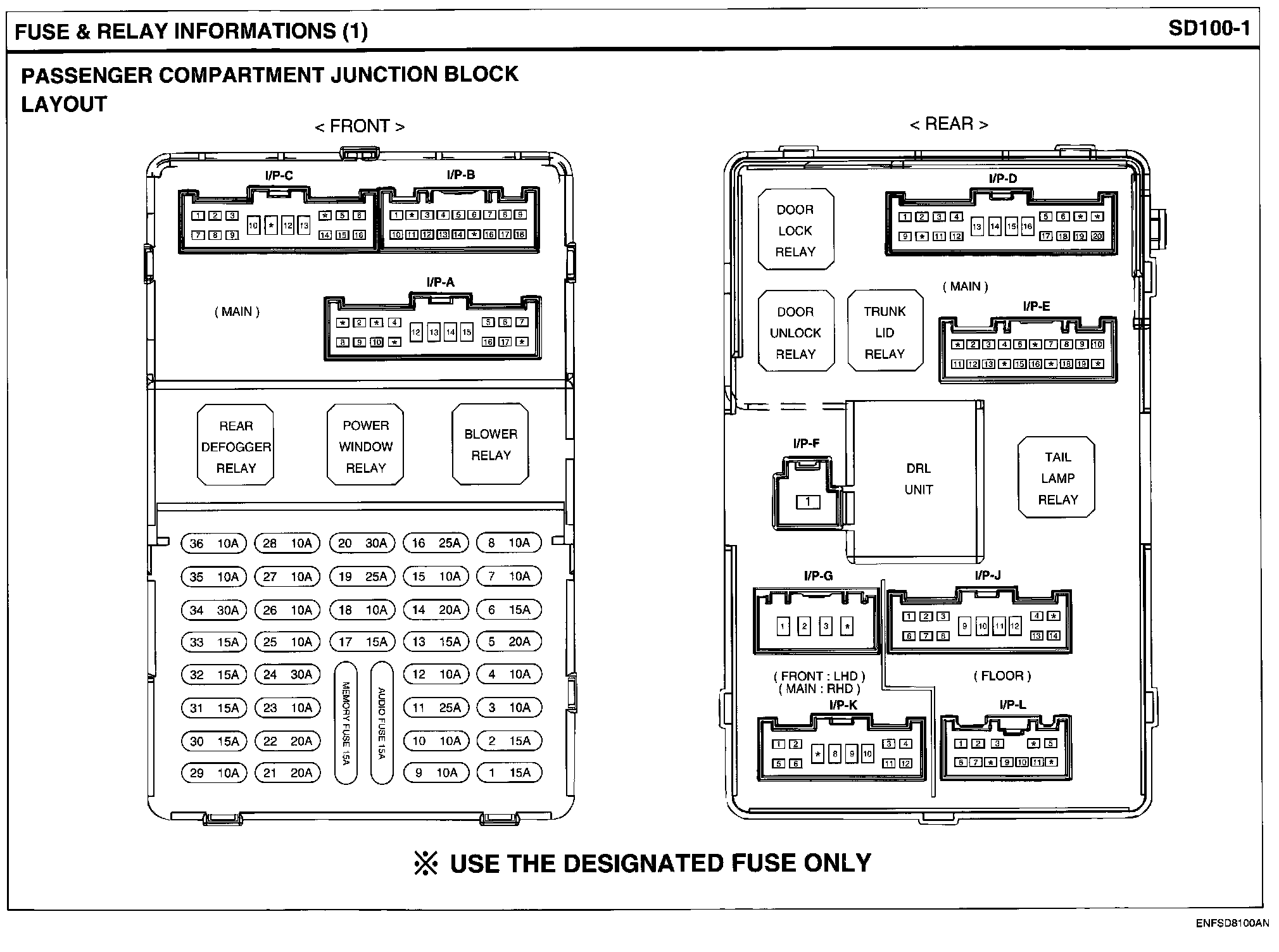

Passenger Compartment Junction Block Layout Views:

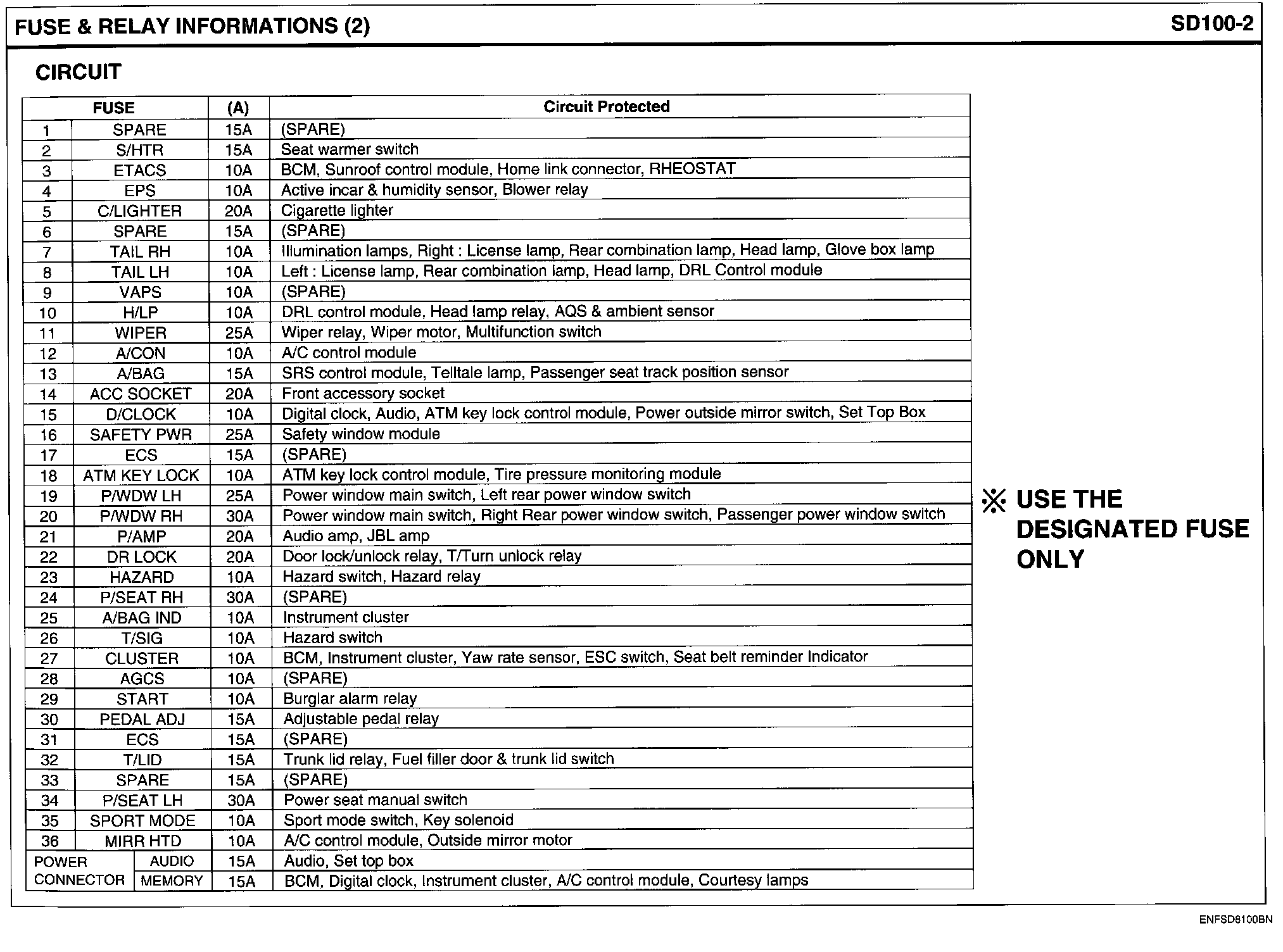

Passenger Compartment Junction Block Layout Circuit Details:

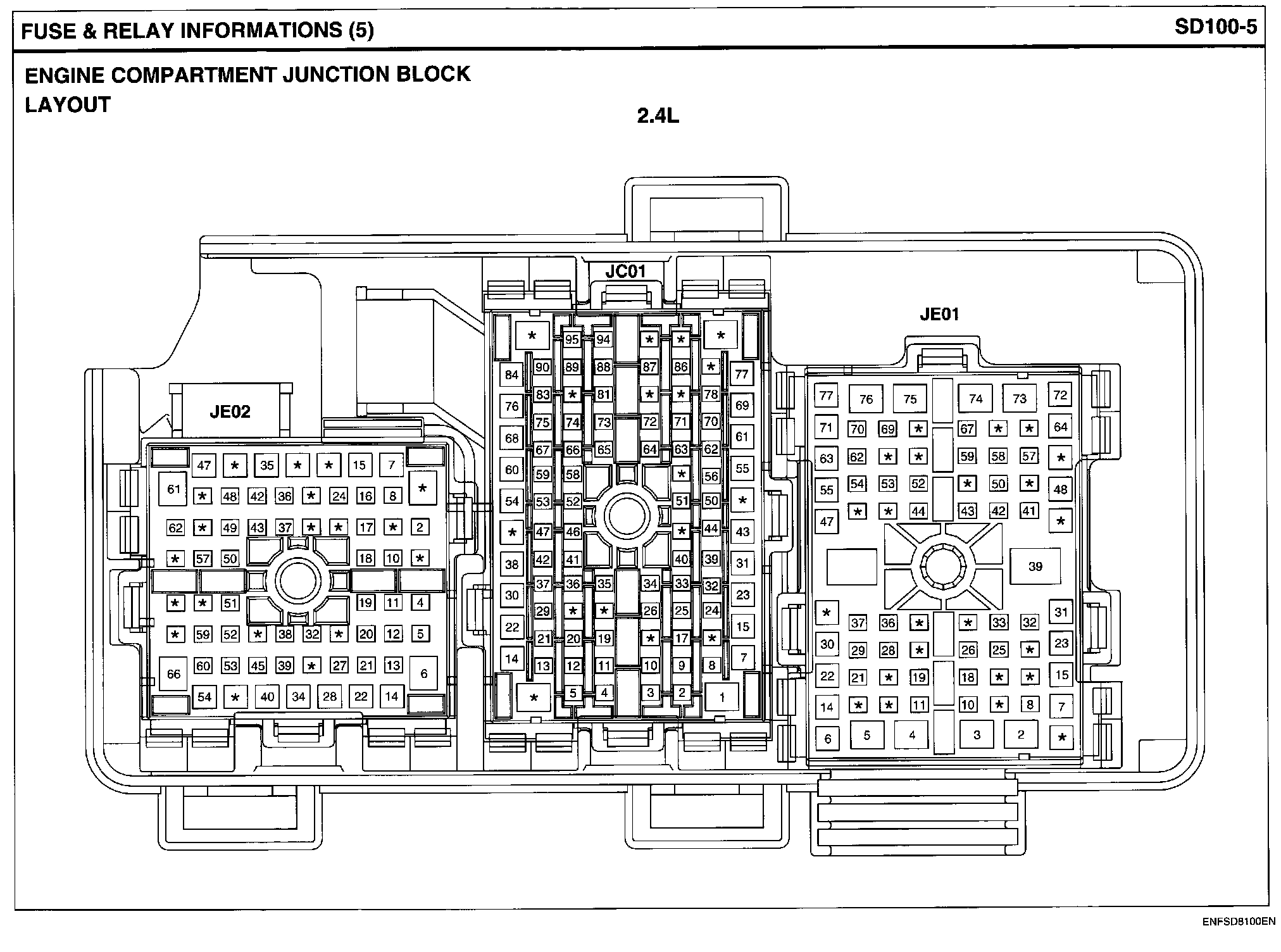

Engine Compartment Junction Block Layout Views:

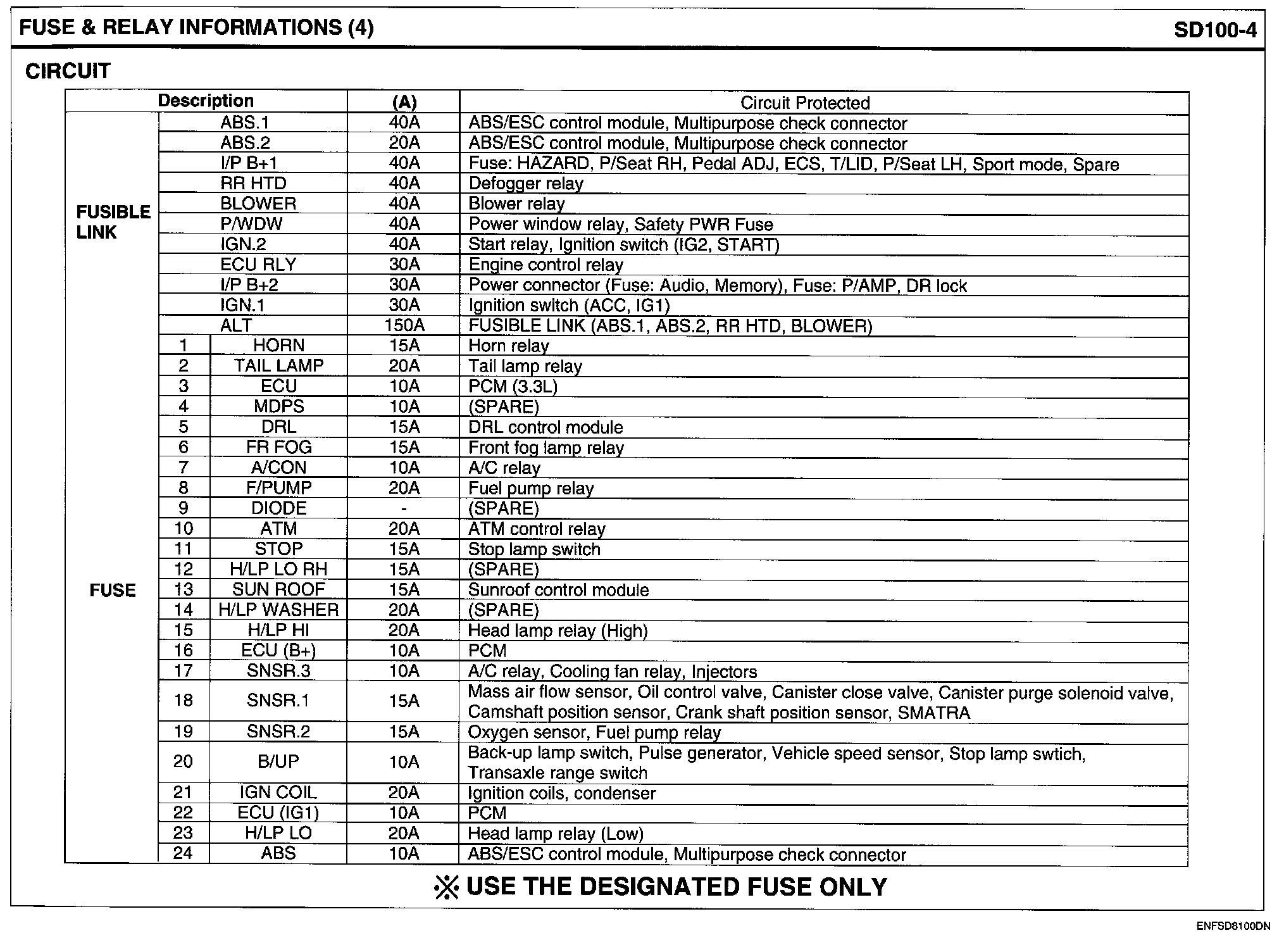

Engine Compartment Junction Block Layout Circuit Details:

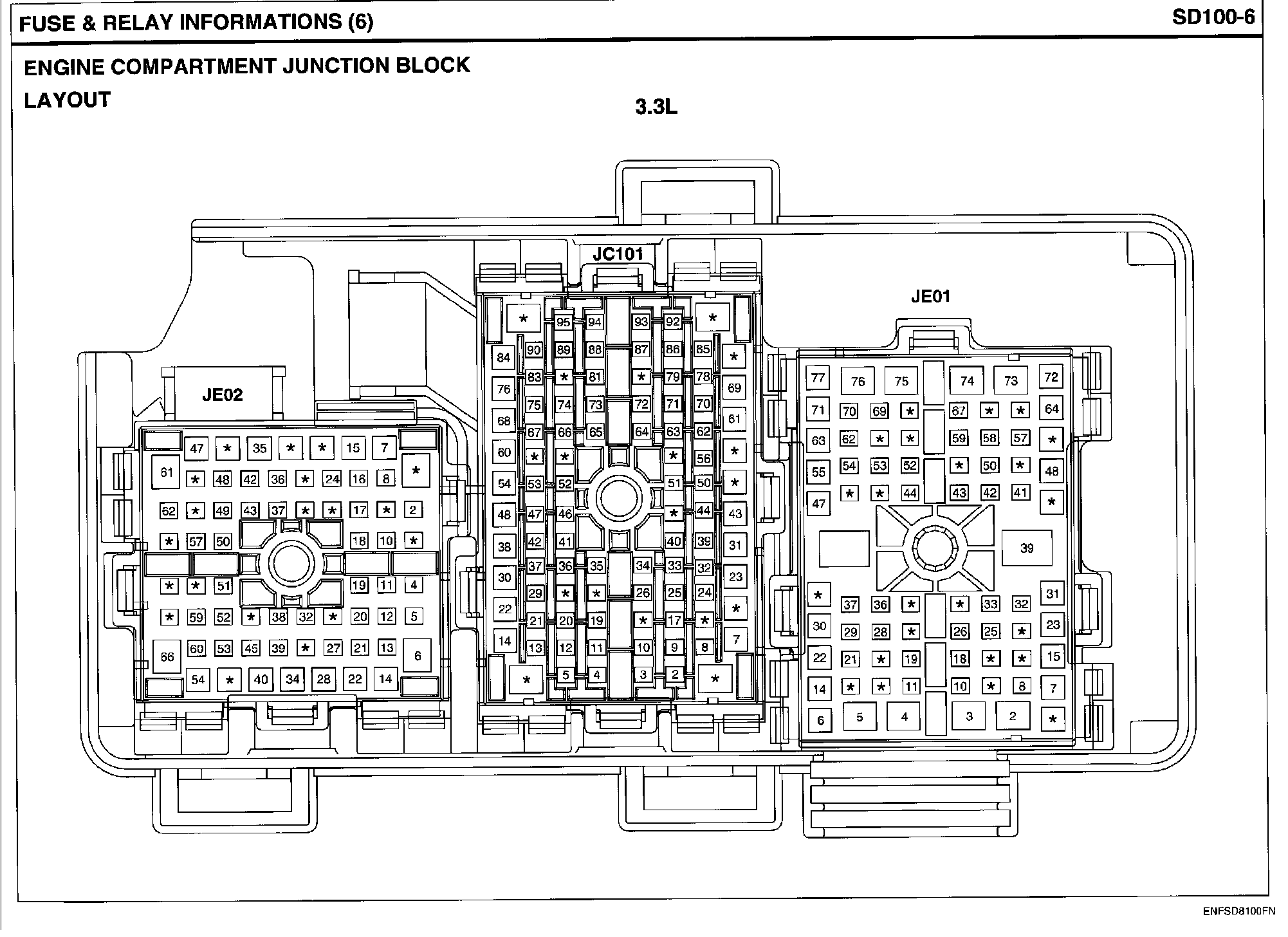

Engine Compartment Junction Block Layout Views:

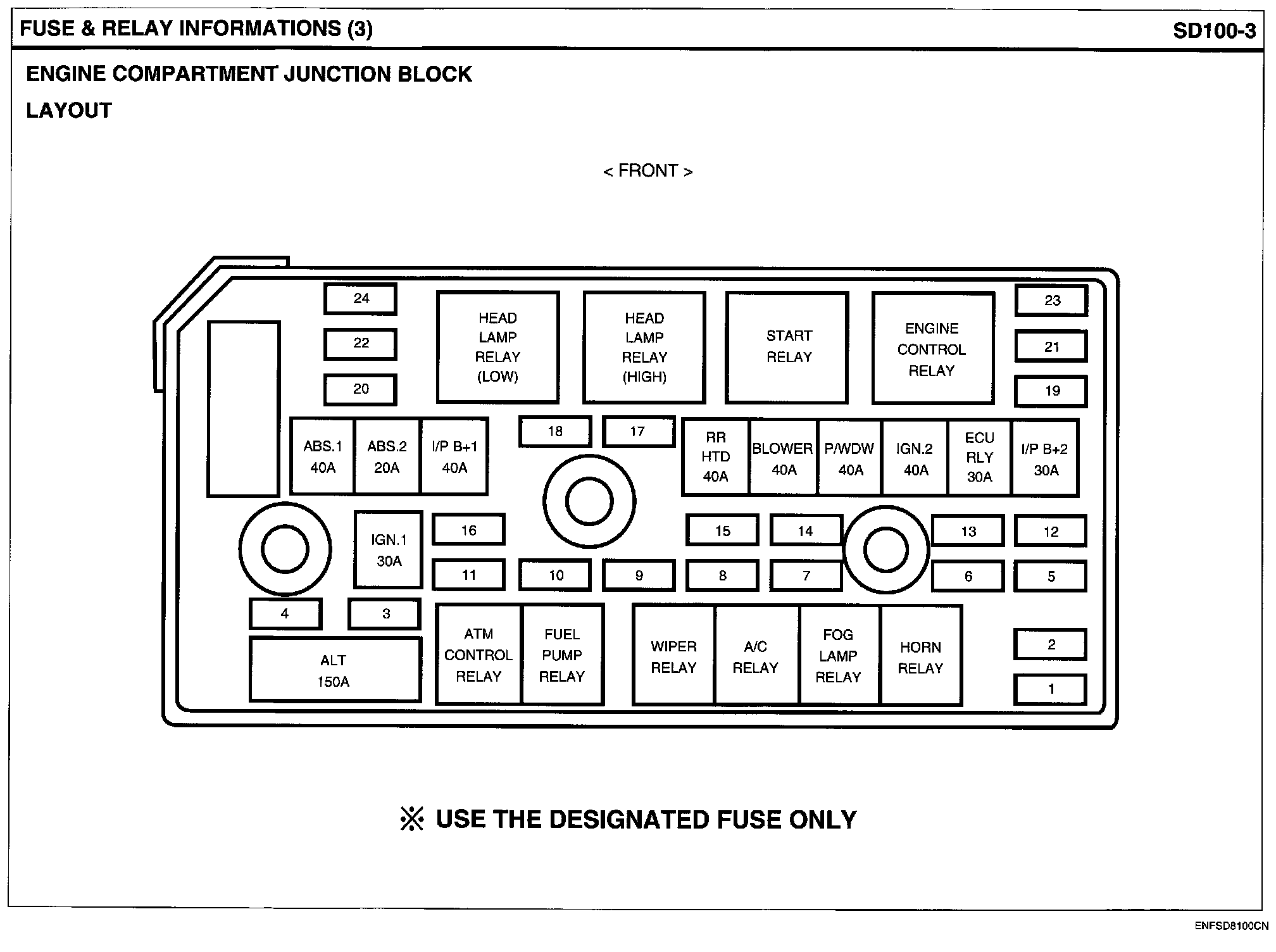

Engine Compartment Junction Block Layout:




Passenger Compartment Relay Box (ICM Box):
