ESC Control Module: Components

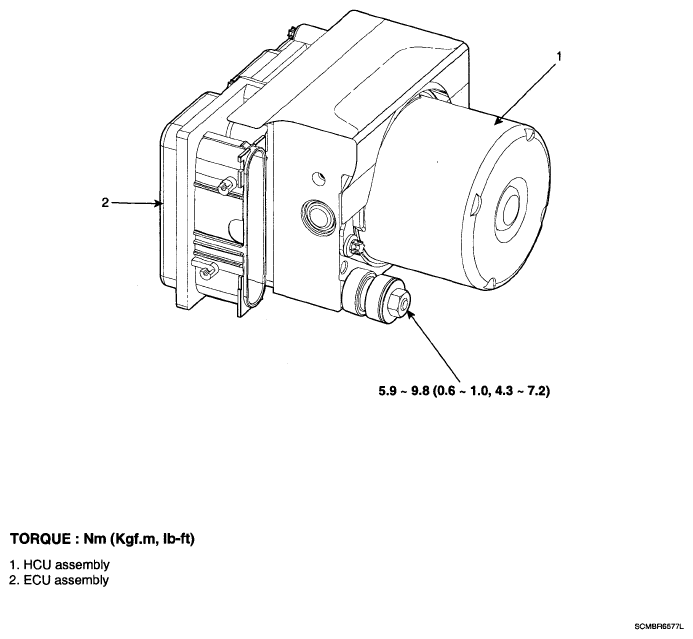

Fig 1: HCU Assembly And ESC Assembly With Torque Specification
G05350799Courtesy of HYUNDAI MOTOR CO.
