Hyundai
>>
2008
>>
Santa Fe GLS, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6EA-GSL 2.7)
>>
Gasoline Engine Control System
>>
CVVT Oil Temperature Sensor (OTS)
>>
Inspection
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

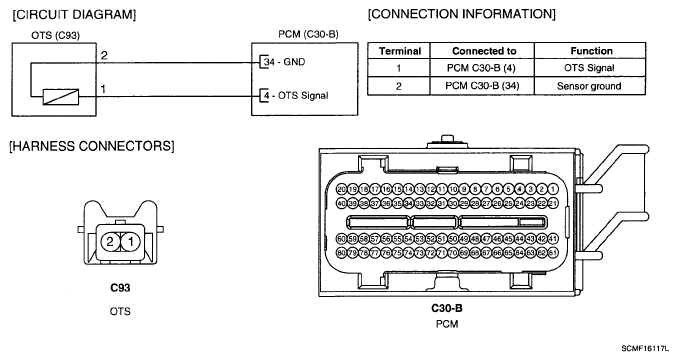

Fig 1: CVVT Oil Temperature Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
