Relay Box (Engine Compartment)

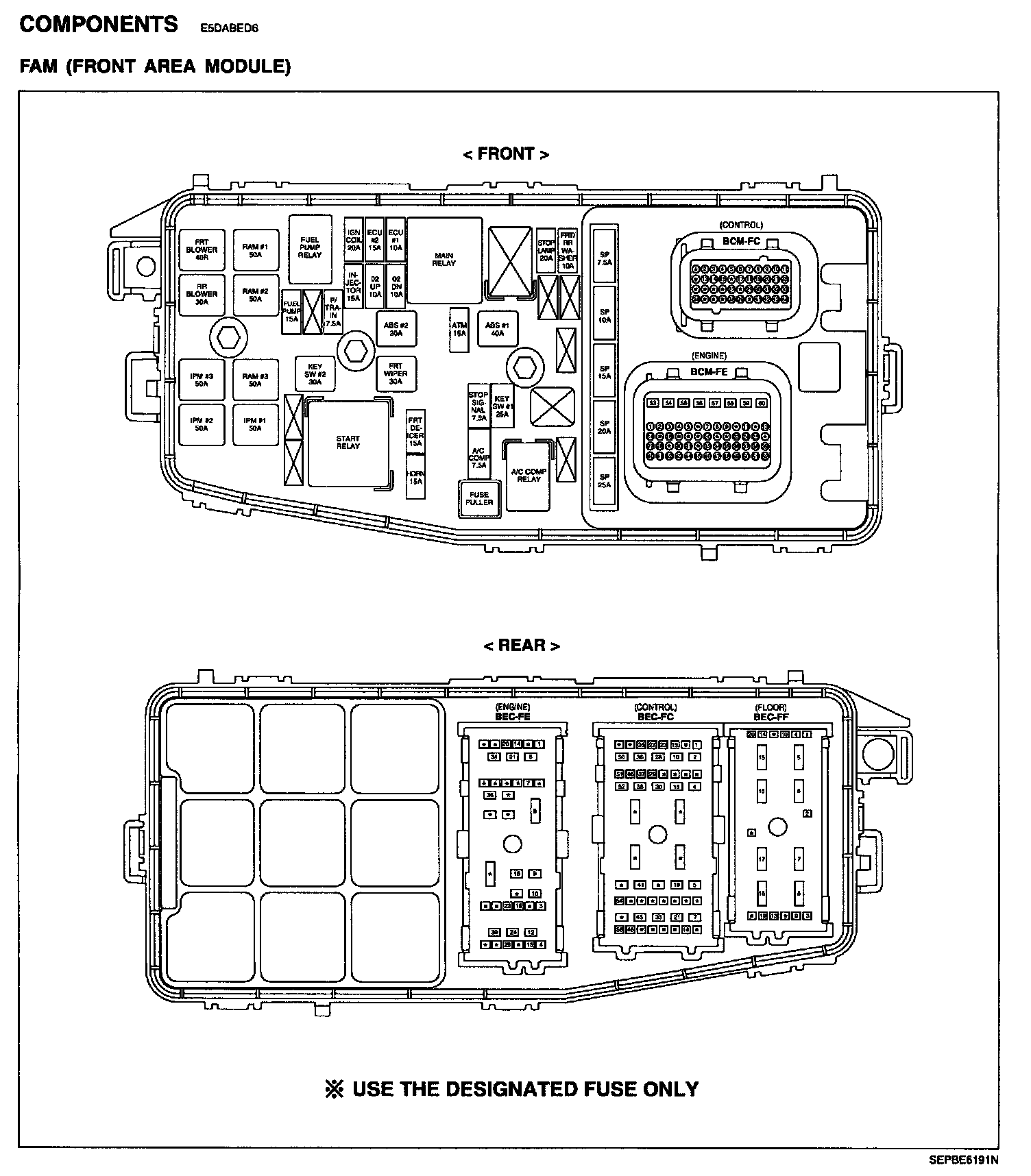

Relay Box (Engine Compartment) FAM (Front Area Module) - Components:

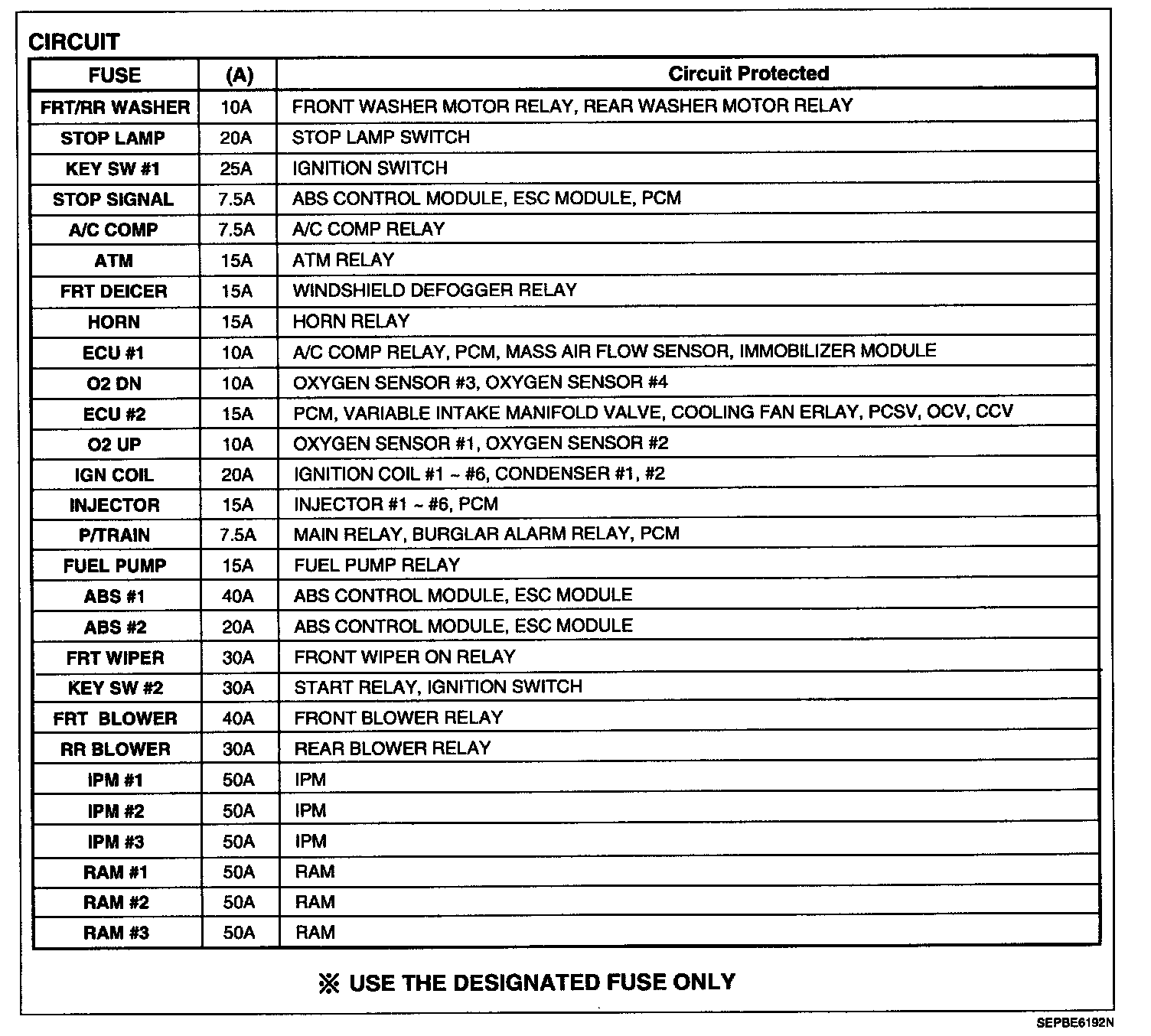

Relay Box (Engine Compartment) FAM (Front Area Module) - Components:
