Engine Controls

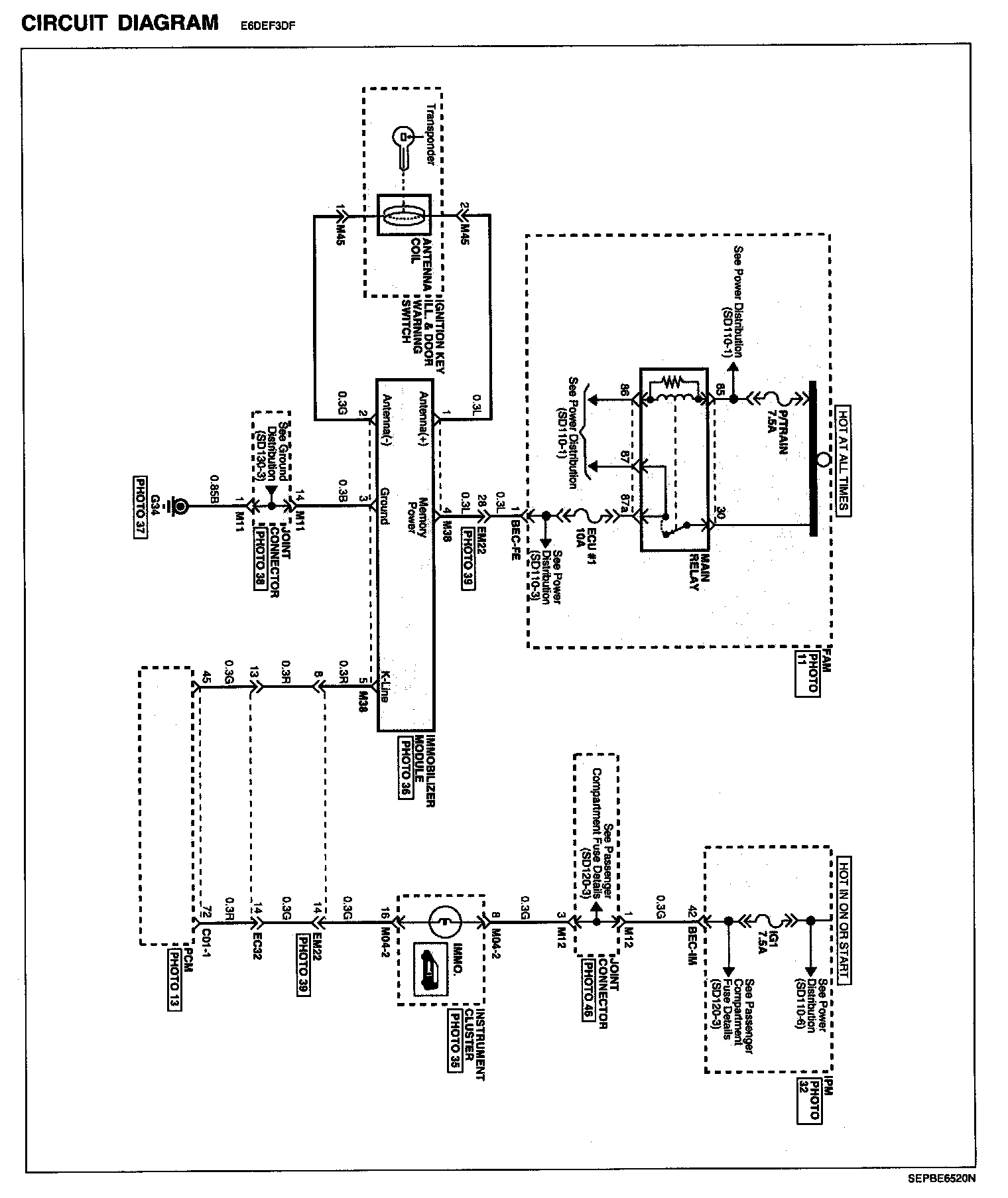

Circuit Diagram For Immobilizer Control System - (Part 1):

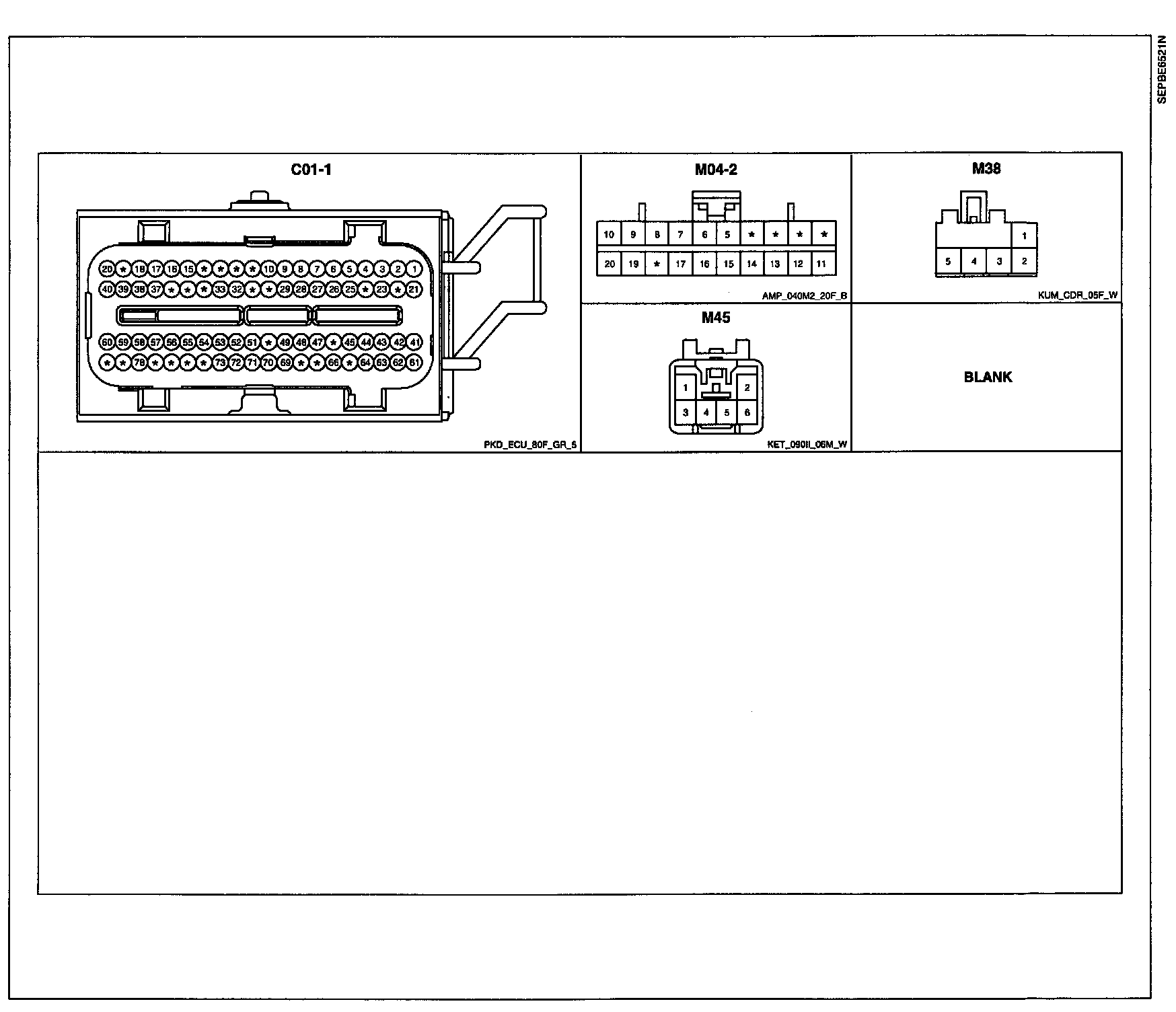

Circuit Diagram For Immobilizer Control System - (Part 2):
