Relay Box: Application and ID

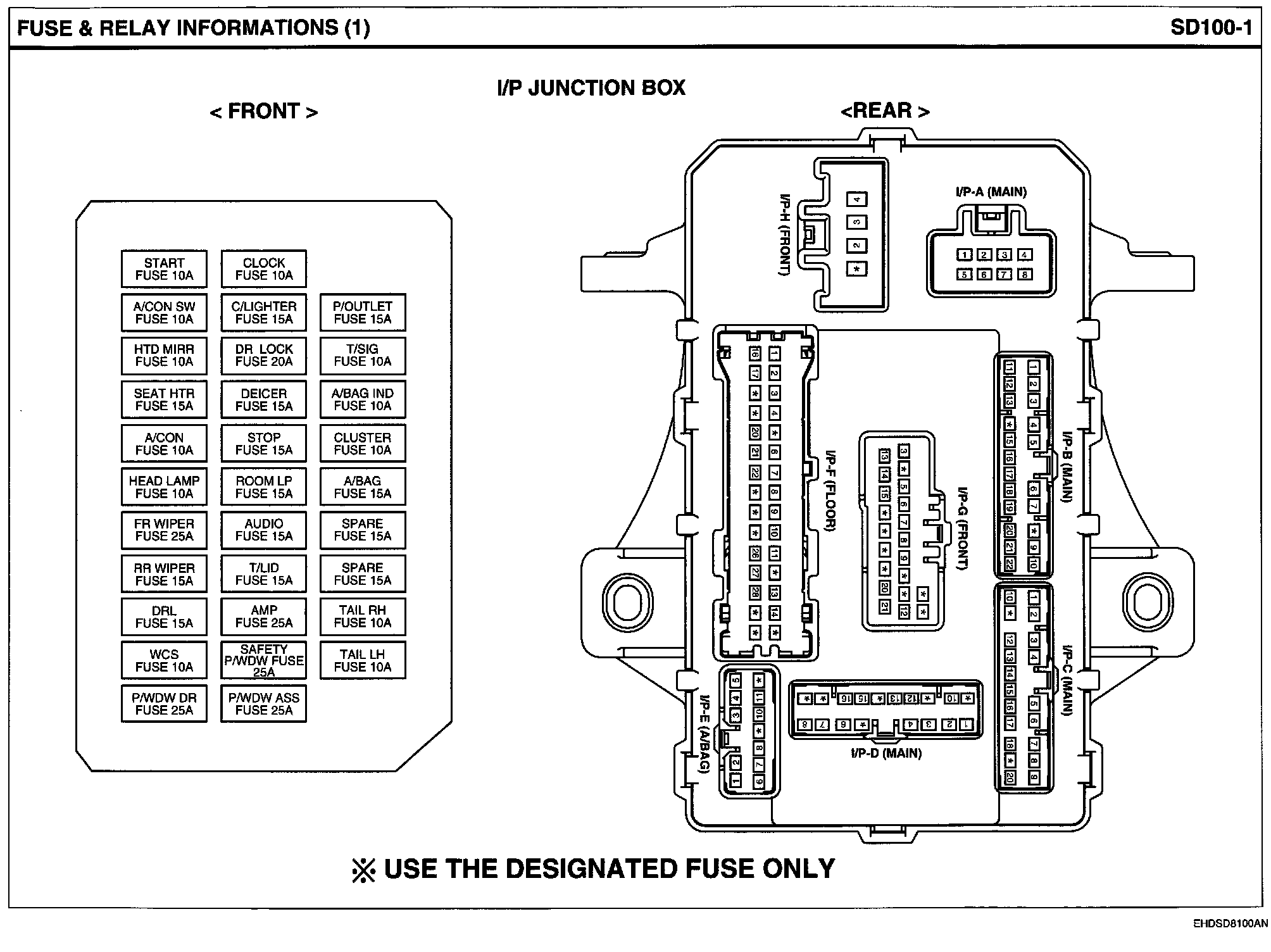

I/P Junction Block Layout View:

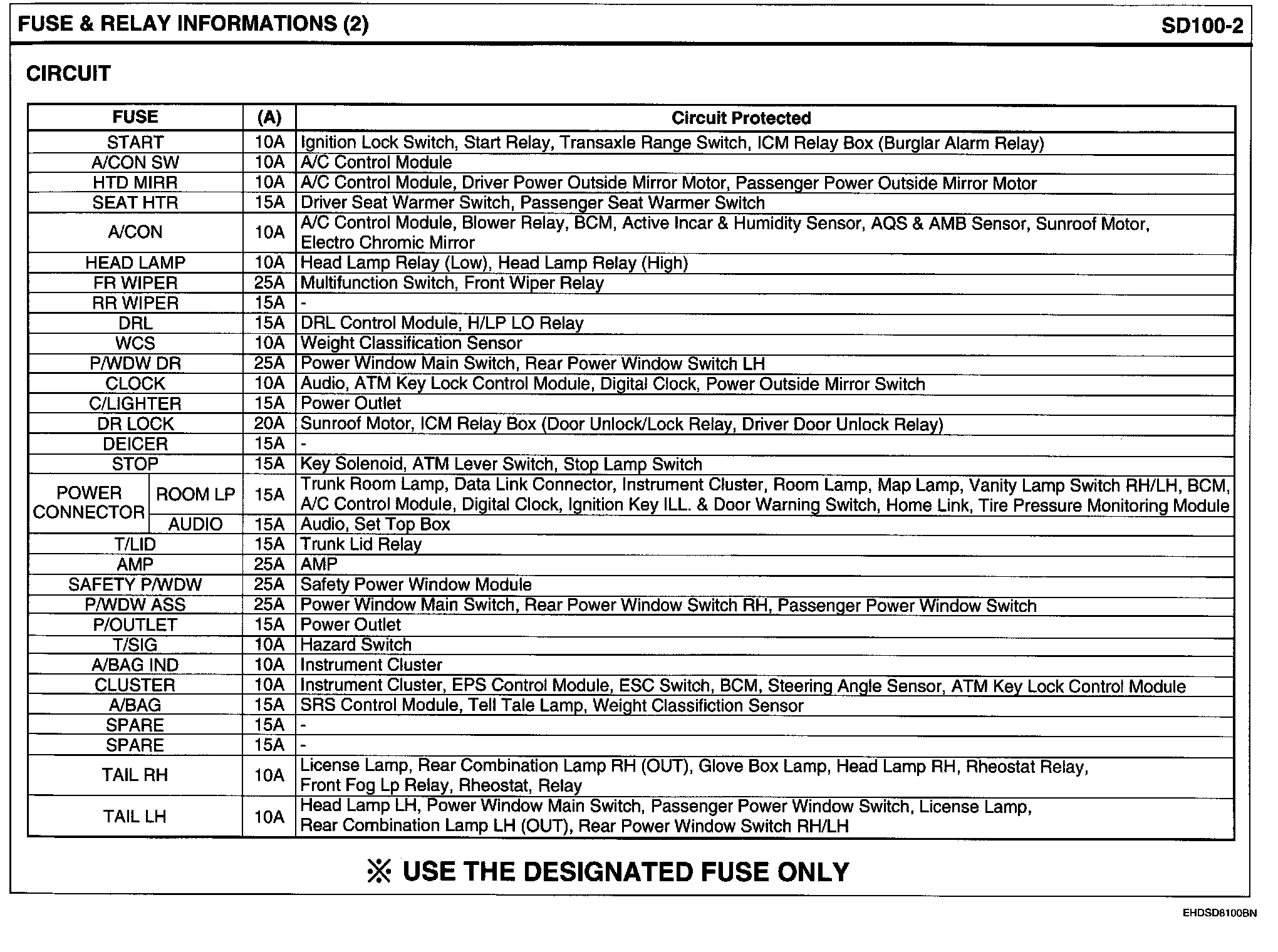

I/P Junction Block Layout Circuit Details:

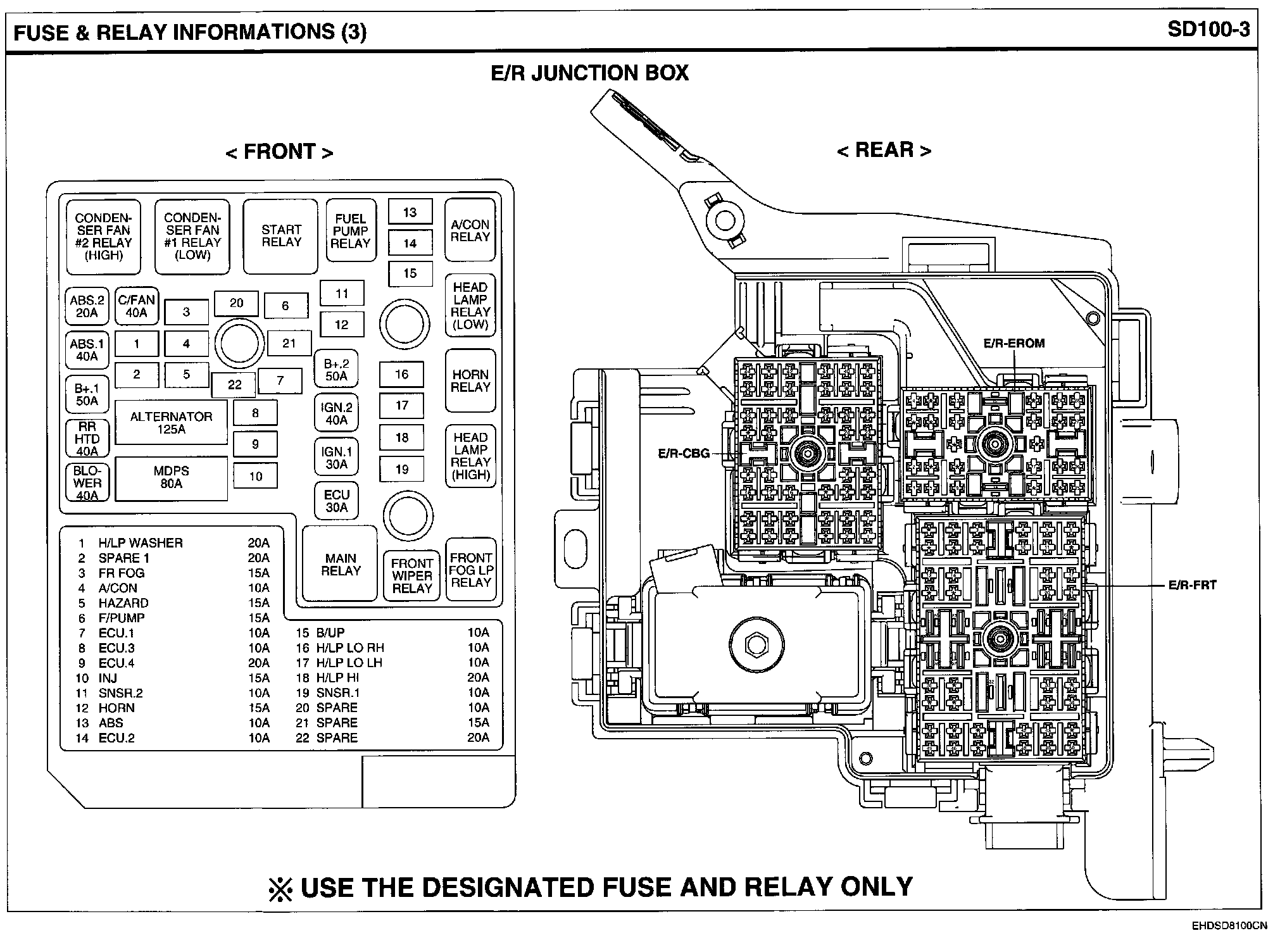

E/R Junction Block Layout View:

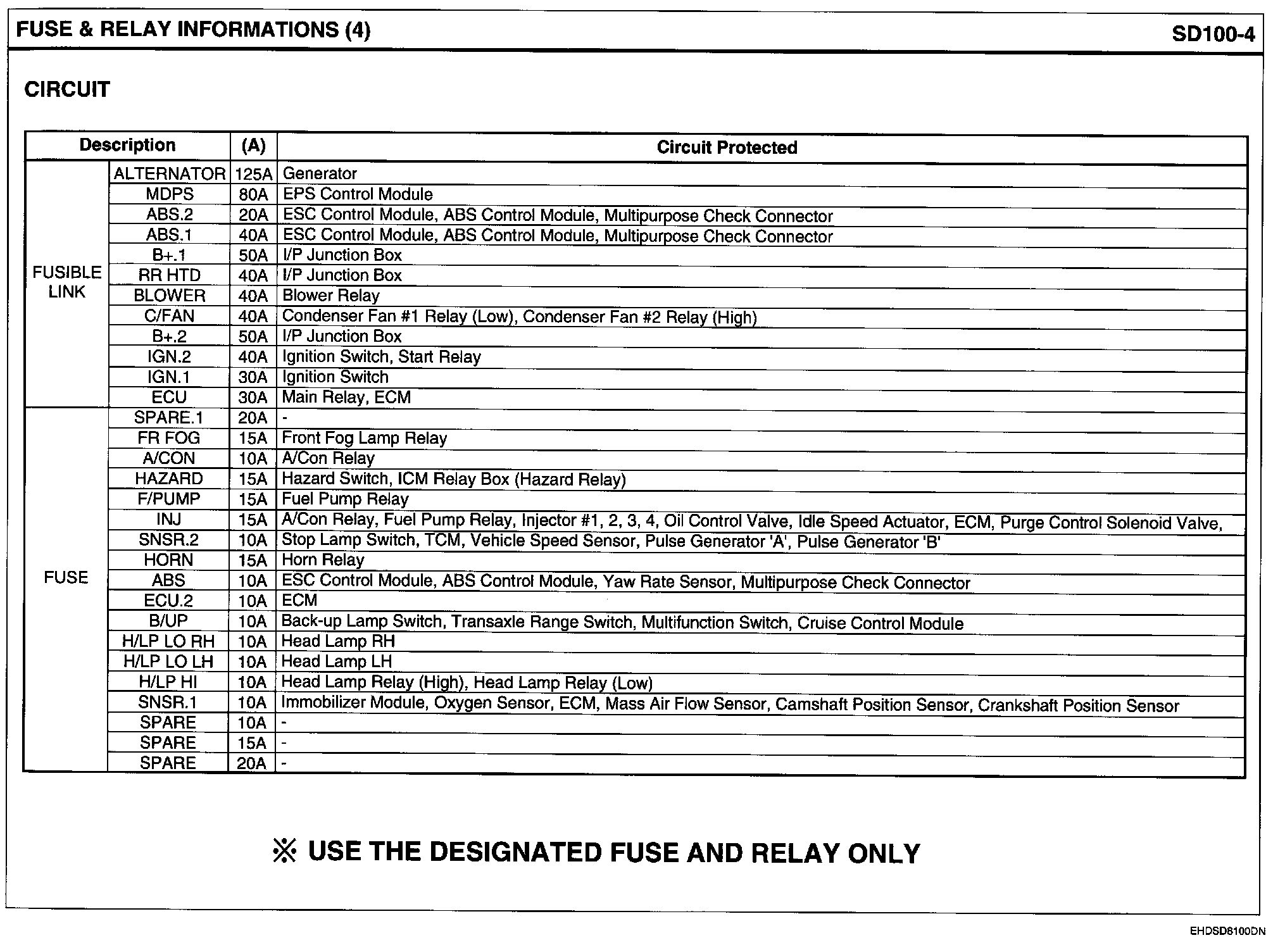

E/R Junction Block Layout Circuit Details:
