Recliner Cover Replacement

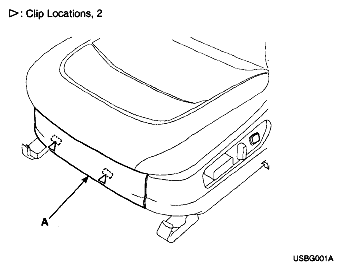

- Remove the cover (A).
Courtesy of HYUNDAI MOTOR CO.

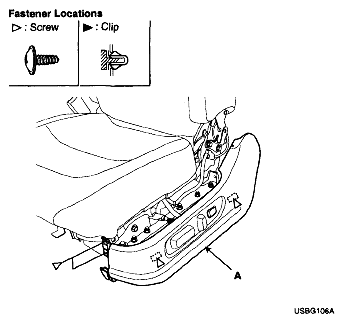

- Loosen the recliner mounting screw and clip, then remove the recliner cover (A).
Courtesy of HYUNDAI MOTOR CO.
- Remove the front seat buckle.

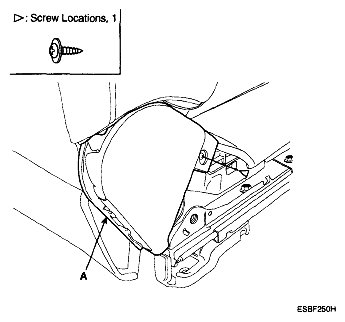

- Loosen the mounting screw, then remove the cover (A).
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse of removal.
