Schematic Diagram

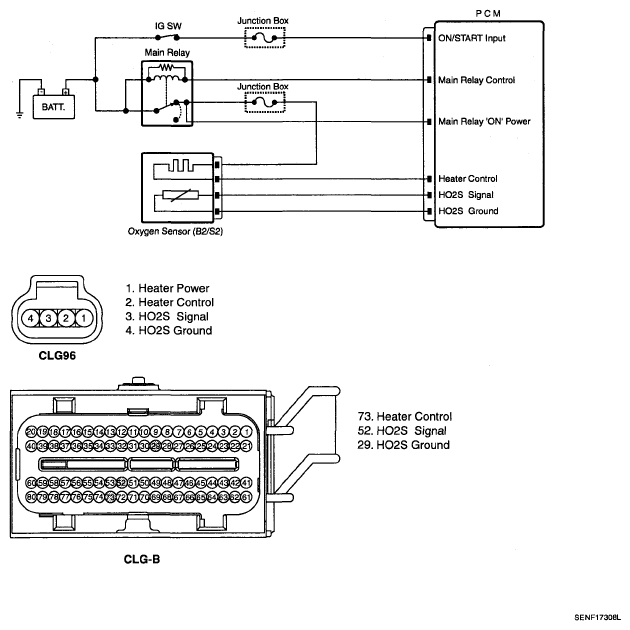

Fig 1: HO2S Heater Control Circuit (Bank 2/Sensor 2) - Schematic Diagram
G05329828Courtesy of HYUNDAI MOTOR CO.
