Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
ESC (Electronic Stability Control) System
>>
Esp/ESC System
>>
DTC C1647 Sensor Can Hardware Error
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

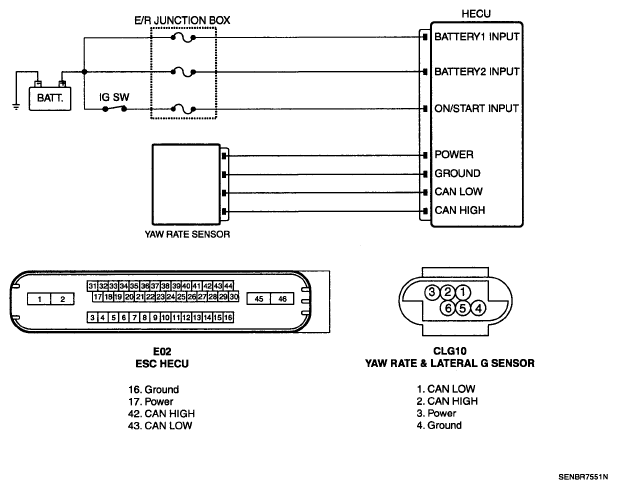

Fig 1: CAN Sensor - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
