Clock Spring Replacement (Campaign 103) (SC 103)

Publication date: 2012-05-01
Reference number: SC 103
Supersedes refnos: 12-01-016

CLOCK SPRING REPLACEMENT (CAMPAIGN 103)

CLOCK SPRING REPLACEMENT (CAMPAIGN 103)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 12-01-016, Date of Issue:  May 01, 2012
HYUNDAI: Santa Fe (CM) Veracruz (EN)
GROUP: CAMPAIGN
Superceded Bulletin(s): 11-01-052, Date of Issue:  May 01, 2012

REVISION WIRING

This TSB supersedes TSB# 11-01-052 to include new Owner's Letter.

IMPORTANT: *** Retail Vehicles ***
Dealers must perform this recall campaign on all affected vehicles in inventory and whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the service department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

DESCRIPTION

This bulletin provides the service procedure for replacing the clock spring assembly.

2007 - 2008 Santa Fe: Pages 3 - 11

2007 - 2008 Veracruz: Pages 12 - 16

G09424426

Applicable Vehicles:  2007-2008 Model Year Santa Fe (CM) Produced:  4/19/2006 - 3/20/2008

2007-2008 Model Year Veracruz (EN) Produced:  12/26/2006 - 3/21/2008

PARTS INFORMATION

PARTS INFORMATION

VEHICLE PART NAME PART # QTY
Santa Fe Clock Spring 93490-2B300-QQH 1
Veracruz Clock Spring 93490-3J100-QQH 1

SST INFORMATION

SST INFORMATION

DESCRIPTION SST PART #
Steering wheel remover 09561-11001

WARRANTY INFORMATION

WARRANTY INFORMATION

VEHICLE OP CODE OPERATION OP TIME
Santa Fe 11C101R1 Clock spring replacement 0.5 MH
Veracruz 11C101R0 Clock spring replacement 0.5 MH
NOTE: Submit Claim on Campaign Claim Entry Screen

Santa Fe Replacement Procedure

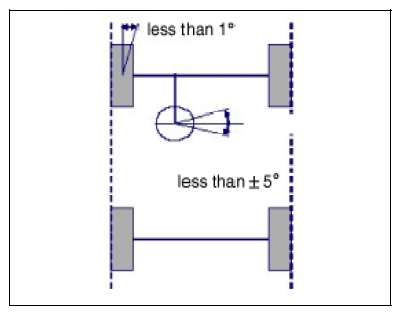

  1. Turn the steering wheel to the straight ahead position, and then hold the steering wheel within ±5° of straight ahead position.
    G09424427
  2. Turn the ignition ON and record customer's AM/FM/XM radio preset stations.

    Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.

  3. Loosen and remove the steering wheel air bag mounting bolts (A) on both sides.

    Tightening Torque:

    5.7~7.9 lb-ft (7.9~10.7 Nm)

    G09424428

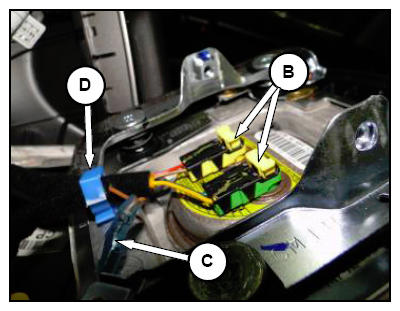

  4. Disconnect the airbag connectors (B) after releasing the locking pins.

    Disconnect the horn connector (C), and then unclip the wiring mounting clip (D). Then remove the driver airbag module.

    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
    G09424429

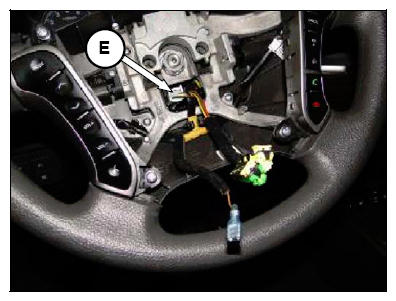

  5. Disconnect the steering wheel control switch connector (E).
    G09424430

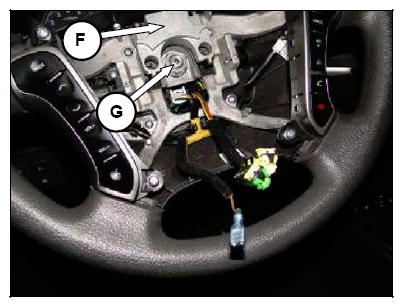

  6. Remove the dynamic damper (F).

    Remove the steering wheel lock nut (G).

    Tightening Torque: 29 ~ 36 lb-ft (40 ~ 50 Nm)

    G09424431

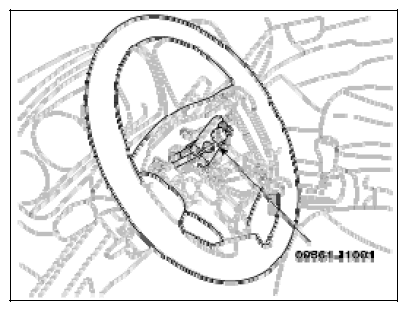

  7. After making alignment marks on the steering wheel and shaft for reinstallation, remove the steering wheel using SST 09561-11001 or a generic steering wheel removal tool.
    CAUTION: Do not hammer on the steering wheel to remove it.
    G09424432

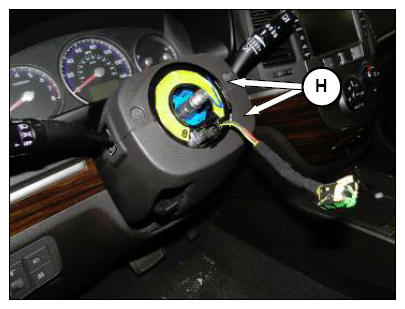

  8. Remove the steering column upper/lower shrouds (H) after loosening the mounting screws (5 EA).
    G09424433

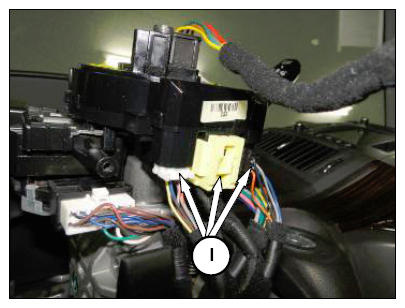

  9. Disconnect the connectors (I) under the clock spring.
    G09424434

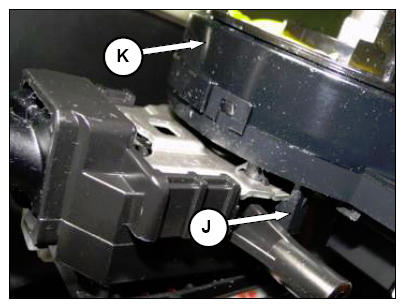

  10. Unlock the clock spring mounting hooks (J) located at the sides of the clock spring (K).
    G09424435

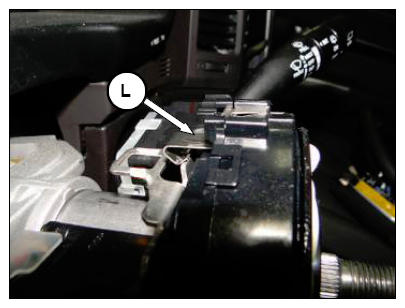

  11. Unlock the clock spring upper mounting hook (L) and remove the clock spring from the column shaft.
    G09424436
    G09424437

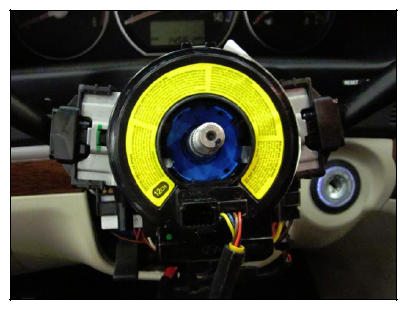

  12. Install a new clock spring to the steering column assembly. Connect the clock spring connectors under the clock spring.
    G09424438

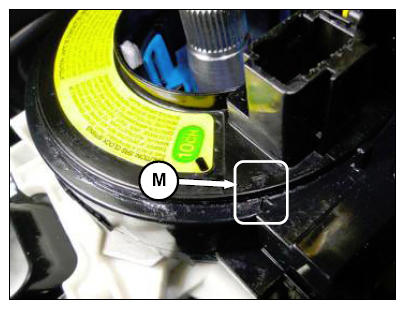

  13. When installing the clock spring, make sure to set the center position by aligning the marks between the clock spring and the cover. Align the marks (M) by turning the clock spring clockwise to the stop and then 2.0 revolutions counterclockwise.
    G09424439
  14. Reinstall all the parts removed in the reverse order of removal
  15. Perform the Steering Angle Sensor (SAS) calibration by following the procedures beginning on the next page and using the GDS.
    NOTE: Make sure that the steering is at the straight ahead position.

    Santa Fe GDS INSTALLATION&SAS CALIBRATION PROCEDURE

    G09424440

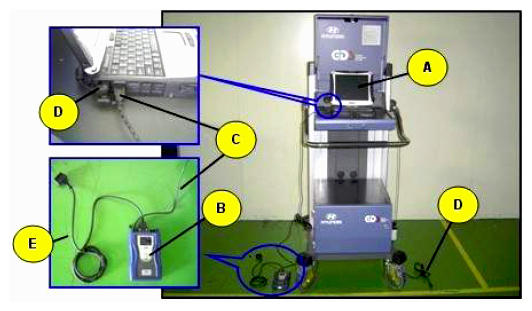

    A: Diagnostic terminal/B: VCI (Vehicle Communication Interface)/C: USB (Universal Serial Bus) cable/D: Power supply cable/E: DLC cable

    1. Connect the power supply cable to the diagnostic terminal.
    2. Connect the USB cable between the VCI and the diagnostic terminal.
    3. Connect the 16-pin DLC cable from the VCI into the vehicle's 16-pin connector under the driver side instrument panel.
    4. Turn on the VCI and the GDS diagnostic terminal with the ignition key in the ON position.

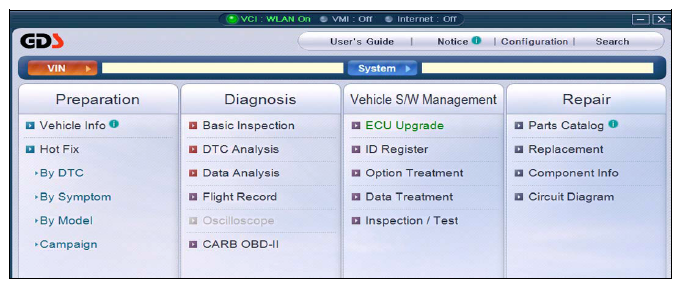

    5. Click to select Data Treatment  under the Vehicle S/W Management  section and the GDS will Auto VIN Detect.
      G09424441

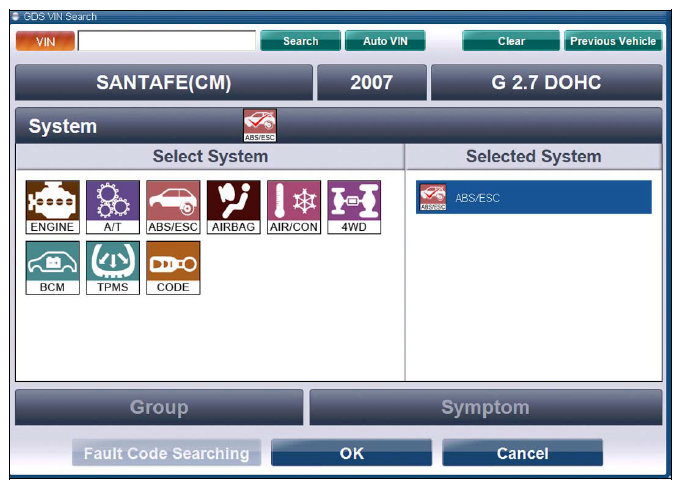

    6. Click to select ABS/ESC  as the system and then click OK  .
      G09424442

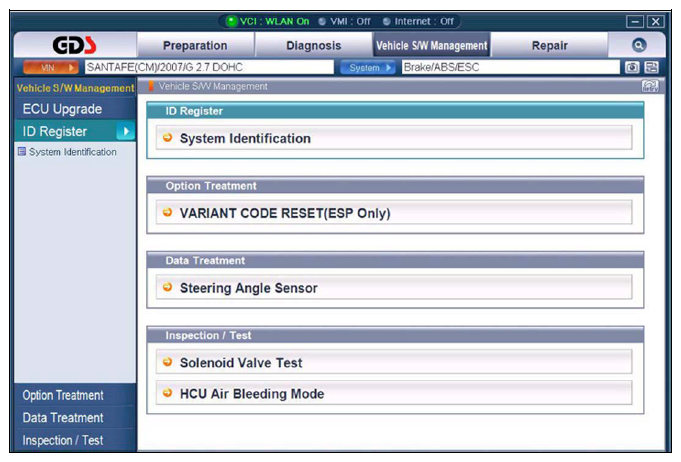

    7. Click to select Steering Angle Sensor  .
      G09424443

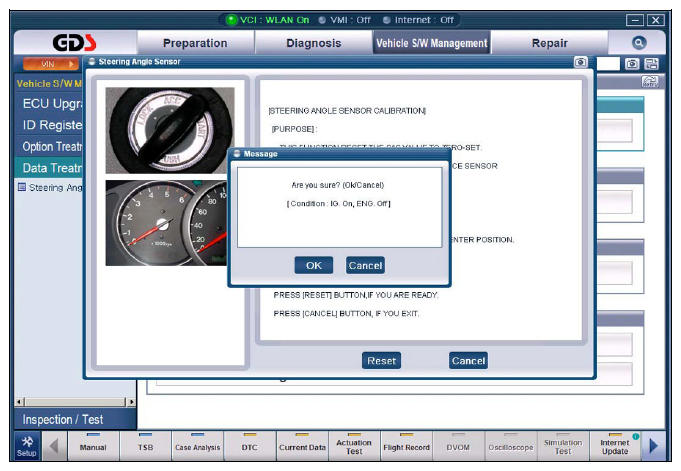

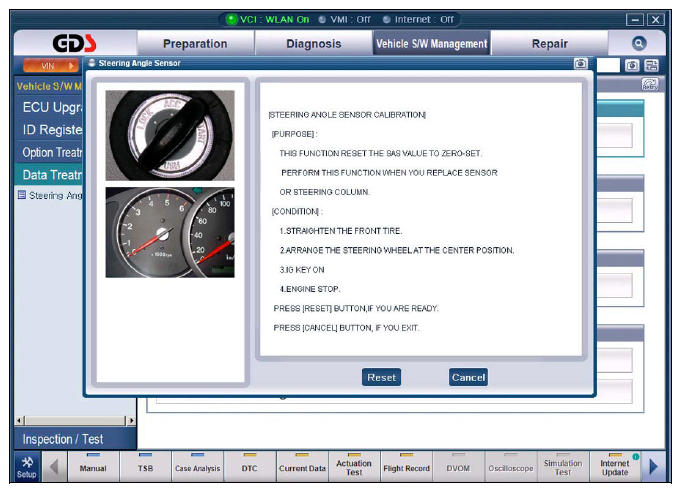

    8. Make sure that calibration conditions are met. Click Reset  button to calibrate and then click OK  to proceed with the calibration.
      G09424444
      G09424445

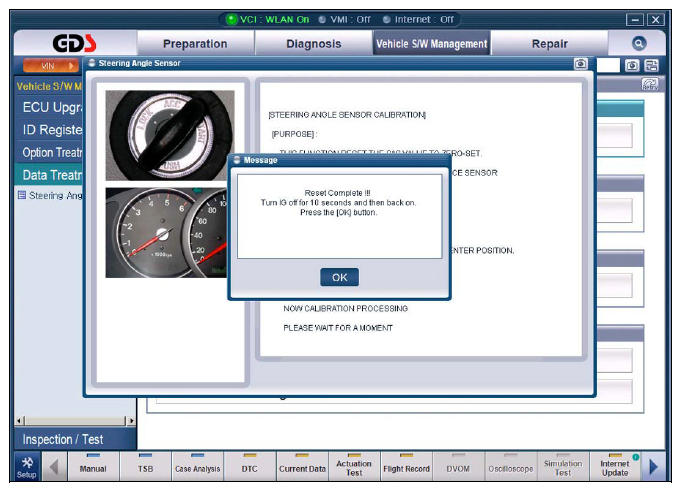

    9. After calibration is completed, click OK and turn the ignition OFF for 10 seconds.
      G09424446
  16. Check for any incidental Diagnostic Trouble Codes (DTCs) and clear any incidental DTC(s) if present.
  17. Start the engine to confirm proper operation of the vehicle, steering wheel related components and switches. Reset the customer's radio preset stations.

VERACRUZ REPLACEMENT PROCEDURE

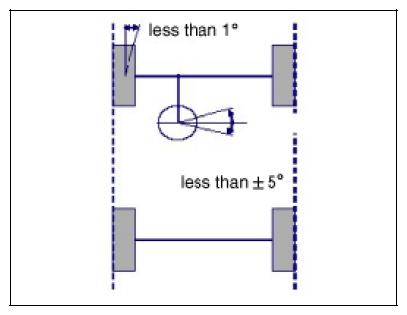

  1. Turn the steering wheel to the straight ahead position, and then hold the steering wheel within ±5°of straight ahead position.
    G09424447
  2. Turn the ignition ON and record customer's AM/FM/XM radio preset stations.

    Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.

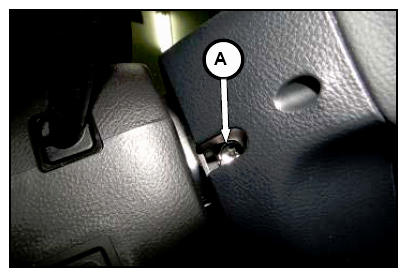

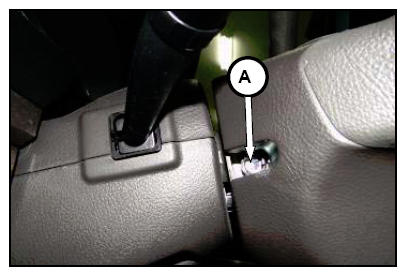

  3. Loosen and remove the steering wheel air bag mounting bolts (A) on both sides.

    Tightening Torque:

    5.7~7.9 lb-ft (7.9~10.7 Nm)

    G09424448

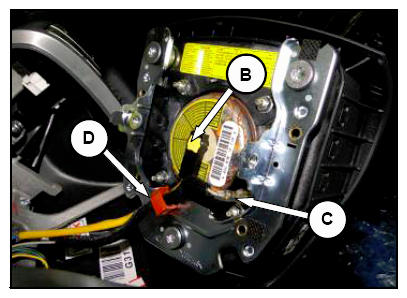

  4. Disconnect the airbag connector (B) after releasing the locking pin.

    Disconnect the horn connector (C), and then unclip the wiring mounting clip (D). Then remove the driver airbag module.

    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
    G09424449

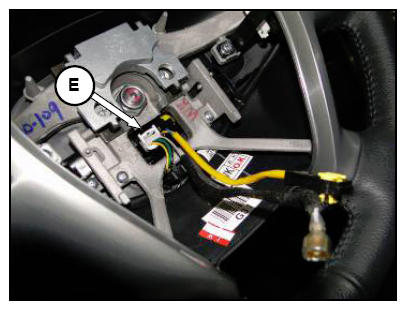

  5. Disconnect the steering wheel control switch connector (E).
    G09424450

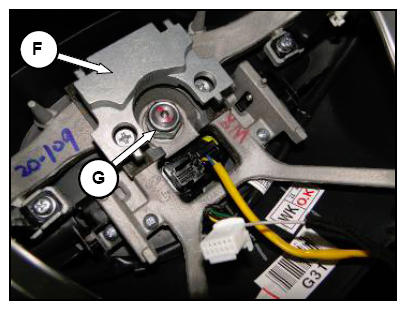

  6. Remove the dynamic damper (F).

    Remove the steering wheel lock nut (G).

    Tightening Torque:

    29 ~ 36 lb-ft (40 ~ 50 Nm)

    G09424451

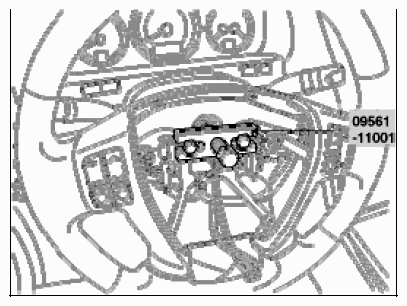

  7. After making alignment marks on the steering wheel and shaft for reinstallation, remove the steering wheel using SST 09561-11001 or a generic steering wheel removal tool.
    CAUTION: Do not hammer on the steering wheel to remove it.
    G09424452

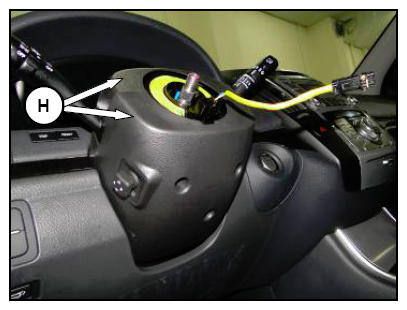

  8. Separate the steering column upper and lower shrouds (H) by loosening the mounting screws.

    Remove the steering column upper shroud.

    G09424453

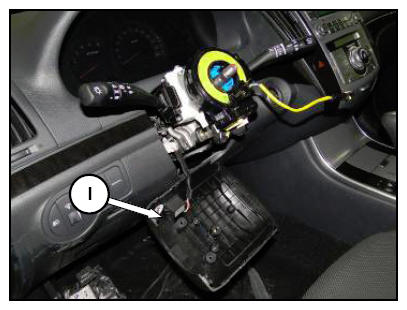

  9. Lower the lower shroud (I) away from the steering column with the steering wheel tilt and telescopic switch connected. (There is no need to completely detach the steering column lower shroud).
    G09424454

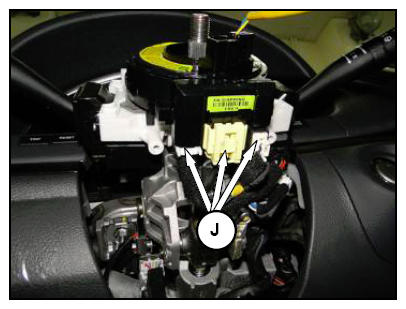

  10. Disconnect the connectors (J) under the clock spring.
    G09424455

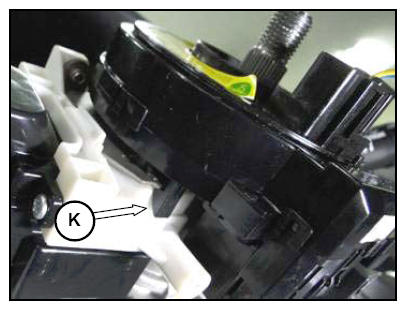

  11. Unlock the clock spring mounting hooks (K).
    G09424456

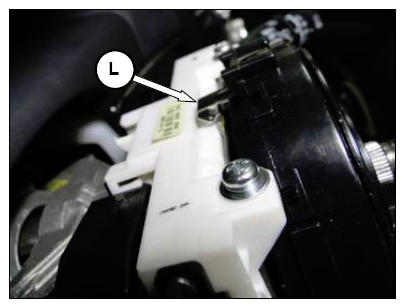

  12. Unlock the clock spring upper mounting hook (L) and remove the clock spring assembly from the column shaft.
    G09424457
    G09424458

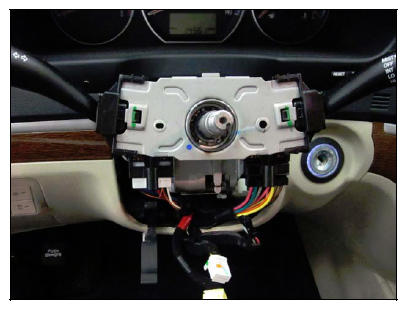

  13. Install a new clock spring to the steering column assembly. Connect the clock spring connectors under the clock spring.
    G09424459

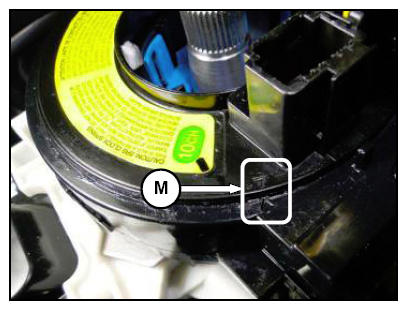

  14. When installing the clock spring, make sure to set the center position by aligning the marks between the clock spring and the cover. Align the marks (M) by turning the clock spring clockwise to the stop and then 2.0 revolutions counterclockwise.
    G09424460
  15. Reinstall all the parts removed in the reverse order of removal. Verify that the steering wheel is centered.
  16. Check for any incidental Diagnostic Trouble Codes (DTCs) and clear any incidental DTC(s) if present.
  17. Start the engine to confirm proper operation of the vehicle, steering wheel related components and switches.

    Reset the customer's radio preset stations.
