Blower and A/C Controls (Automatic)

BLOWER AND A/C CONTROLS (AUTOMATIC)

CONTROL PANEL

REPLACEMENT
1. Disconnect the negative (-) battery.




2. Remove the air vent panel (A) terminal.

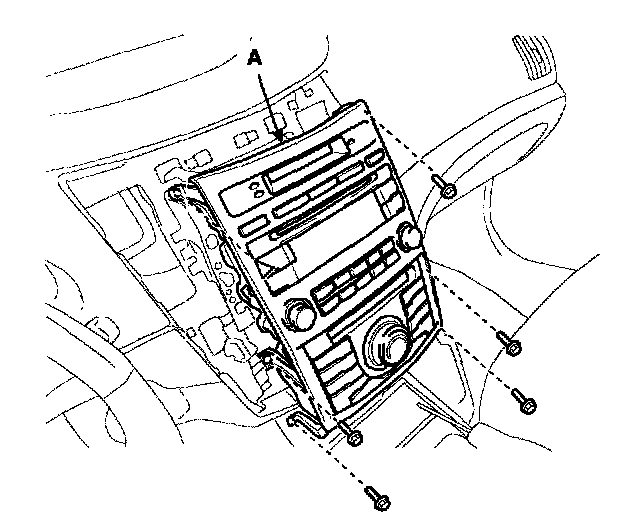

3. Remove the center facia panel (A) after loosening the screws (6EA).




4. Remove the heater & A/C controller (A) after loosening 4 screws.
5. Installation is the reverse order of removal.
