Motor And Controller Replacement

  1. Remove the over head console (See ROOF AREA ).
  2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).
  3. Installation is the reverse of removal.

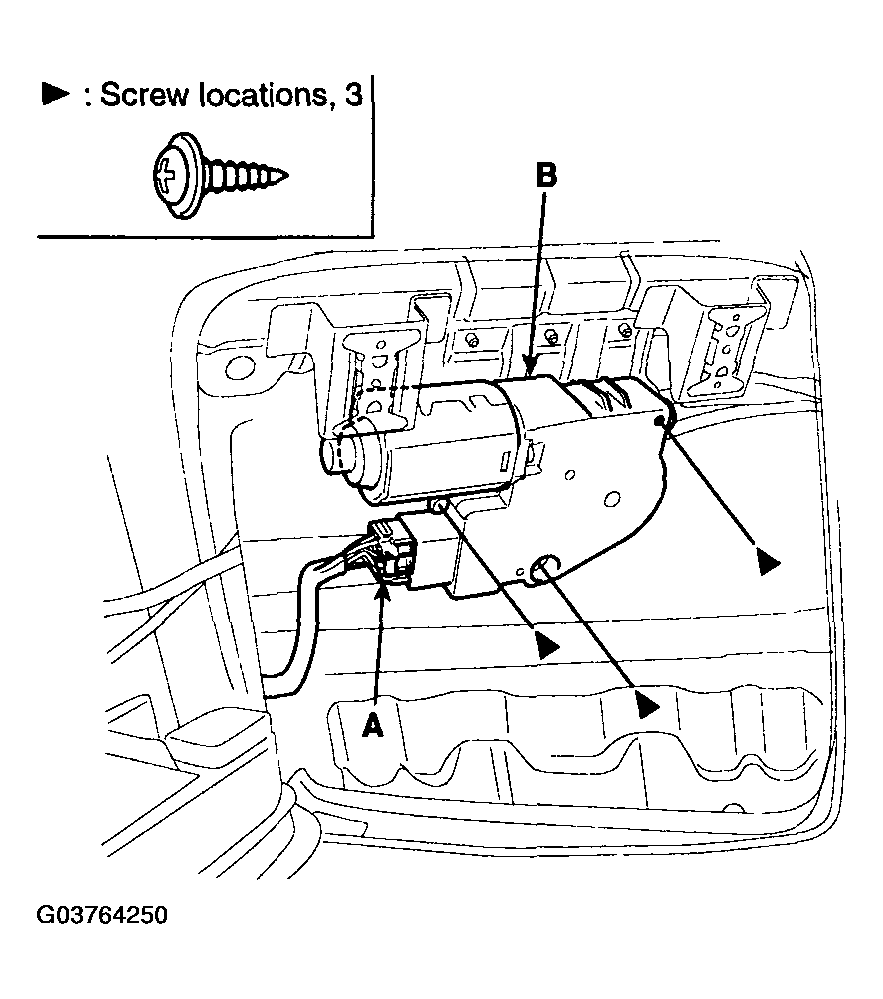

    Fig 1: Identifying Motor Connector And Motor
    G03764250Courtesy of HYUNDAI MOTOR CO.
