Signal Circuit Inspection

  1. Measure resistance between terminals 1 of the HO2S harness connector and 14 of the ECM harness connector.

    Specification: Approx. 0Ω

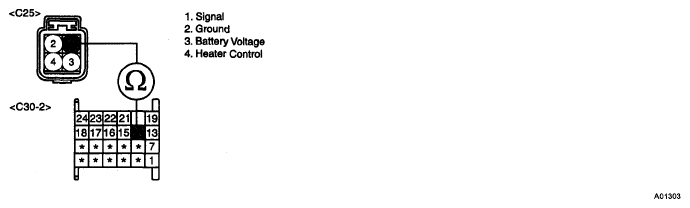

    Fig 1: Measuring Resistance Between HO2S Harness Connector And ECM Harness Connector
    G04810315Courtesy of HYUNDAI MOTOR CO.

    Is resistance within the specification?

    YES  : --> Go to "COMPONENT INSPECTION " procedure.

    NO  : --> Repair open in the ground circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
