Transfer Drive Gear: Reassembly

  1. Using a press machine, install the taper roller bearings (A) to the transfer drive gear.

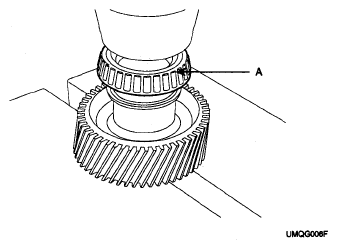

    Fig 1: Identifying Taper Roller Bearings To Transfer Drive Gear
    G04811105Courtesy of HYUNDAI MOTOR CO.
