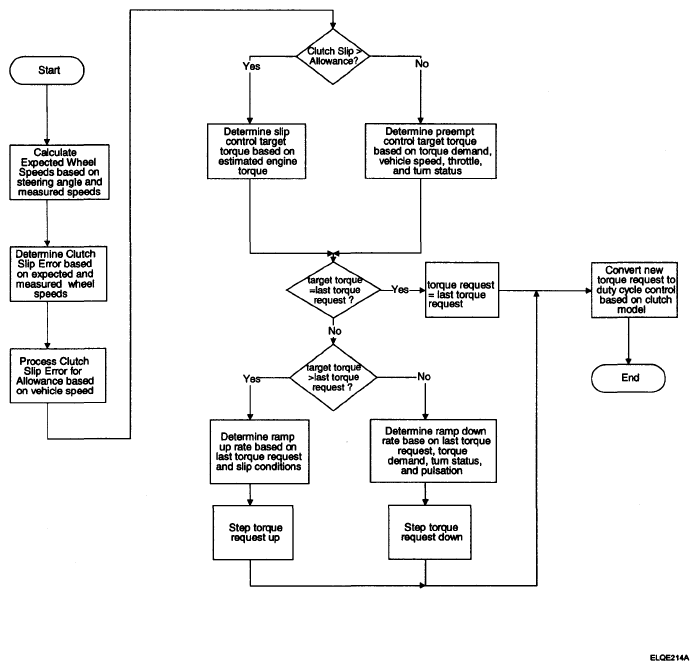

Control Algorithm Flow Chart
The base control algorithm of the ITM ECM is defined by the following flowchart:
Courtesy of HYUNDAI MOTOR CO.
