Power Flow Mechanism

  1. Input the information from each sensor in vehicle
    • Input torque (Throttle position sensor)
    • Cornering situation (Steering angle sensor)
    • Vehicle speed and different wheel speed front & rear (Wheel speed sensor)
    • Braking situation (Brake signal and ABS signal)
  2. Distributed the required driving force after 4WD ECU operates.
  3. EMC (Electric Magnetic Clutch) operates the primary clutch.

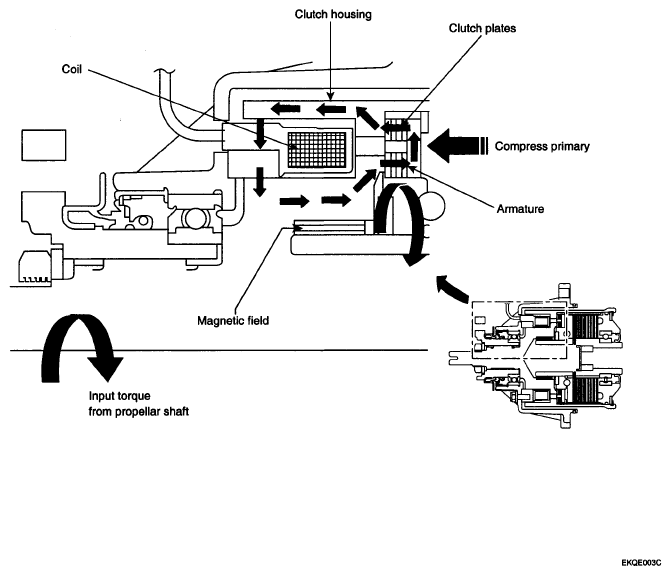

    Fig 1: Identifying Power Flow Mechanism (1 Of 3)
    G04810987Courtesy of HYUNDAI MOTOR CO.
  4. Control the cam's opening gap by operation of primary clutch.

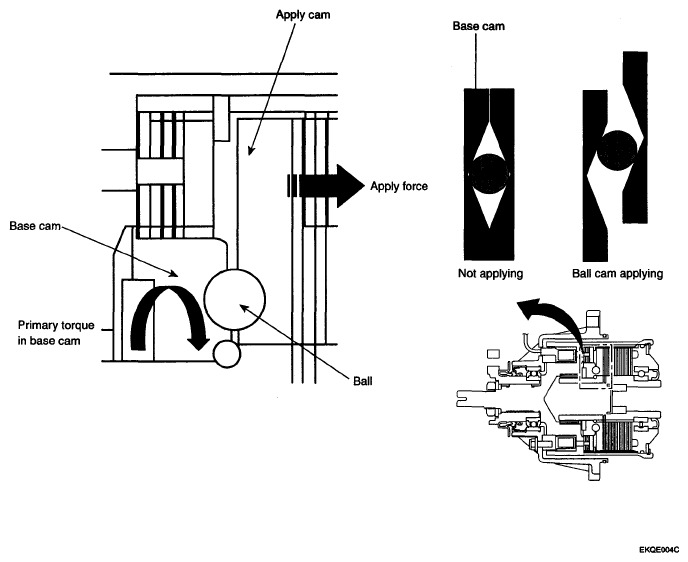

    Fig 2: Identifying Power Flow Mechanism (2 Of 3)
    G04810988Courtesy of HYUNDAI MOTOR CO.
  5. Control the slip of inner & outer plate

    Control variably the driving force distribution to optimize front & rear driving force.

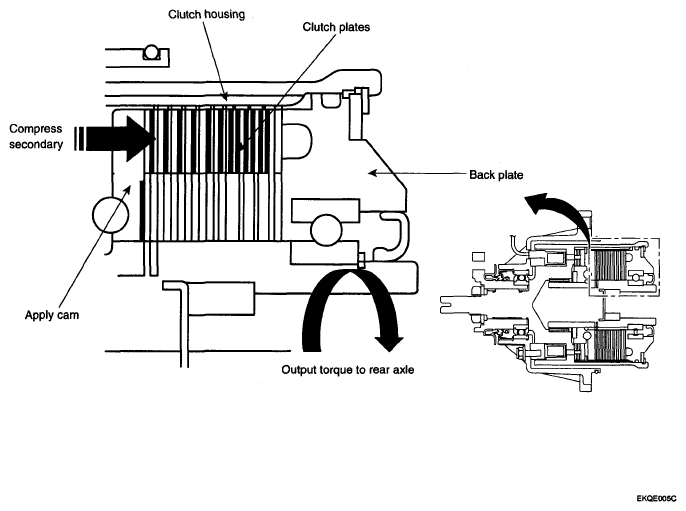

    Fig 3: Identifying Power Flow Mechanism (3 Of 3)
    G04810989Courtesy of HYUNDAI MOTOR CO.
