Coupling Assembly: Components

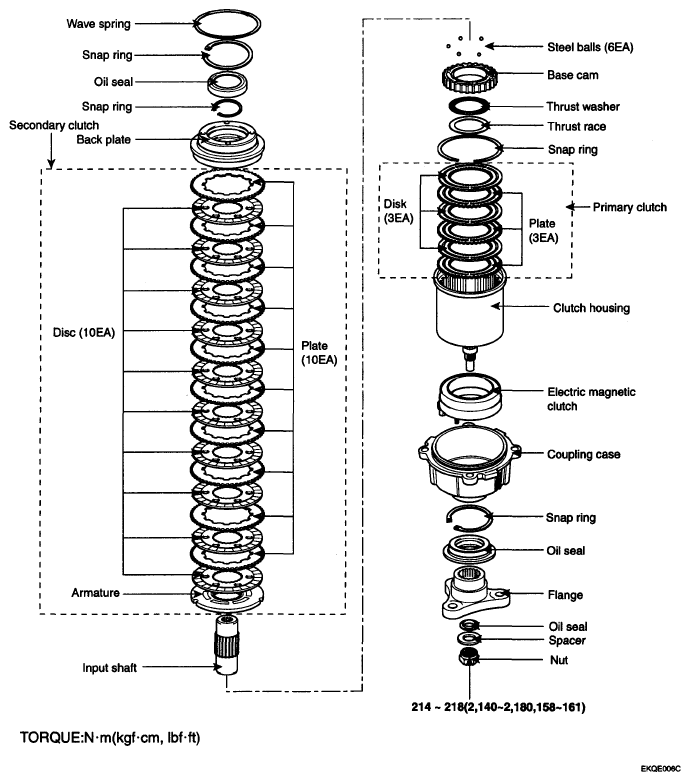

Fig 1: Identifying Coupling Assembly Components
G04811125Courtesy of HYUNDAI MOTOR CO.
