Schematic Diagram

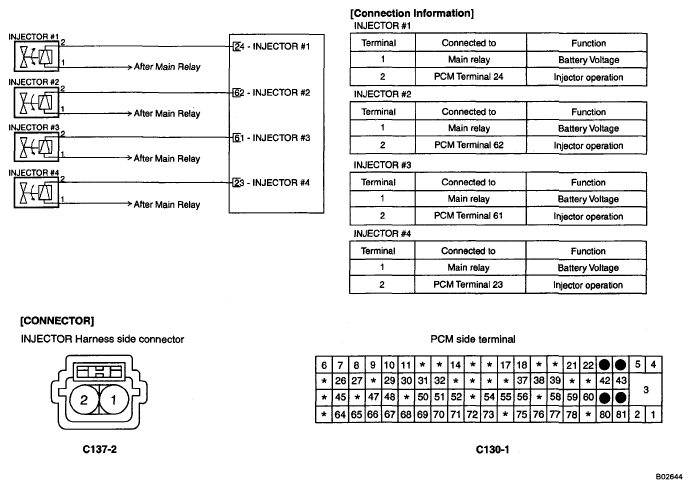

Fig 1: Cylinder 2-Injector Circuit High Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
