Power Supply Check

Power Supply Check:

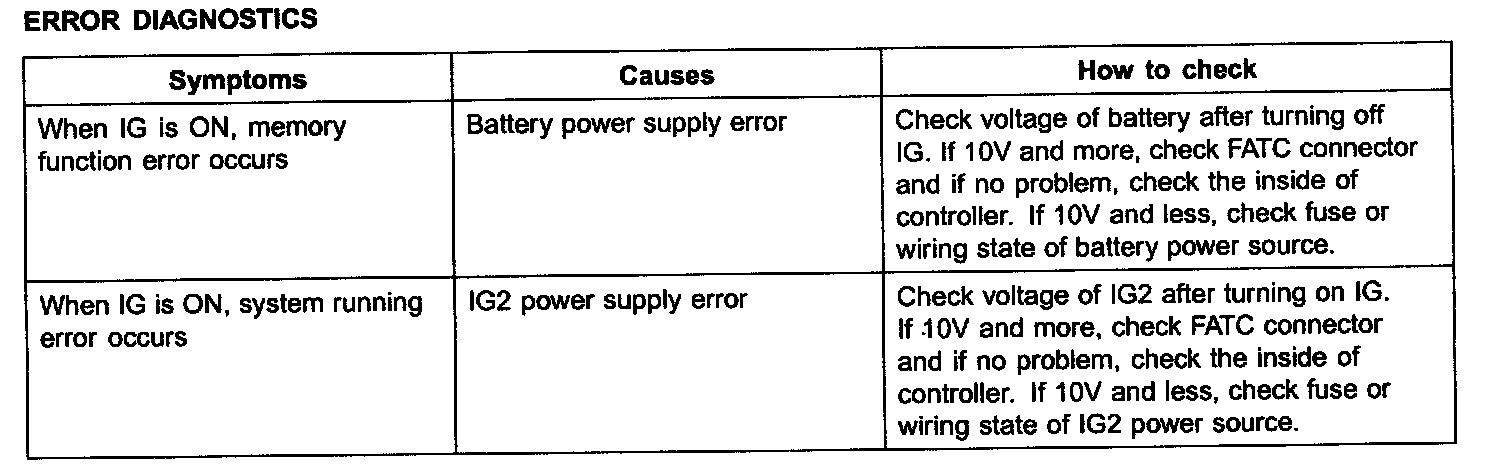

Error Diagnostics:

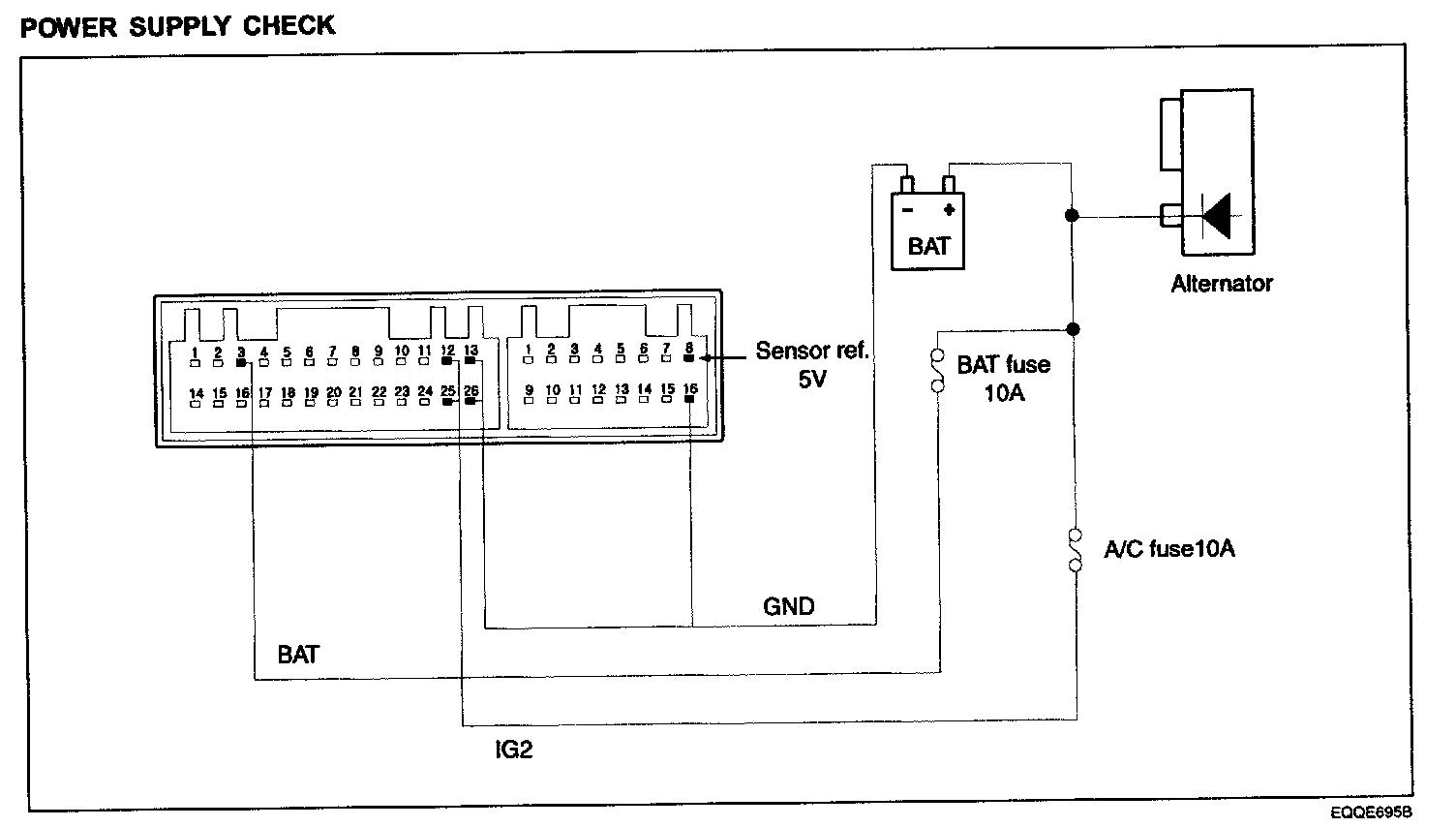

POWER SUPPLY CHECK
In turning off IGN, battery supplies power for ordinary power, FATC connector A3 through battery fuse. FATC performs memory function by means of battery power supplied as described above. In turning on IGN, alternator is driven. At this time, IG2 power generated in alternator FATC connector A12 and A25 terminal through IG2 fuse and air conditioner fuse 10A. FAT carried out actual system operation by means of IG2 power supplied as described above.
