Relay Box (Passenger Compartment)

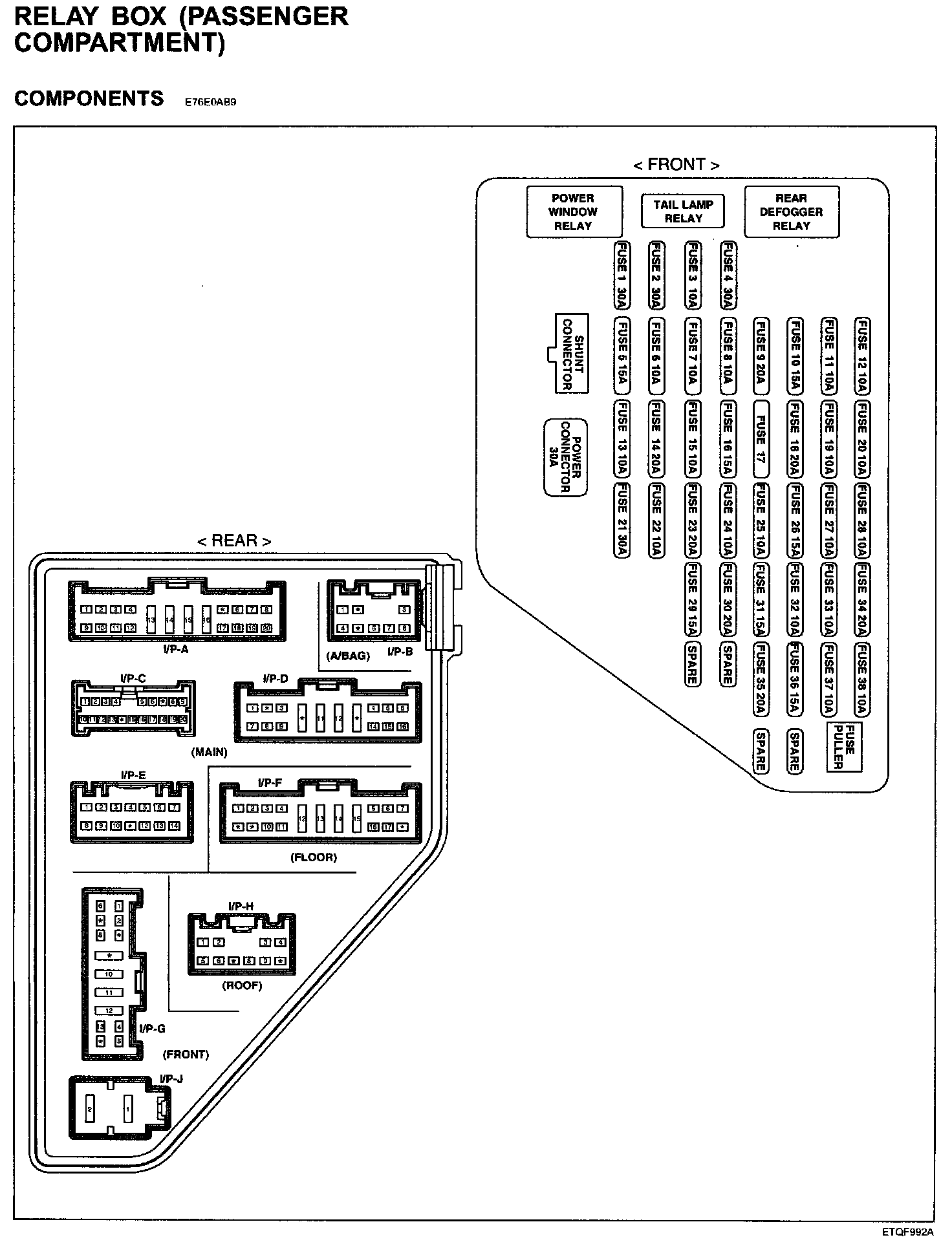

Relay Box (Passenger Compartment) - Components (Part 1):

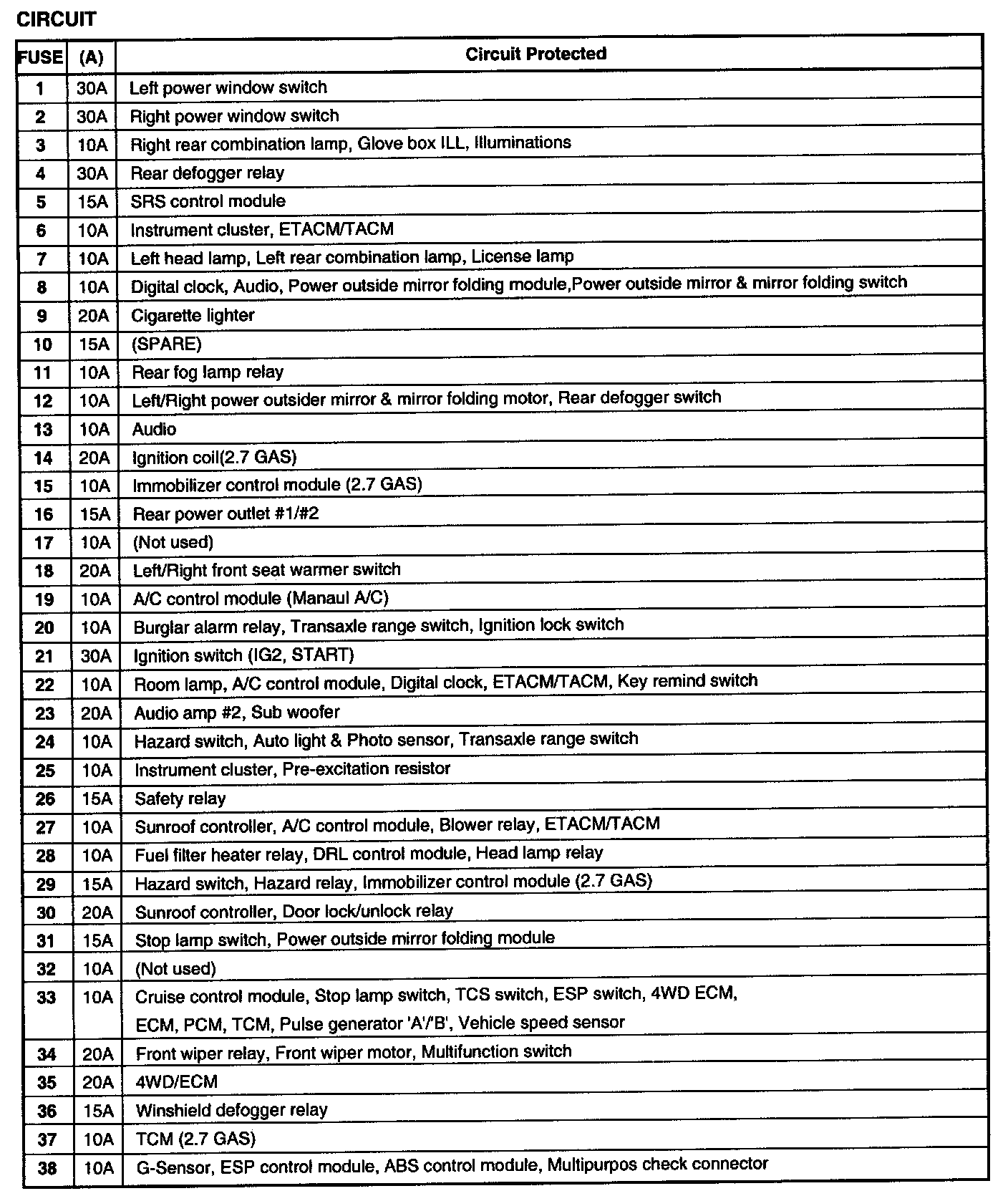

Relay Box (Passenger Compartment) - Components (Part 2):



Relay Box (Passenger Compartment) - Components (Part 3):
