Coolant Temperature Sensor / Switch HVAC: Service and Repair

WATER TEMPERATURE SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.




2. Remove the crash pad lower panel (A).

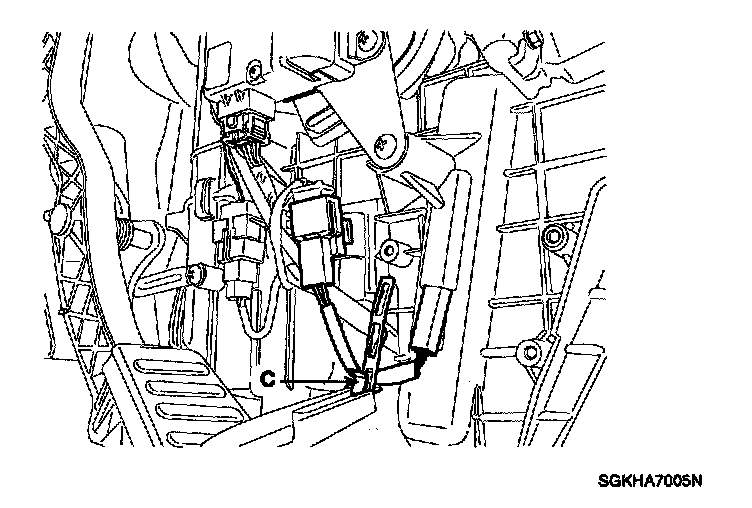

3. Pull the water temperature sensor out at the heater unit with the clamp (C).
4. Install in the reverse order of removal.

NOTE:
- Apply caulk to the water temperature sensor.
- Make sure that there is no air leakage.
