Hyundai
>>
2007
>>
Tiburon GS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4GC-GSL 2.0L)
>>
DTC Troubleshooting Procedures
>>
DTC P0130 Ho2S Circuit (Bank 1/Sensor 1)
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

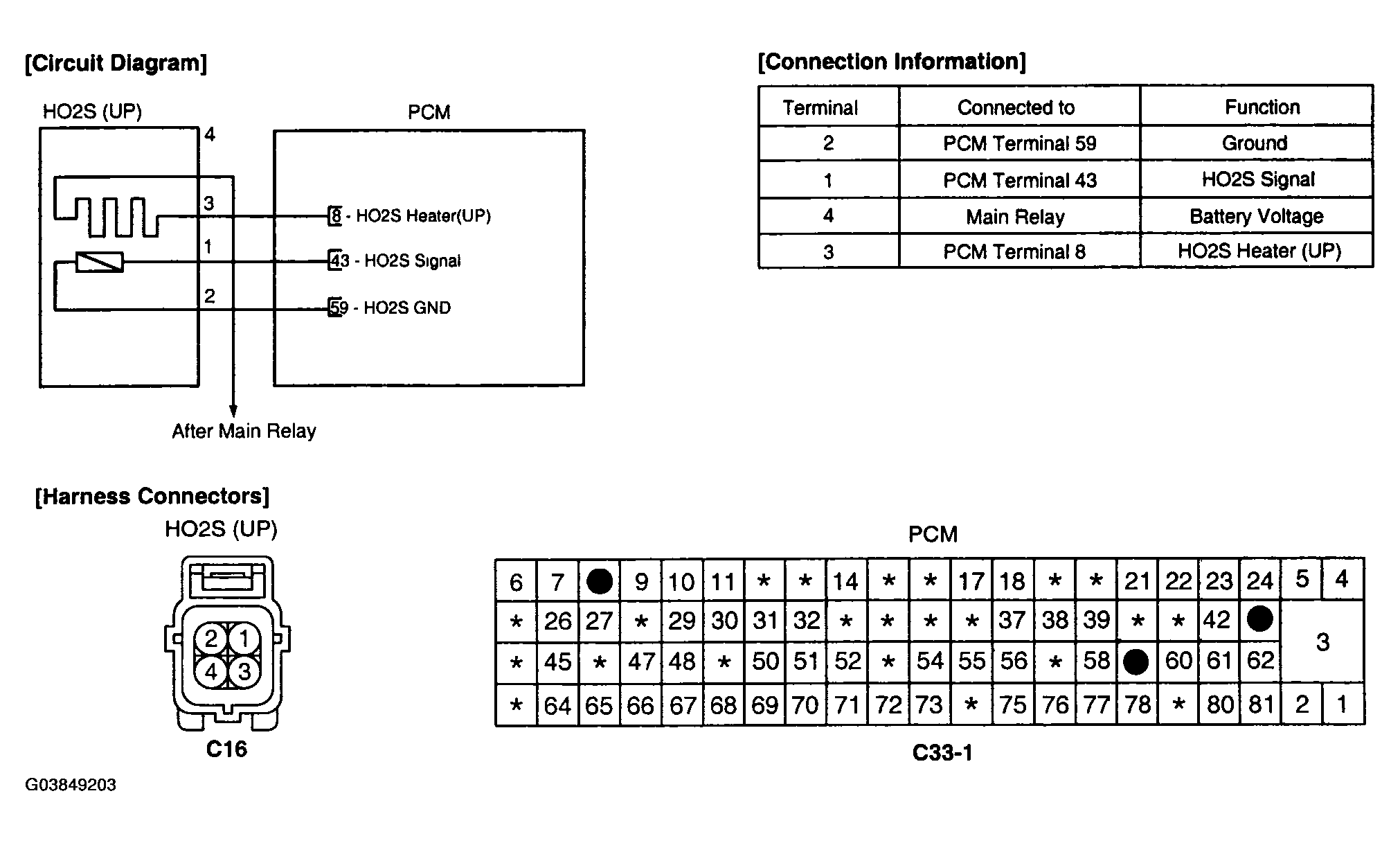

Fig 1: Schematic Diagram - HO2S Circuit (Bank 1/Sensor 1)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
