Removal and Replacement

HEATER CONTROL UNIT REPLACEMENT

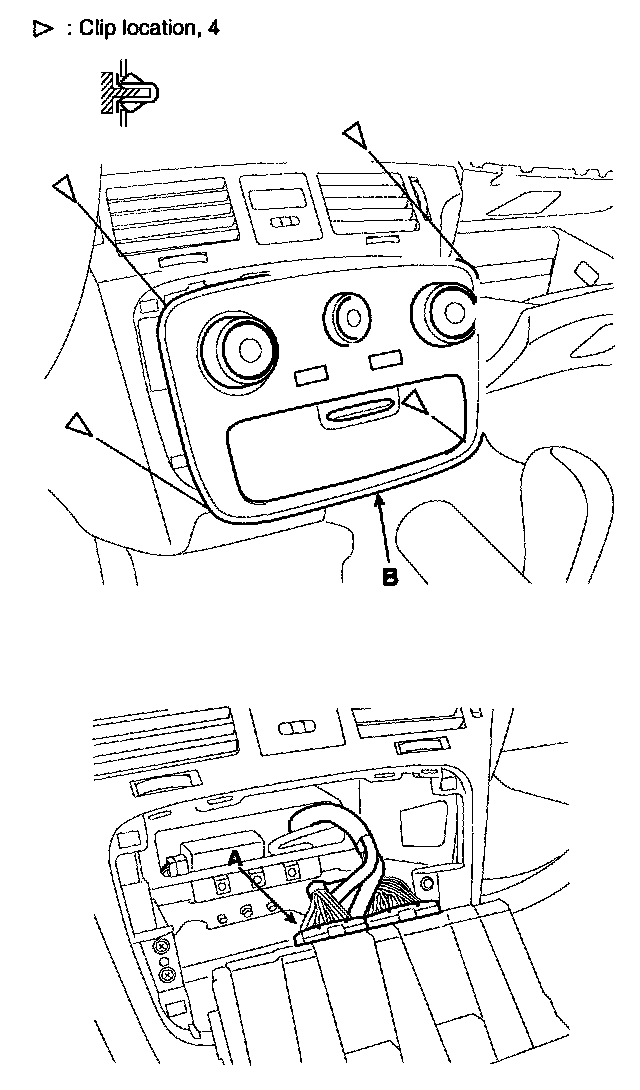

1. After disconnecting the connector (A), remove the center facia lower panel (B).






2. Loosening the heater control mounting screw, remove heater control unit (C).






3. Installation is the reverse of removal.

NOTE: Make sure the connector is plugged in properly.
