Control Algorithm Flow Chart

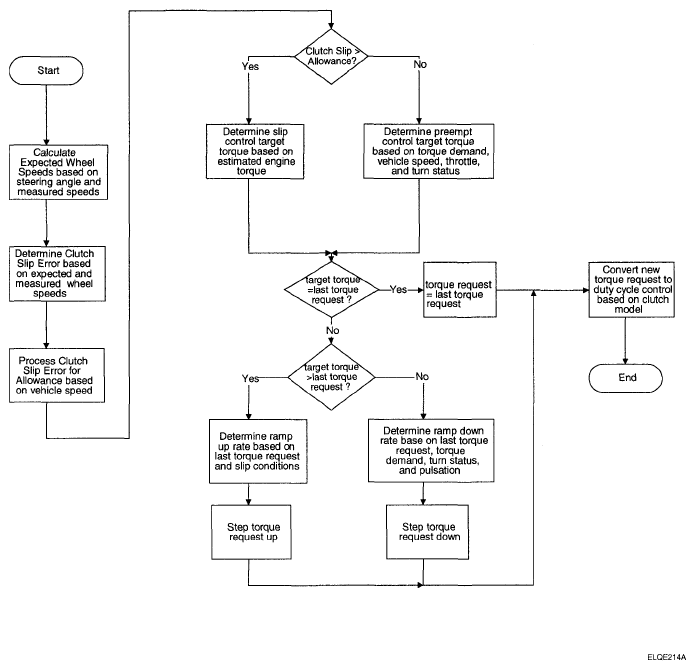

The base control algorithm of the ITM ECM is defined by the following flowchart:

Fig 1: Control Algorithm Flow Chart
G05348244Courtesy of HYUNDAI MOTOR CO.
