Manual Transaxle Shift Control System: Removal

Remove the upper cover (A) from the center console.

Fig 1: Identifying Upper Cover From Center Console
Courtesy of HYUNDAI MOTOR CO.
Remove the center console. (see INTERIOR )

Fig 2: Identifying Center Console
Courtesy of HYUNDAI MOTOR CO.
Remove the snap pin (A) from the select cable and the clips (B).

Fig 3: Identifying Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Remove the clip (A) from the shift cable.

Fig 4: Identifying Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.

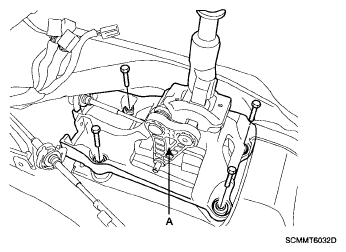

Remove the shift lever assembly (A).

Fig 5: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and the nuts (B).

Fig 6: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.
Remove the cable assembly from the transaxle. (see TRANSAXLE REMOVAL )
Remove the select and shift cable assemblies.
