Manual Transaxle Shift Control System: Installation

Install the cable assembly placing the select and shift lever in neutral position. (see to INSTALLATION )
Install the retainer (A) and nuts (B).

Fig 1: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever assembly (A).
TORQUE:

9~14 Nm (0.9~1.4 kgf.m, 6~9.5 lb-ft)

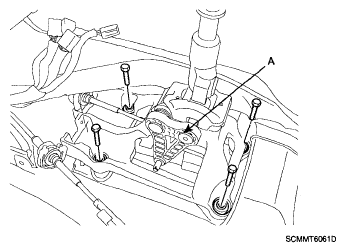

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the clip (A) connecting the shift cable and the shift lever.

Fig 3: Identifying Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.
NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction.

Fig 4: Adjusting Slide Clip Fit Into Select Lever Moving Slide Clip
Courtesy of HYUNDAI MOTOR CO.
Install the guide member (A) of the select cable (B).

Fig 5: Identifying Guide Member
Courtesy of HYUNDAI MOTOR CO.
Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
NOTE: Insert the slide clip in the direction as shown in the illustration.

Fig 6: Adjusting Slide Clip To Fit Into Select Lever Pin
Courtesy of HYUNDAI MOTOR CO.
Install the center console (A).

Fig 7: Identifying Center Console
Courtesy of HYUNDAI MOTOR CO.
Install the upper cover (A) to the center console.

Fig 8: Identifying Upper Cover From Center Console
