Electronic Brake Control Module: Testing and Inspection

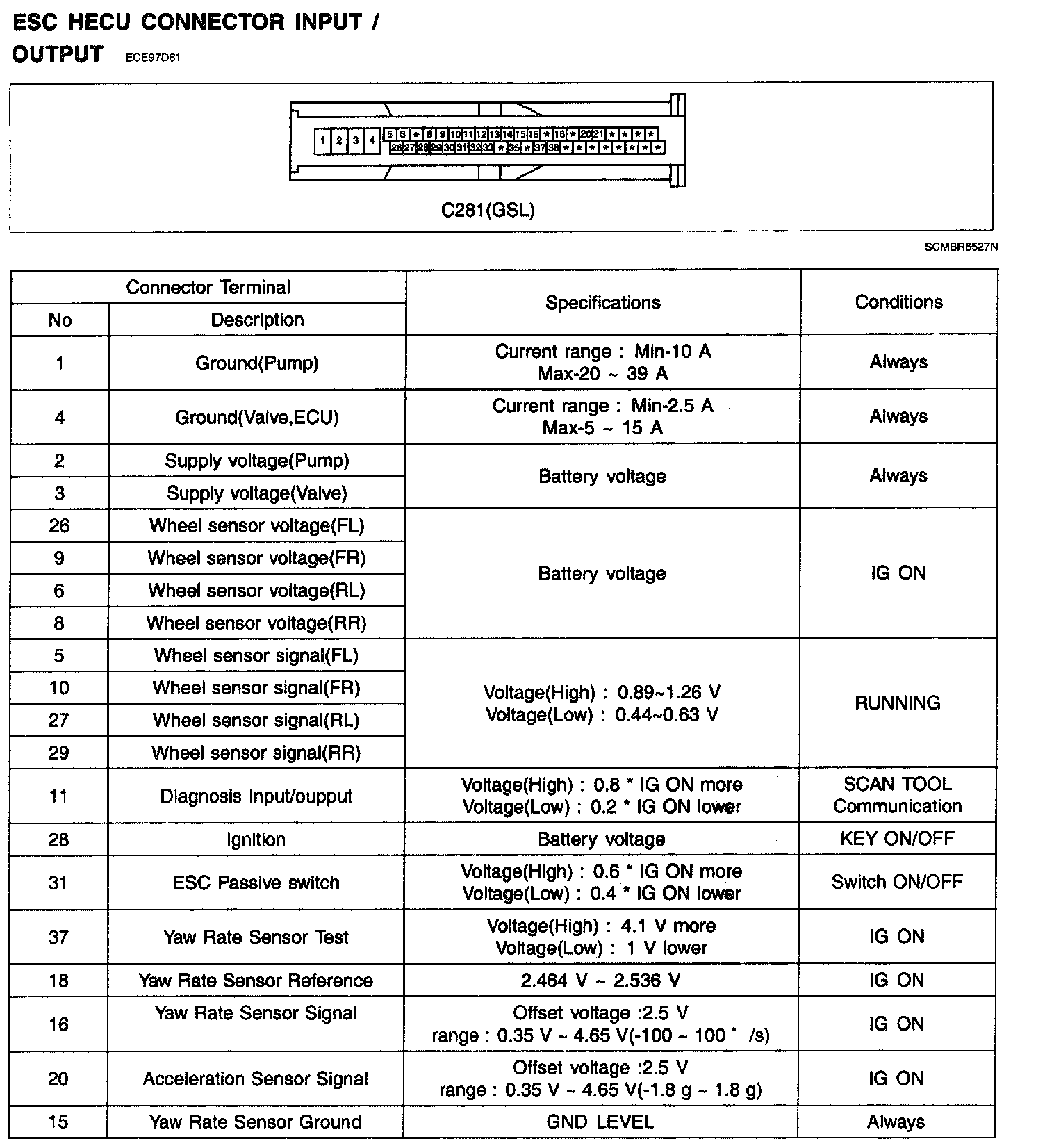

ESC HECU CONNECTOR INPUT / OUTPUT:



ESC HECU CONNECTOR INPUT / OUTPUT:
