DVD Player

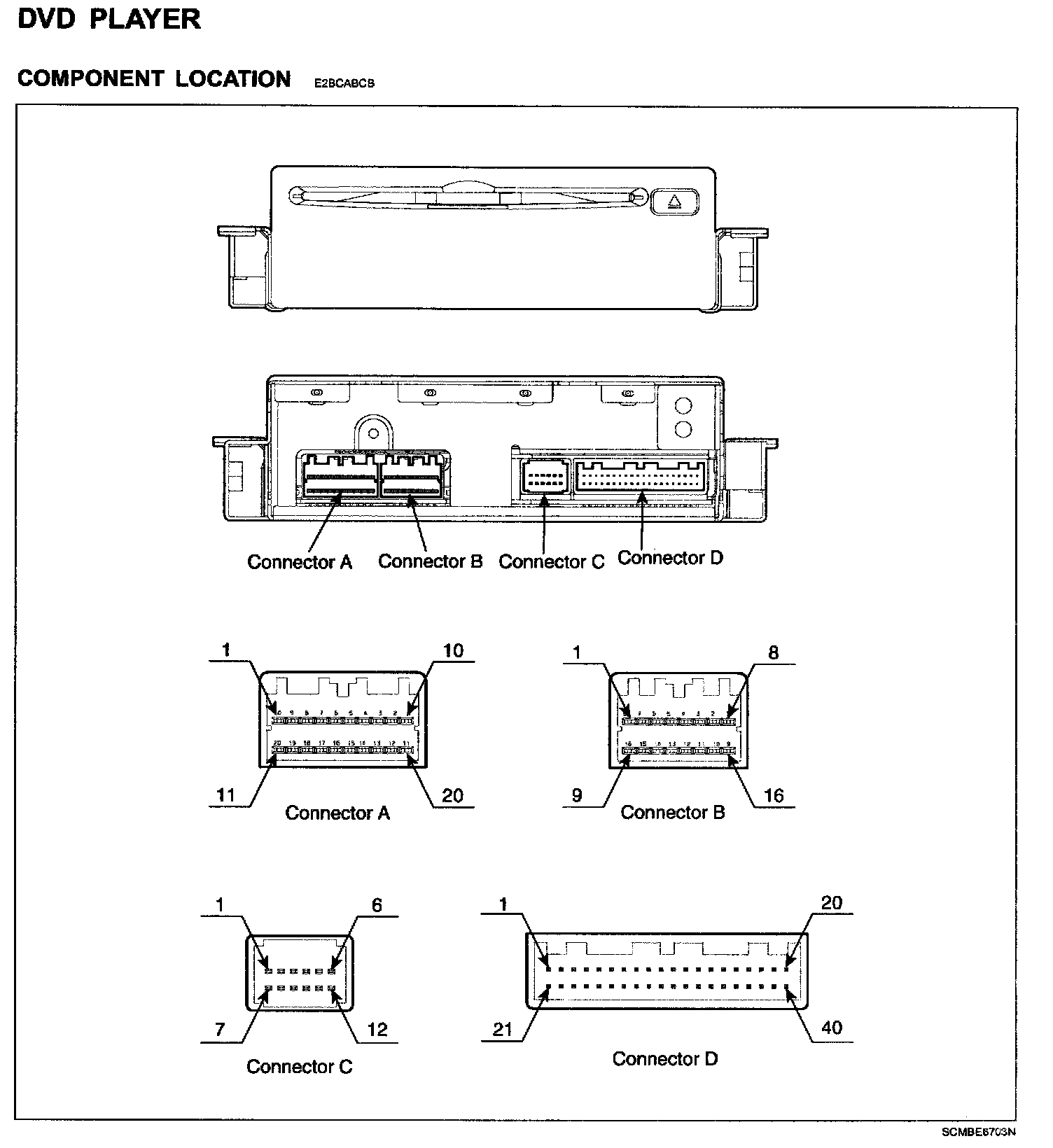

DVD Player - Component Location:

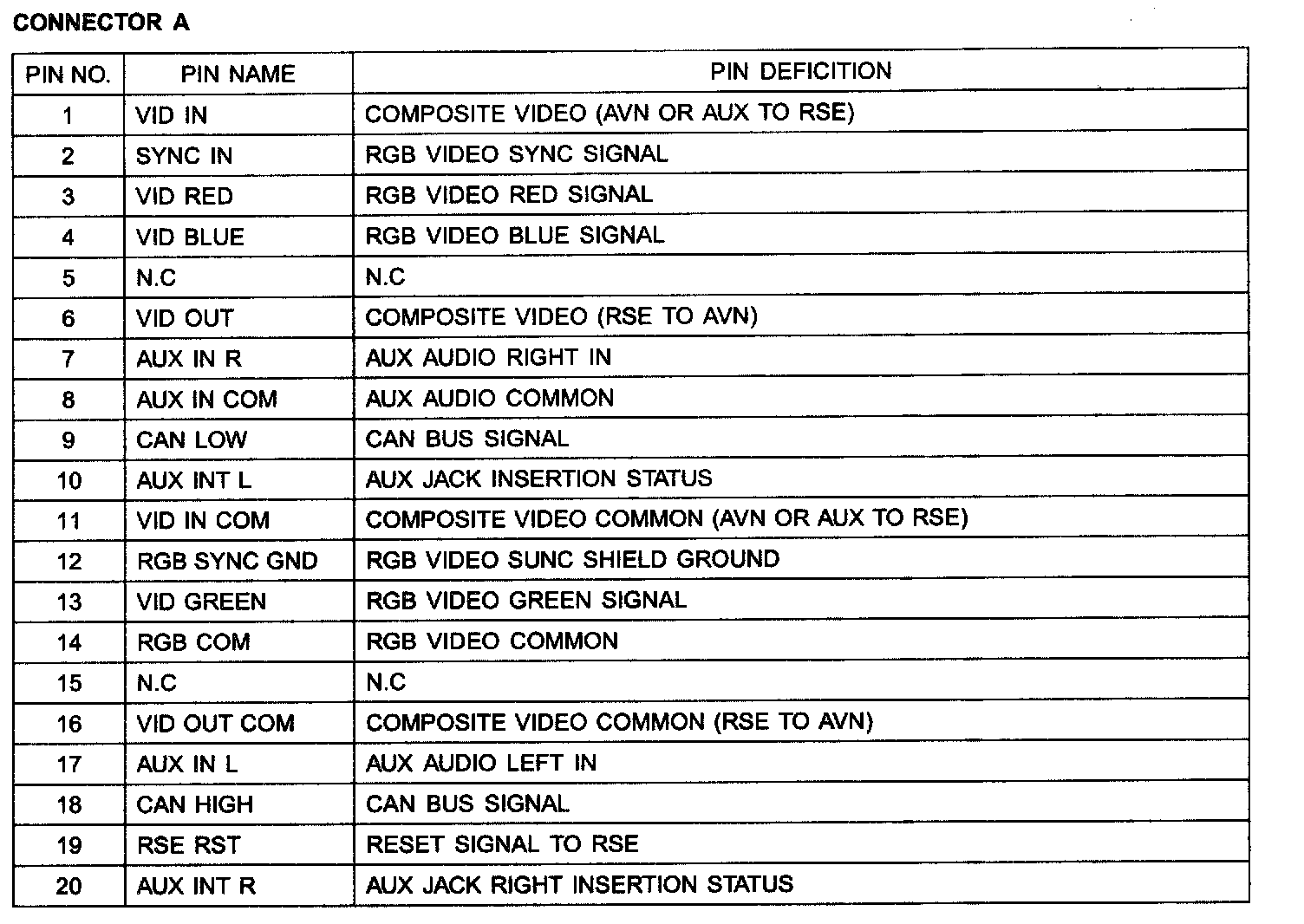

Connector A:

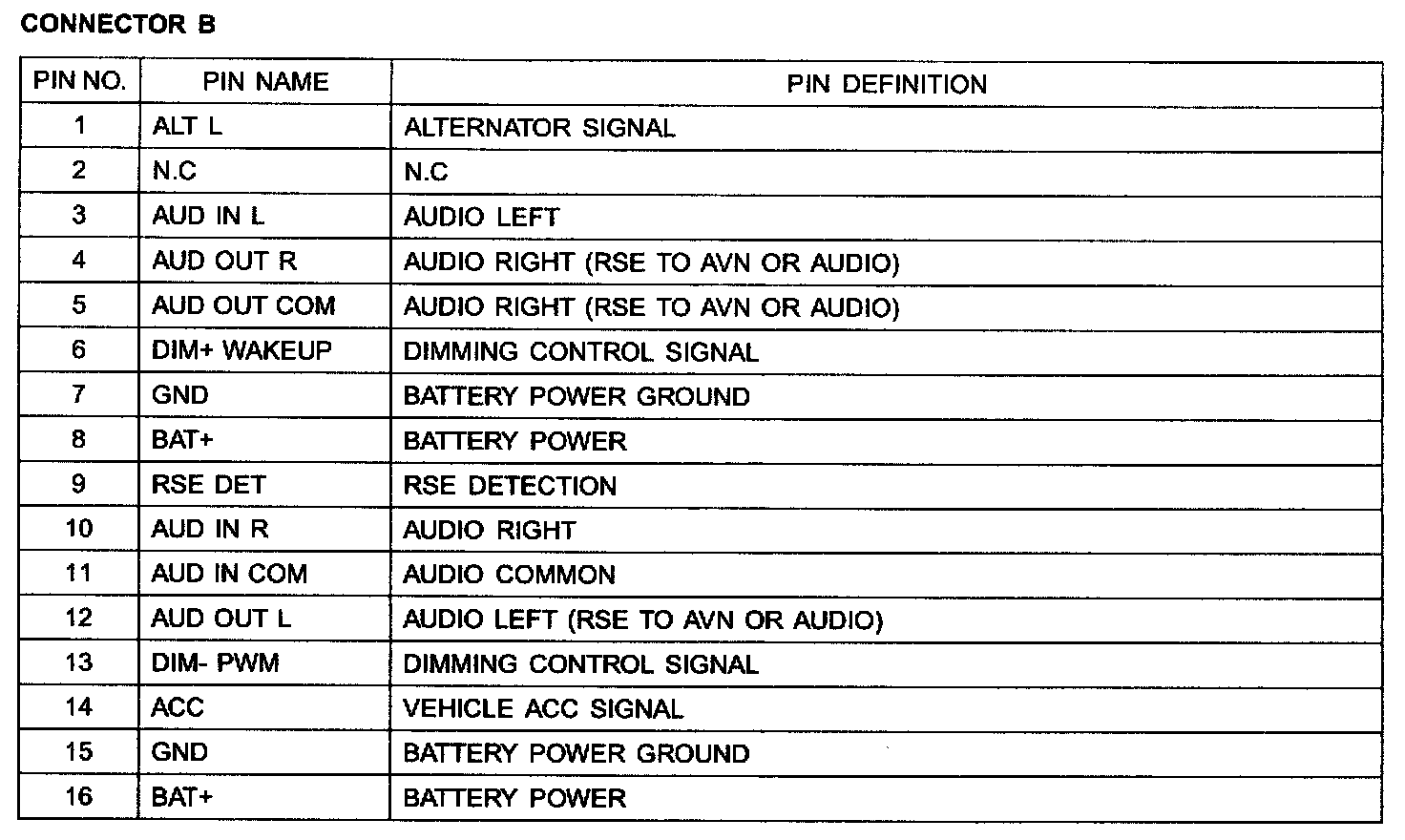

Connector B:

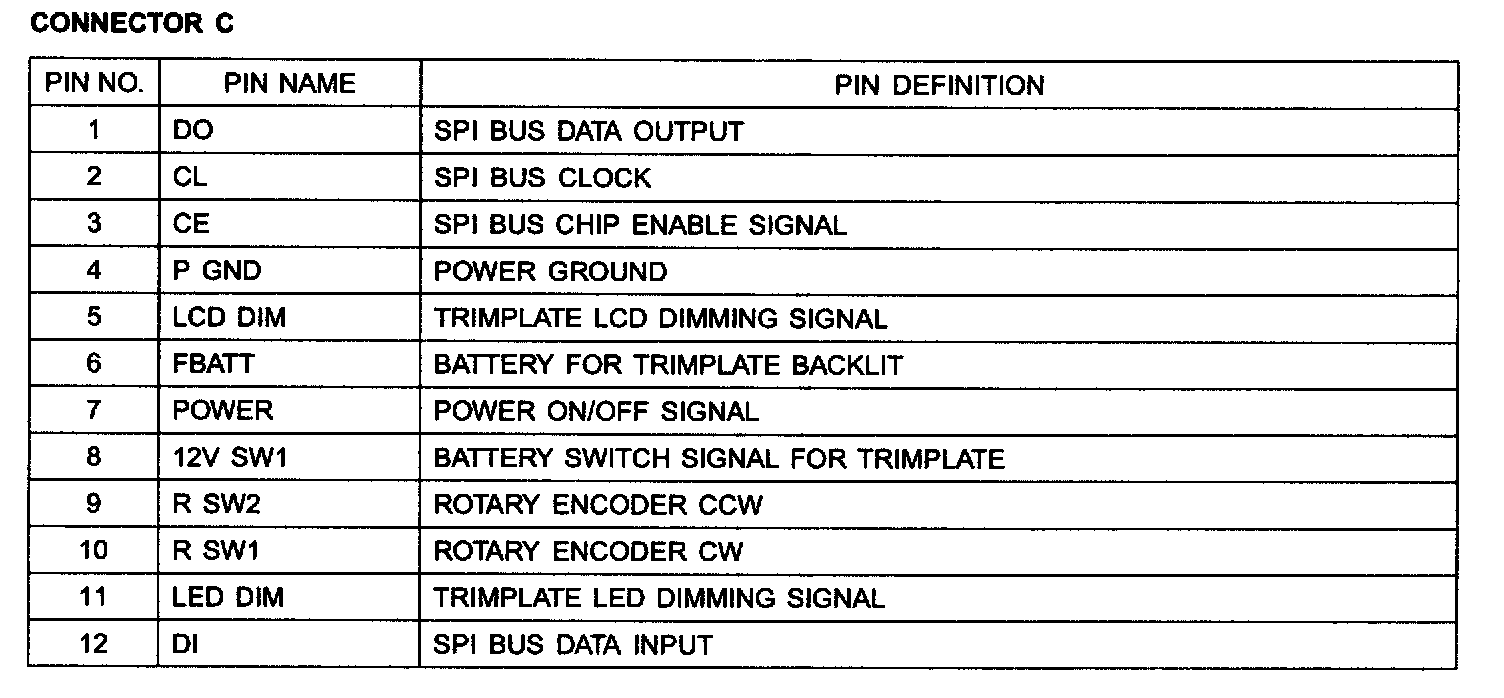

Connector C:

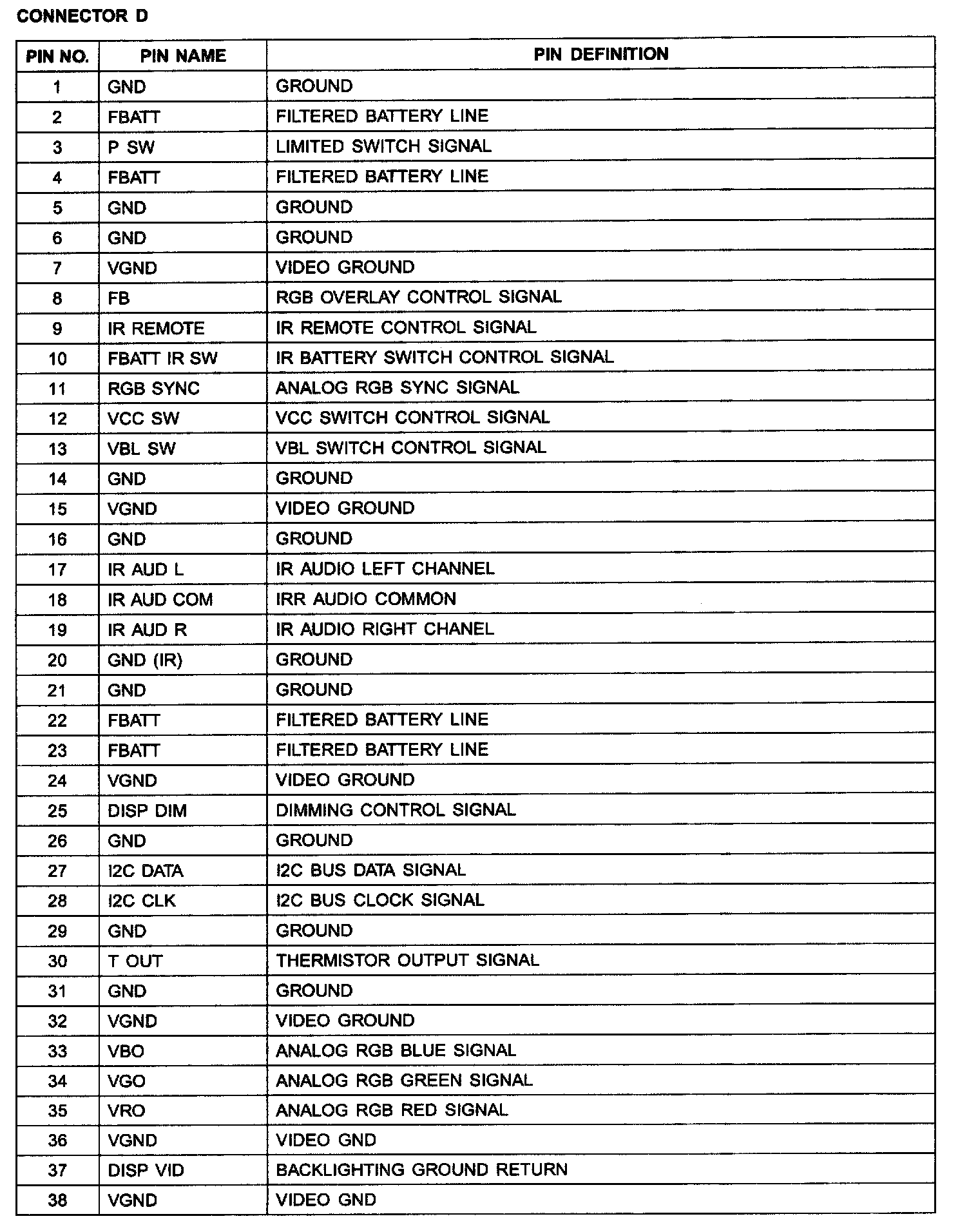

Connector D (Part 1):



Connector D (Part 2):
