ESC Switch: Inspection

Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

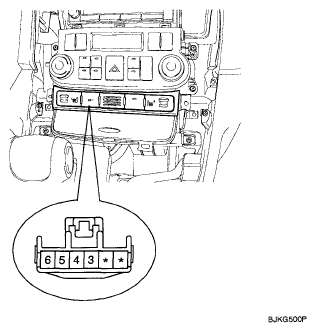

Fig 1: Identifying ESC Off Switch From Switch Panel
Courtesy of HYUNDAI MOTOR CO.
Check the continuity between the switch terminals as the ESC OFF switch is engaged.

Fig 2: ESC Switch Connector Terminal Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
