Component Inspection

  1. Check powerwindow motor
    1. Connect scantool to Data Link Connector (DLC).
    2. Ignition "ON" & engine "OFF"
    3. Select 'ACTUATION TEST' mode on scantool and press [F1] to start

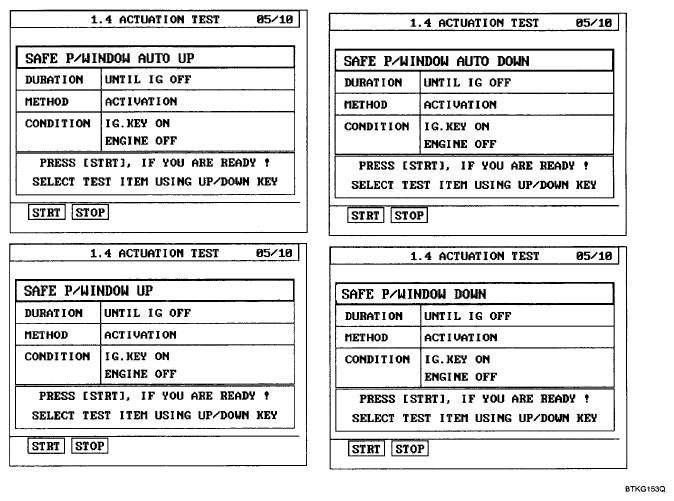

      Fig 1: Diagnosis Tool Display - ACTUATION TEST
      G05325046Courtesy of HYUNDAI MOTOR CO.
    4. Does powerwindow motor work properly?

      YES

      Go to " 2Check DDM" procedure.

      NO

      Substitute with a known-good left outside mirror and check for proper operation.

      If the problem is corrected, replace left outside mirror and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  2. Check DDM
    1. Connect scantool to Data Link Connector (DLC).
    2. Ignition "ON" & engine "OFF"
    3. Substitute with a known-good DDM and Check if the DTC is erased.
    4. Is the DTC erased?

      YES

      Substitute with a known-good DDM and check for proper operation.

      If the problem is corrected, replace DDM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO

      Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
