Monitor SCANTOOL Data

VARIANT CODE

Check for improper installation of PCM (ECM & TCM)/ESC.
Connect scantool to Data Link Connector (DLC).
Ignition "ON".
Go in Anti-Lock brake system (figure 1).
Perform variant code.
Disconnect scantool.
Ignition "OFF" and then ignition "ON". Go to "COMPONENT INSPECTION " Procedure.

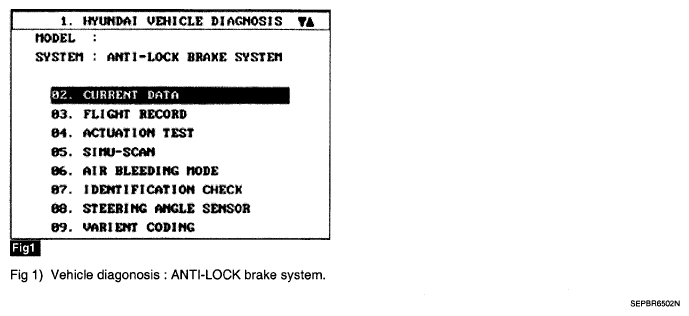

Fig 1: Identifying Scan Tool Display Screen - HYUNDAI VEHICLE DIAGNOSIS

Courtesy of HYUNDAI MOTOR CO.
