Battery Diagnostic Test (1)
>>
Checking Flow
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Checking Flow

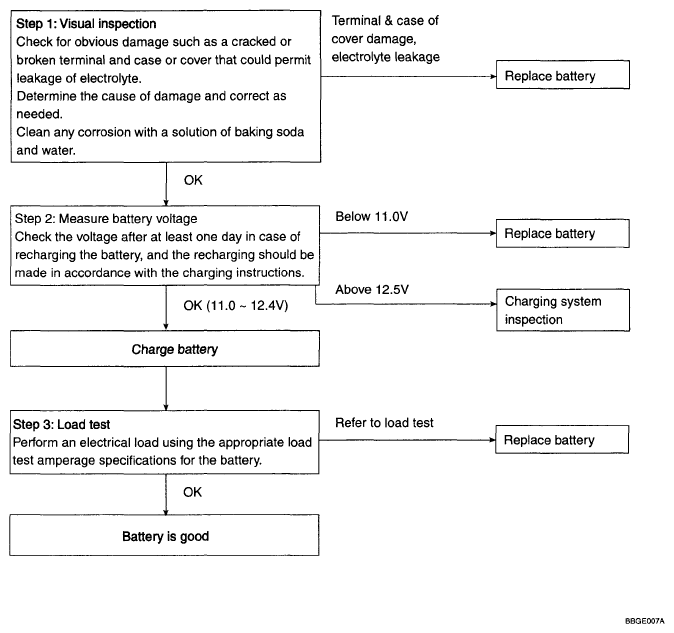

Fig 1: Battery Diagnostic Test Flow Chart
Courtesy of HYUNDAI MOTOR CO.
