Power Steering Oil Pump: Components

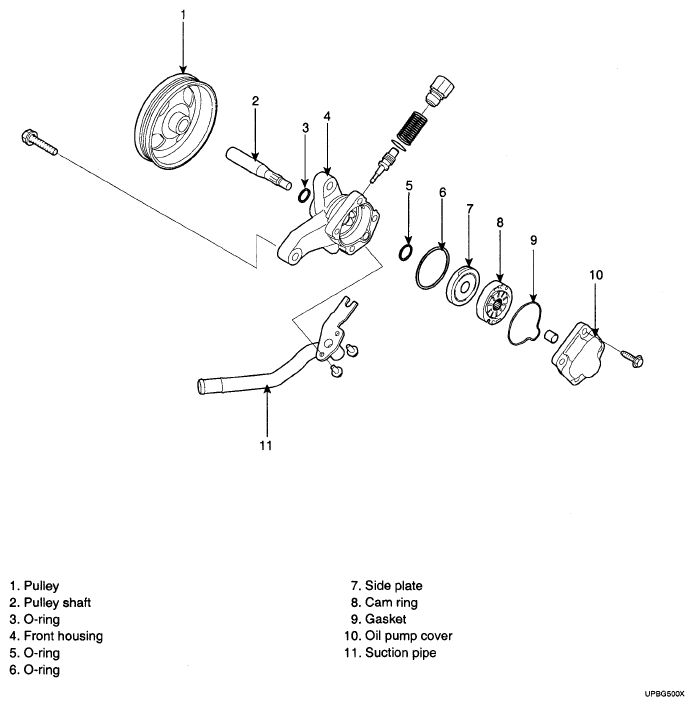

Fig 1: Identifying Power Steering Oil Pump Components

G04880602

Courtesy of HYUNDAI MOTOR CO.
