Stop Lamp Switch Replacement (Recall 110) (RC 110)

Entourage (EP), Genesis Coupe (BK), Genesis Sedan (BH), and Santa Fe (CMA) ONLY

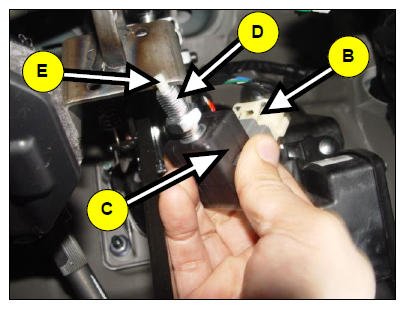

1. Disconnect the stop lamp switch connector (B).

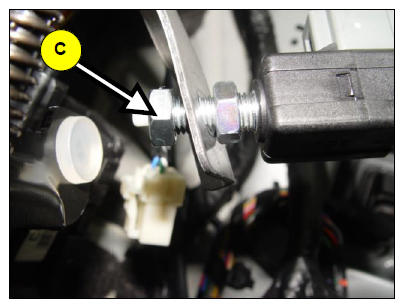

2. Connect the new stop lamp switch (C) with the connector (B).

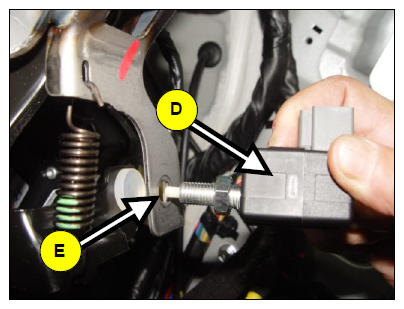

3. Ground the threaded part (D) of the new stop lamp switch to a near chassis ground and confirm that the stop lamp switch operates normally by depressing and releasing the plunger (E).
   NOTE: It might be necessary to clean the chassis ground to ensure that the threaded part of the new stop lamp switch is grounded properly.

   Depressing the plunger, the brake lights will turn off. Releasing the plunger, the brake lights will turn on.

   If the stop lamp switch does not operate normally, use the alternative part as shown in the table below.

   PARTS INFORMATION



   Model	Replacement Part		Alternative Part
   	Part No.	Connector Color	Part No.	Connector Color
   Genesis Coupe, Genesis Sedan, Santa Fe	93810-3KR0AQQH	Gray	93810-3KR0BQQH	Blue
   	93810-3KR0BQQH	Blue	93810-3KR0AQQH	Gray
   Entourage	93810-3KRWBQQH	Blue	93810-3KRWAQQH	Gray

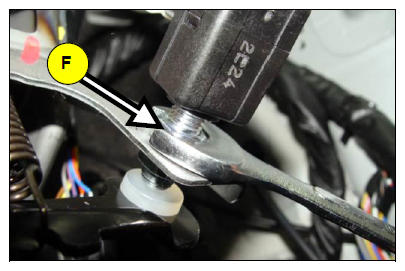

4. Loosen the upper mounting nut (F) of the current stop lamp switch.

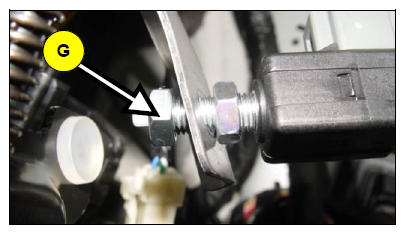

5. Remove the lower mounting nut (G) of the current stop lamp switch.

   Apply 5.8 ~ 7.2 lb-ft (0.8 ~ 1.0 kgf.m, 7.8 ~ 9.8 Nm) torque to the lower mounting nut.

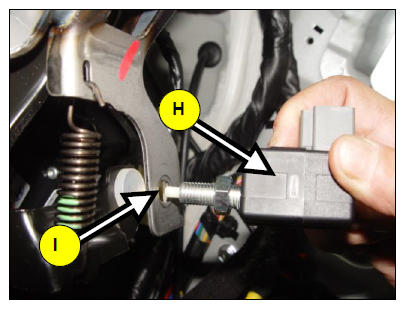

6. Remove the stop lamp switch assembly (H), and install the new stop lamp switch in reverse order of removal.
   CAUTION: Ensure the correct stop lamp switch is installed in the vehicle. Some vehicle functions may not operate as designed if the incorrect part is used.
   NOTE: It might be necessary to clean the area of the bracket around the opening (I) to ensure that the threaded part and mounting nuts of the new stop lamp switch are grounded properly.
   NOTE:

   • Entourage (EP):

     Install the ground wire according to the procedures "INSTALLATION OF GROUND WIRE FOR ENTOURAGE (EP) ". After installation of the ground wire, complete the stop lamp switch installation from step  7.

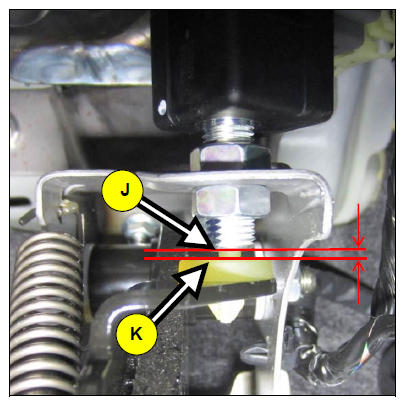

7. Without the brake pedal applied, adjust the gap between the end of the metal threaded housing of the stop lamp switch (J) and the stop lamp switch stopper (K).

   Gap Specification:

   1.0 ~ 2.0 mm (0.04 ~ 0.08 in)

8. Tighten the upper and lower mounting nuts.

   Lower mounting nut torque specification:

   5.8 ~ 7.2 lb-ft (0.8 ~ 1.0 kgf.m, 7.8 ~ 9.8 Nm)

9. Recheck the gap as described in step  7.
10. Verify that the rear brake lamps operate normally when applying the brake pedal.

Accent (MC), Azera (TG), Elantra Sedan (HD), Elantra Touring (FD), Sonata (NFA), Tiburon (GK), Tucson (JM and LM), and Veracruz (EN) ONLY

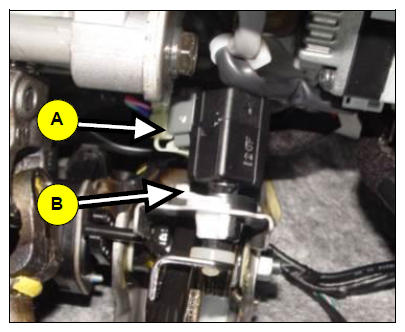

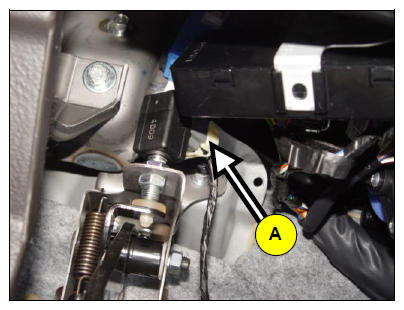

1. Disconnect the stop lamp switch connector (A).

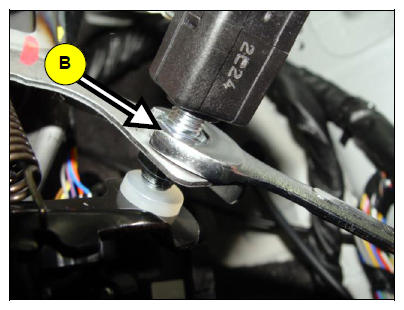

2. Loosen the upper mounting nut (B).
3. Remove the lower mounting nut (C).
4. Remove the stop lamp switch assembly (D), and install the replacement stop lamp switch in reverse order of removal.
   CAUTION: Ensure the correct stop lamp switch is installed in the vehicle. Some vehicle functions may not operate as designed if the incorrect part is used.

For non  cruise control equipped vehicles, it is slightly difficult to install the superseded switch due to space limitation.

The following tips will assist with the installation:

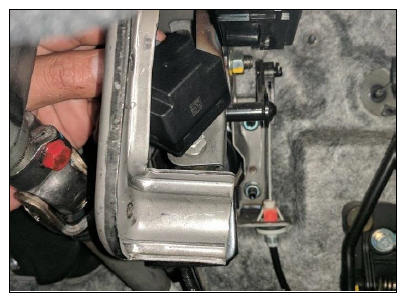

1. Grab the stop lamp switch by the connector side with the switch facing downward and place hand behind the steering column.

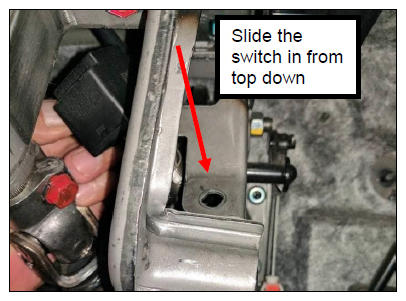

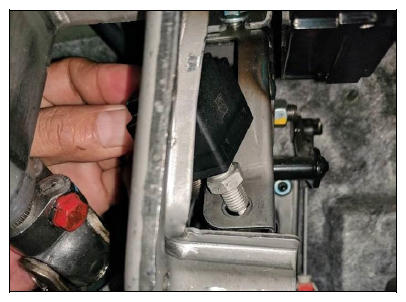

2. Slide the switch from top to downward and place the switch into the mounting bracket port.
3. Without the brake pedal applied, adjust the gap between the end of the metal threaded housing of the stop lamp switch (F) and the stop lamp switch stopper (G).

   Gap Specification:

   1.0 ~ 2.0 mm (0.04 ~ 0.08 in)

4. Tighten the upper and lower mounting nuts.

   Lower mounting nut torque specification:

   5.8 ~ 7.2 lb-ft (0.8 ~ 1.0 kgf.m, 7.8 ~ 9.8 Nm)

5. Recheck the gap as described in step  3.
6. Verify that the rear brake lamps operate normally when applying the brake pedal.

Installation of ground wire for Veracruz (EN) with adjustable pedals

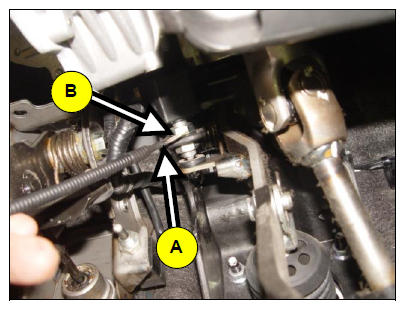

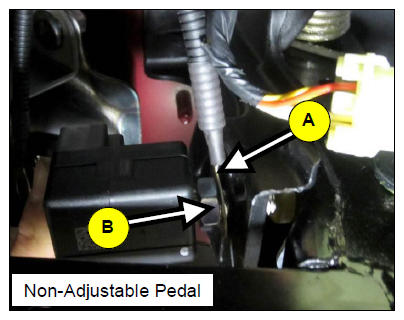

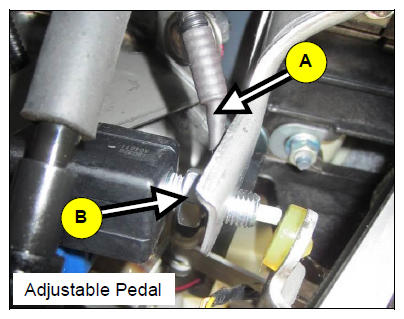

1. Connect one end of the ground wire (A) to the bottom of the upper mounting nut (B).
2. Route the ground wire (C) as shown.
   CAUTION: Make sure that the ground wire does not interfere with the brake and accelerator pedals.

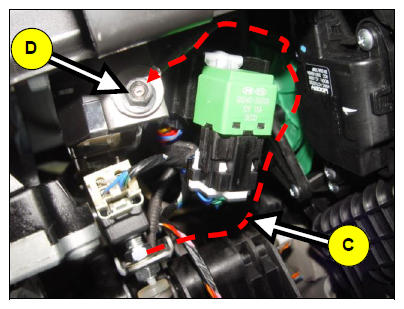

3. Remove the nut (D) on the bracket located above the stop lamp switch and then connect the other end of the ground wire.

   Nut torque specification:

   3.6 ~ 4.3 lb-ft (0.5 ~ 0.6 kgf.m, 4.9 ~ 5.9 Nm)

4. Return to step  3 to complete the stop lamp switch installation.

Installation of ground wire for Elantra Touring (FD)

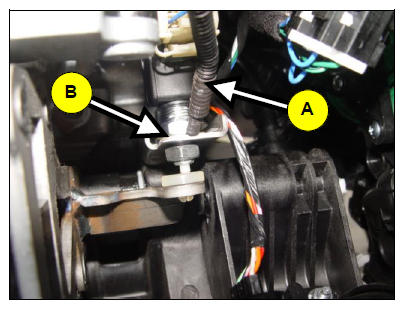

1. Connect one end of the ground wire (A) to the bottom of the upper mounting nut (B).

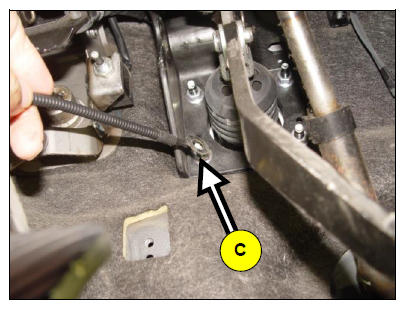

2. Remove the nut (C) located at the brake pedal mounting bracket and then connect the other end of the ground wire.

   Nut torque specification:

   3.6 ~ 4.3 lb-ft (0.5 ~ 0.6 kgf.m, 4.9 ~ 5.9 Nm)

   CAUTION: Make sure that the ground wire does not interfere with the brake and accelerator pedals.
3. Return to step  3 to complete the stop lamp switch installation.

Installation of ground wire for Entourage (EP)

1. Connect one end of the ground wire (A) to the bottom of the upper mounting nut (B).

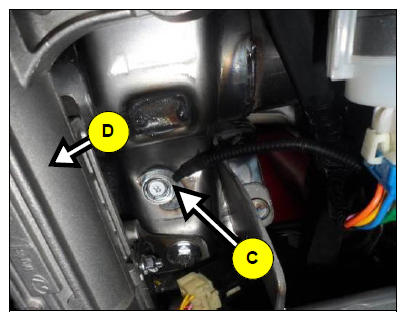

2. Remove the bolt (C) on the cowl cross bar near the steering column assembly (D) and connect the other end of the ground wire.

   Bolt torque specification:

   3.6 ~ 4.3 lb-ft (0.5 ~ 0.6 kgf.m, 4.9 ~ 5.9 Nm)

   CAUTION: Make sure that the ground wire does not interfere with the brake and accelerator pedals.
3. Return to step  7 to complete the stop lamp switch installation.

Entourage (EP) With Adjustable Pedals ONLY

1. Disconnect the battery negative (-) terminal.

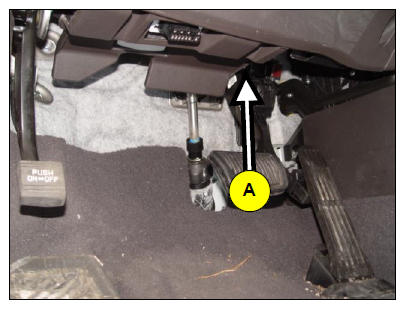

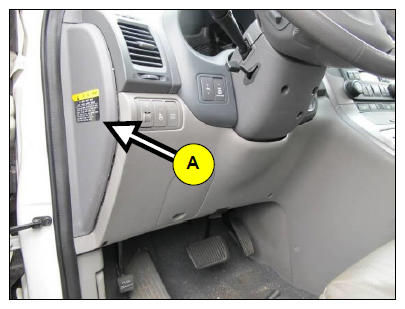

2. Remove the left hand side cover (A).
   NOTE: If additional information is needed for removal and reinstallation of interior trim, refer to the Body Interior sections in the Shop Manual.

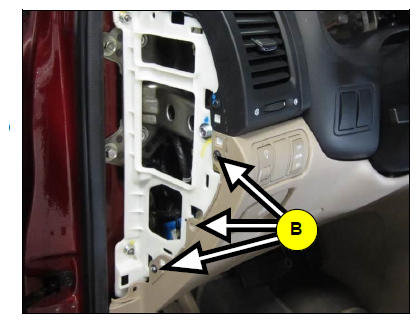

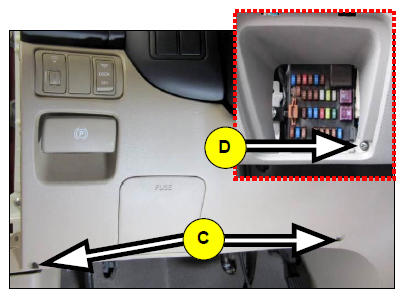

3. Remove three screws (B) from the side of the lower panel and two bolts (C). Uncover the fuse panel and remove the screw (D).

   Screw torque specification:

   1.4 ~ 2.2 lb-ft (0.2 ~ 0.3 kgf.m, 2.0 ~ 2.9 Nm)

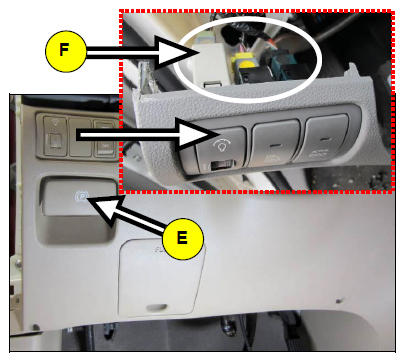

4. Carefully remove the lower panel. Slide the parking brake handle (E) off of the panel and then disconnect the switches (F). Set aside the lower panel.

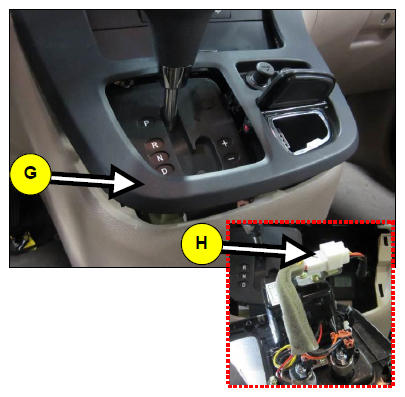

5. Using a plastic trim tool, carefully pry up and remove the upper cover (G) surrounding the shift lever. Disconnect the cigarette lighter and power outlet (H). Set aside the cover.

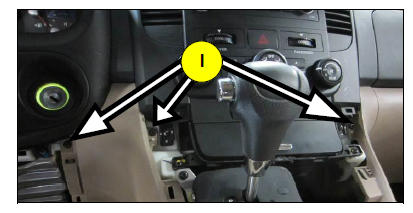

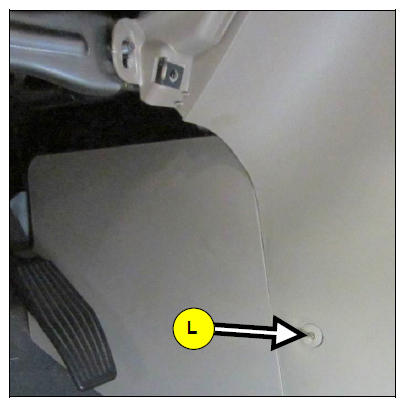

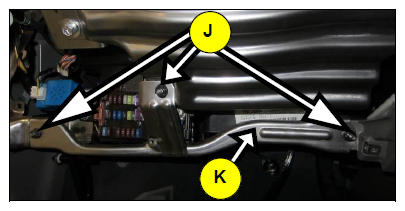

6. Remove the upper thee screws (I) of the center floor console, the three nuts (J) of the lower brace (K) and lower left clip (L), holding the center floor console. Remove the lower brace.

   Screw (I) torque specification:

   1.4 ~ 2.2 lb-ft (0.2 ~ 0.3 kgf.m, 2.0 ~ 2.9 Nm)

   Nut (J) torque specification:

   3.6 ~ 4.3 lb-ft (0.5 ~ 0.6 kgf.m, 4.9 ~ 5.9 Nm)

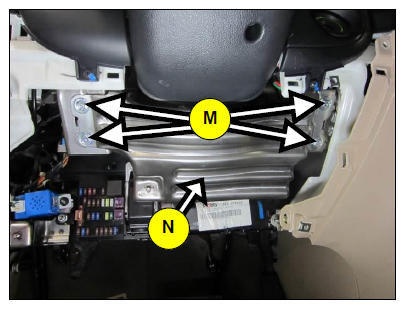

7. Move the center floor console to allow access to the two bolts on the right. Remove all four bolts (M). Remove the metal panel (N).

   Bolt torque specification:

   3.6 ~ 4.3 lb-ft (0.5 ~ 0.6 kgf.m, 4.9 ~ 5.9 Nm

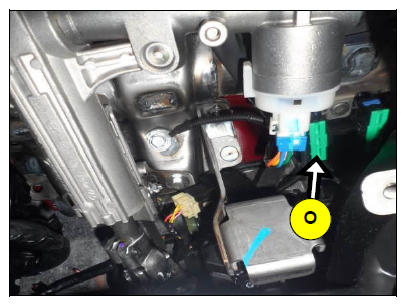

8. Slide the multi-connector (O) off its mounting bracket by gently pulling down. Do not pull off the multi-connector cap.

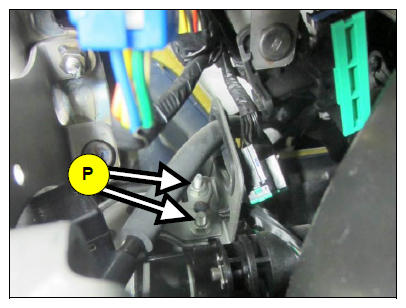

9. Using a universal joint on a ratchet, remove the two nuts (P) to loosen the stop lamp switch bracket. This will allow access to the stop lamp switch.

   Nut torque specification:

   3.6 ~ 4.3 lb-ft (0.5 ~ 0.6 kgf.m, 4.9 ~ 5.9 Nm)

10. Return to page 9 and begin with step  1 to install the stop lamp switch. After installing the new stop lamp switch, reassemble the trim pieces in the reverse order of removal.

Sonata (YFA) ONLY

1. Disconnect the stop lamp switch connector (A) and slide out the locking tab (B).

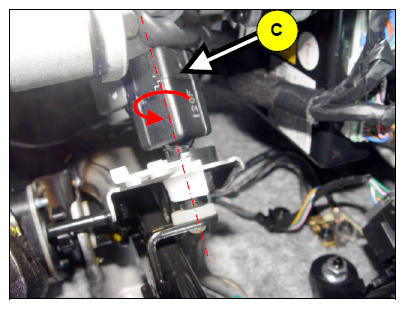

2. Rotate the stop lamp switch (C) clockwise to unlock and remove it.

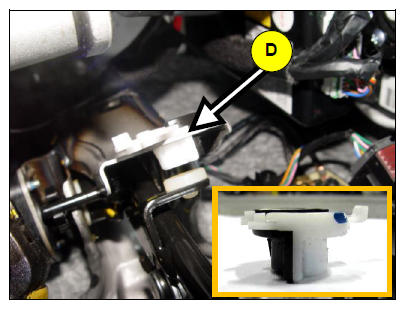

3. Pry out the plastic locking mount (D) with a flathead screw driver and discard.
4. Retreive the replacement switch. Note that the two flanged nuts that are not identical.
   CAUTION: Ensure the correct stop lamp switch is installed in the vehicle. Some vehicle functions may not operate as designed if the incorrect part is used.

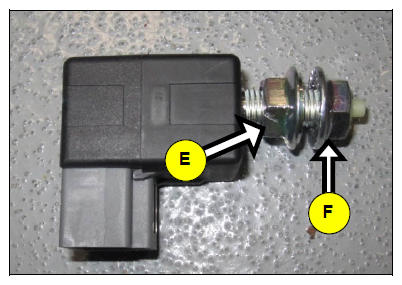

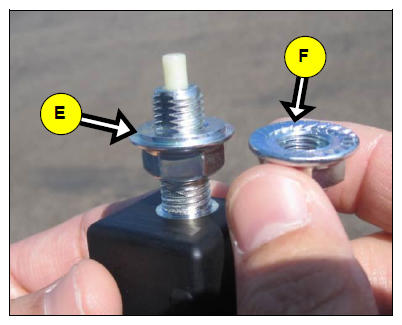

   The inside nut (E) (closer to the stop lamp switch body) has a small lip that protrudes out from the flange. This lip will fit inside the mounting bracket to securely locate the switch's position.

   The outside nut (F) (farther from the switch body) has a serrated edge.

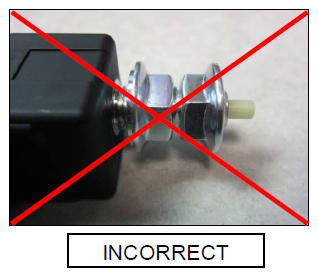

   When installing the stop lamp switch, both the order and orientation of the nuts are important:

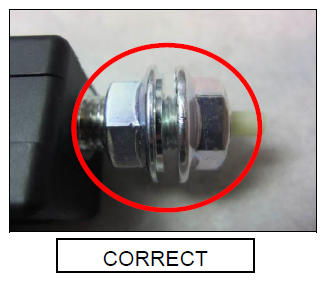

   IMPORTANT: When installing the replacement part, make sure nut (E) is placed closer to the switch body, and that nut (F) is placed farther.
   Also, be sure that the flanges are faced towards each other, not away from each other.

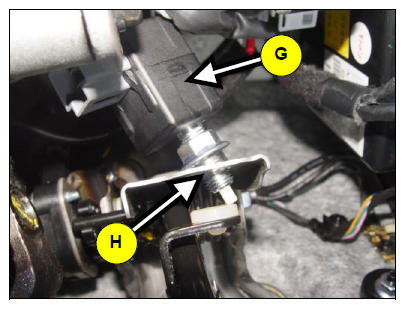

5. Locate the replacement stop lamp switch (G) and fasten the upper and lower mounting flange nuts.
   IMPORTANT: Make sure the inside nut's lip is fully seated into the mounting bracket, so that the nut's flange is flush with the bracket.
   NOTE: It might be necessary to clean the area of the bracket around the opening (H) to ensure that the threaded part and mounting nuts of the new stop lamp switch are grounded properly.

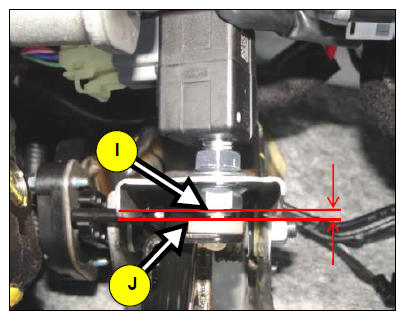

6. Without the brake pedal applied, adjust the gap between the end of the metal threaded housing of the stop lamp switch (I) and the stop lamp switch stopper (J).

   Gap Specification:

   1.0 ~ 2.0 mm (0.04 ~ 0.08 in)

7. Tighten the upper and lower mounting flange nuts.

   Lower mounting flange nut torque specification:

   5.8 ~ 7.2 lb-ft (0.8 ~ 1.0 kgf.m, 7.8 ~ 9.8 Nm)

8. Recheck the gap as described in step  6.
9. Verify that the rear brake lamps operate normally when applying the brake pedal.
