Front Hub / Knuckle: Components

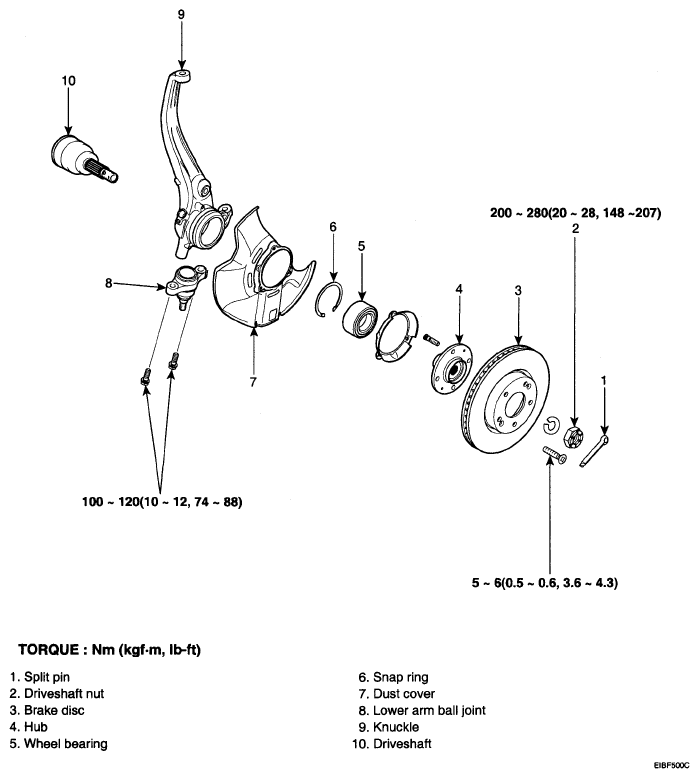

Fig 1: Front Hub / Knuckle Replacement Components With Torque Specifications
G04880306Courtesy of HYUNDAI MOTOR CO.
