Trunk Lid Lift Replacement
Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).

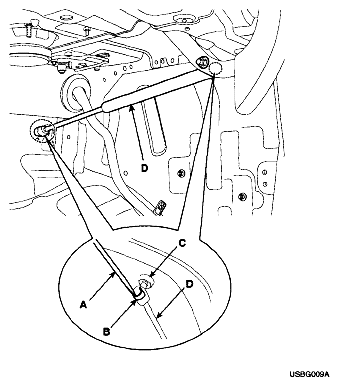

Fig 1: Identifying Socket Clips, Lifter And Bracket
Courtesy of HYUNDAI MOTOR CO.
Push the socket of the lifter into the bracket for installation.
