Chart 1

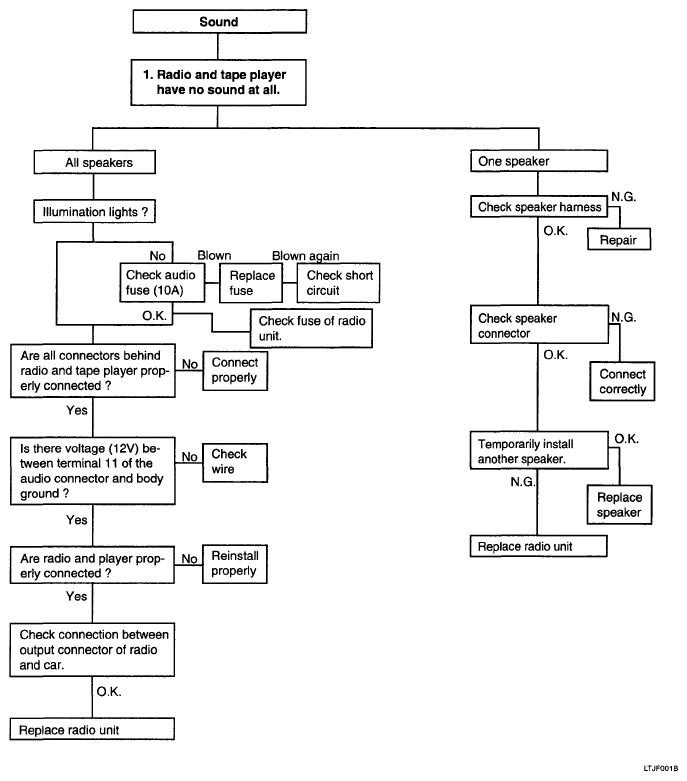

Fig 1: Symptom Troubleshooting Flow Chart 1 (1 Of 2)
G04802866Courtesy of HYUNDAI MOTOR CO.

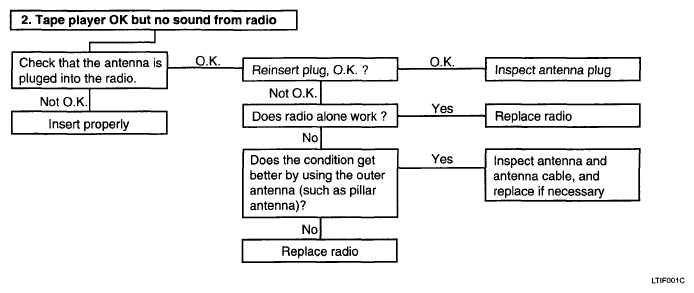

Fig 2: Symptom Troubleshooting Flow Chart 1 (2 Of 2)
G04802867Courtesy of HYUNDAI MOTOR CO.
